Spackle In J-Frame Bar Grille

Architectural Grille offers the original Spackle In J-Frame Bar Grille with a variety of core styles depending on desired deflection and diffusion for any modern space. It is ideal for ceiling and wall applications where a flush, borderless installation is required to achieve a clean line and minimalist design - "less is more" with this premium quality product for your next residential or commercial project.

Manufactured using post-consumer 94% recycled aluminum, the Spackle In J-Frame Bar Grille can help you achieve LEED™ credits and certification for your next “green” project.

Two (2) Methods of Fastening are available:

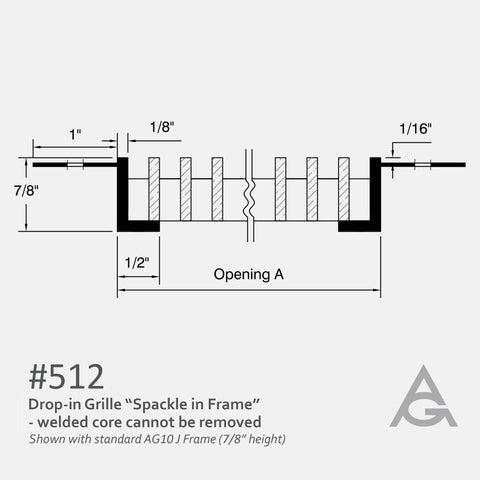

• #512: Drop-in Grille "Spackle in Frame" - welded core cannot be removed

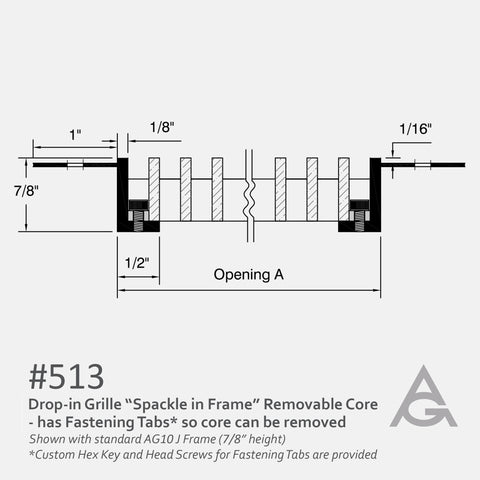

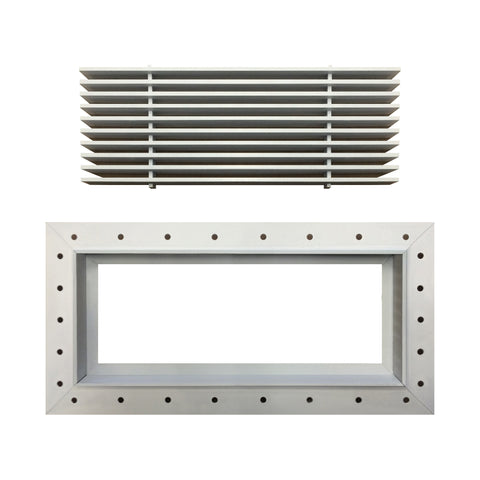

• #513: Drop-in Grille "Spackle in Frame" Removable Core with Fastening Tabs* (core can be removed)

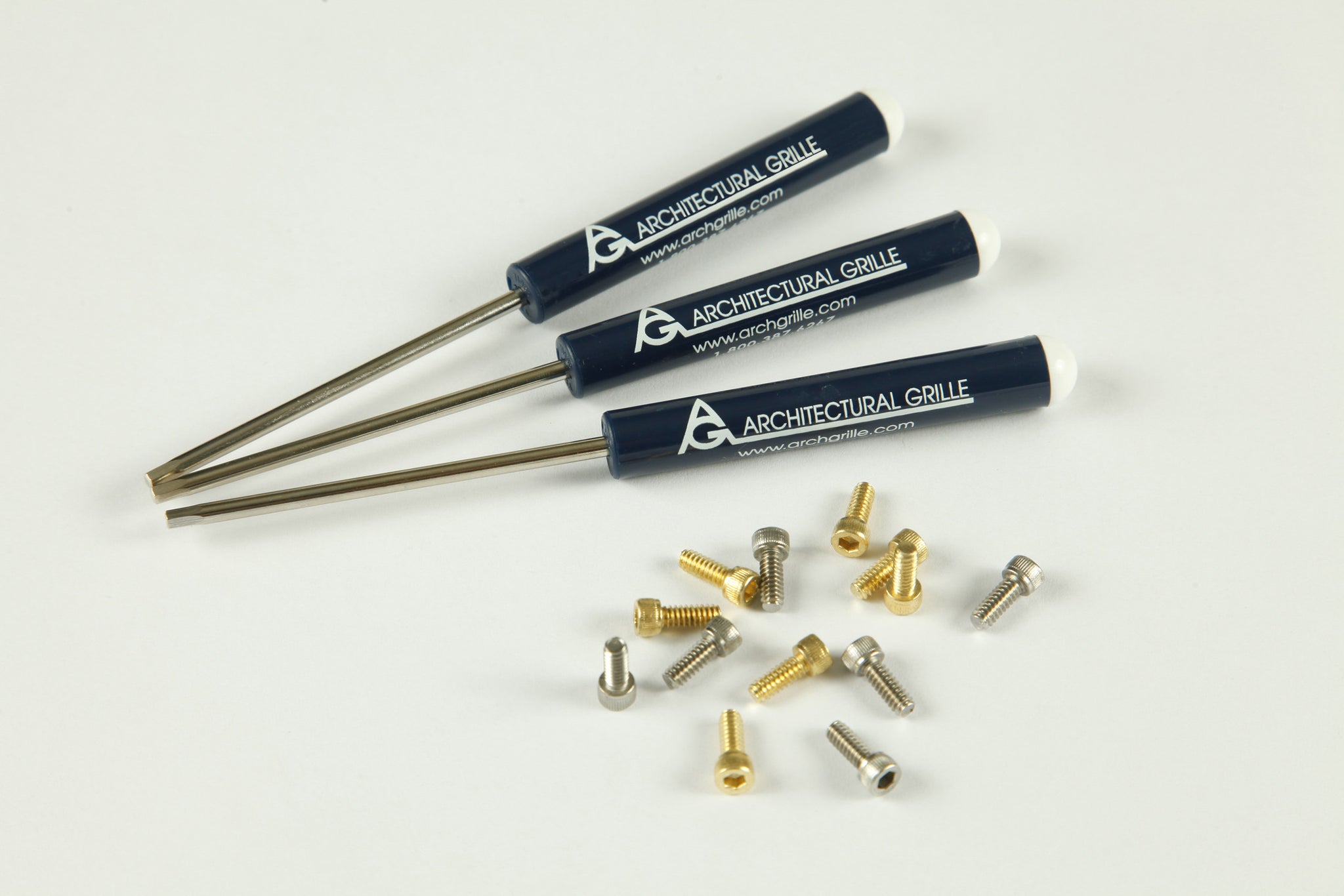

• *NOTE: Custom Hex Key and Head Screws for Fastening Tabs are provided with #513 option

The Spackle In J-Frame Bar Grille is available in a variety of materials and finishes, and can also be customized to your needs and project standards. Request a quote or buy online today - QUICK SHIP OPTION AVAILABLE!

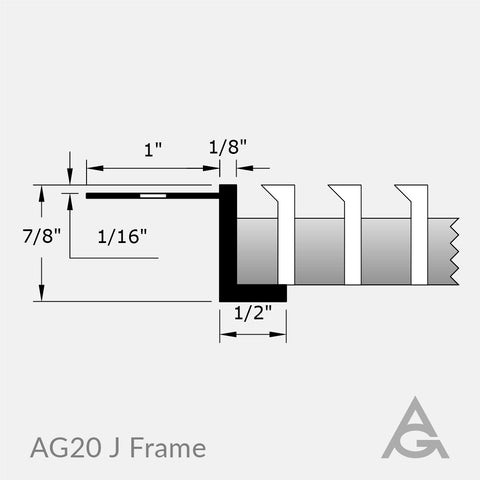

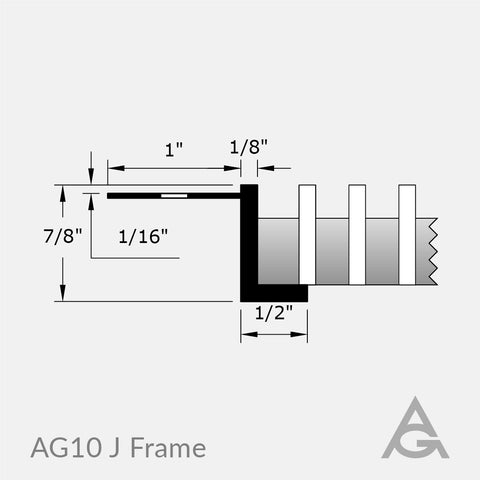

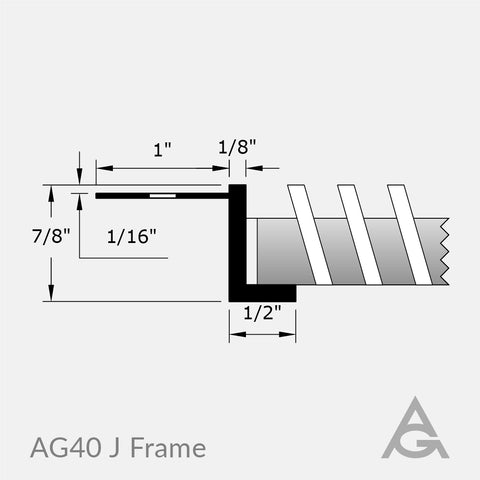

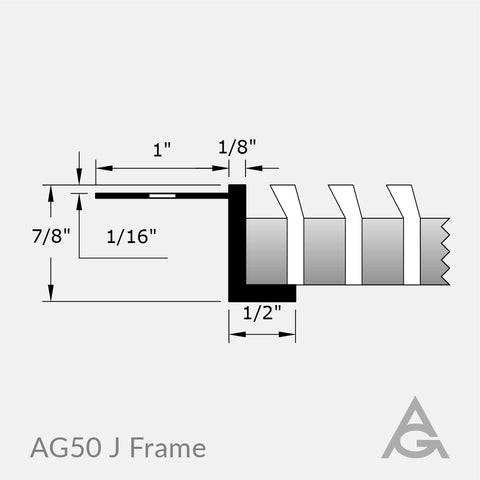

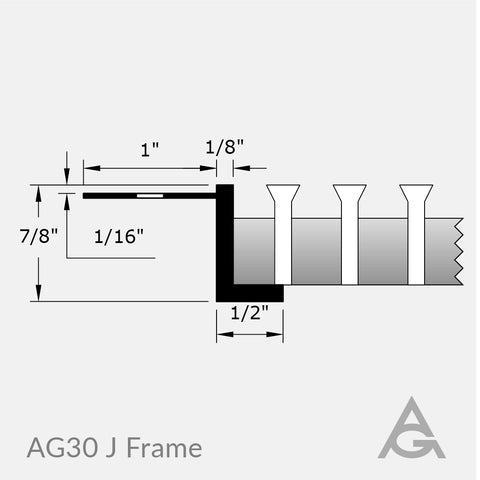

Spackle In J-Frame Bar Grille core styles include: AG10; AG20; AG30; AG40; AG50; AG60 (see thumbnails for individual cross-section profiles)

Standard Features:

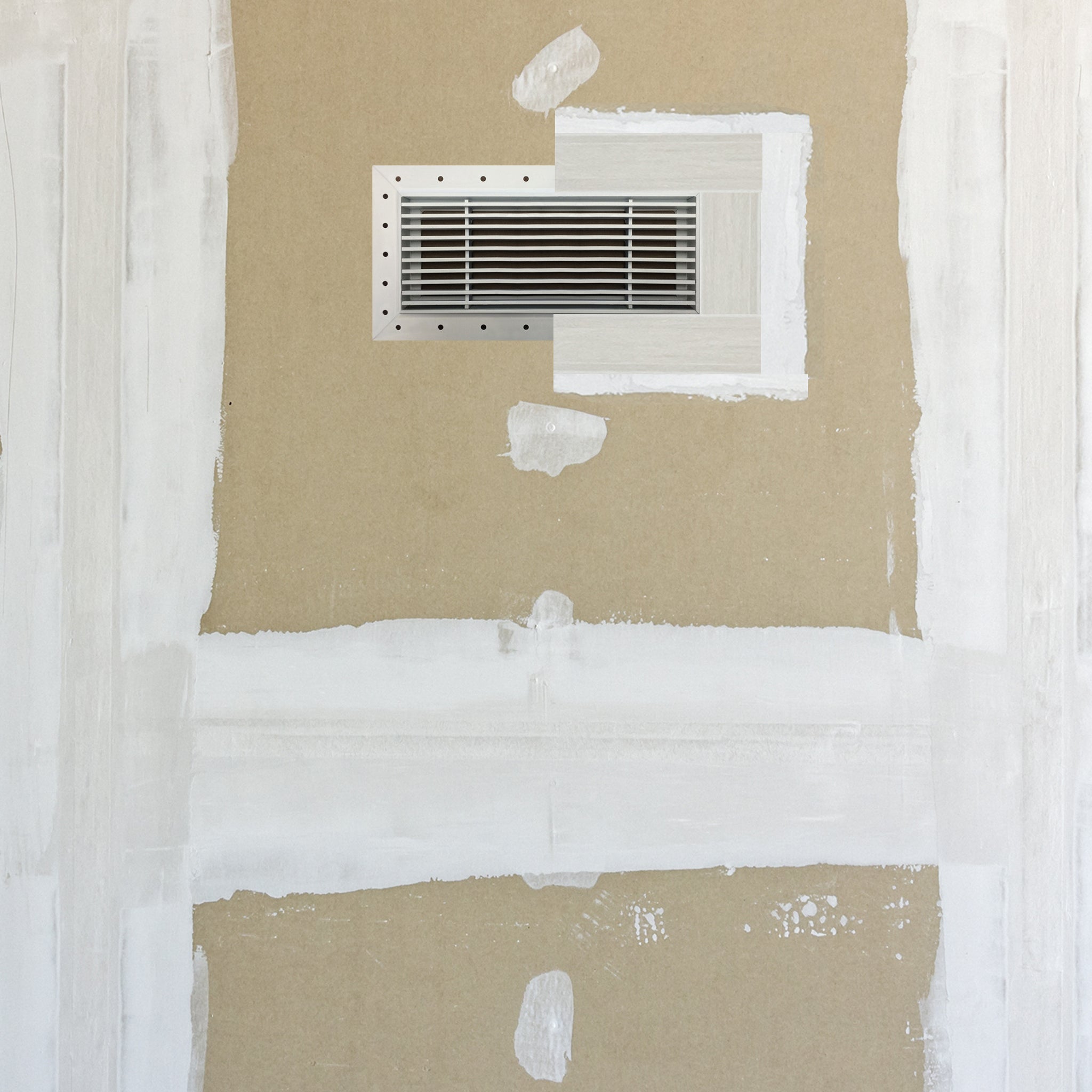

• Flush borderless installation for plaster and drywall applications
• Ideal for wall and/or ceiling applications
• Creates a smooth, seamless clean look
• Grille becomes part of the wall and/or ceiling

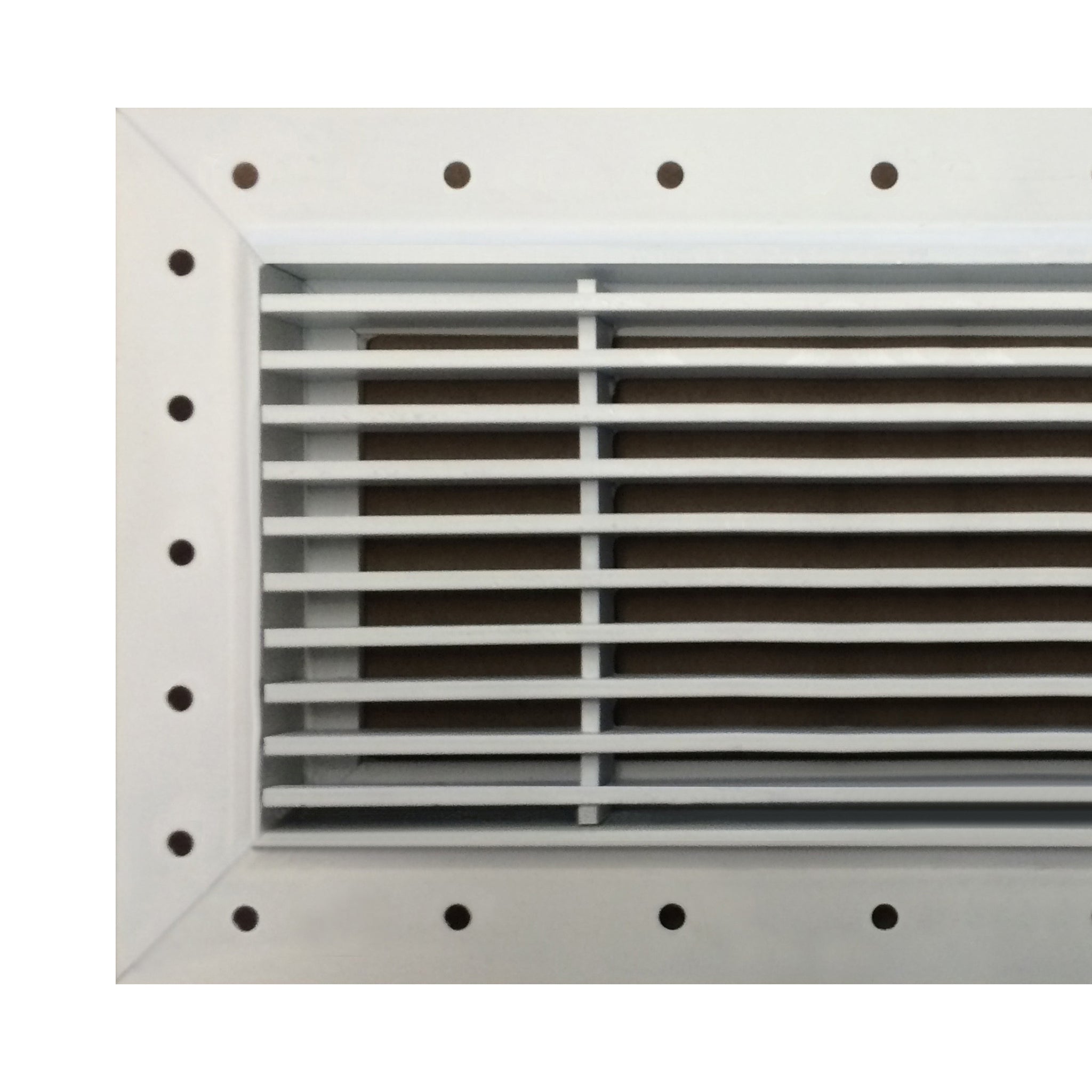

• Pre-punched fastening points provided for quick installation with standard drywall screws
• Mitered Corners available
• Custom Spacing between bars available

**NOT EXTRUDED

NOTE: Please be advised that Architectural Grille does not provide anodizing services onsite, as a result we cannot be responsible for additional lead time(s) incurred. If you would like to select a powder coat color similar to an anodized color we now have that option available - please ask your Estimator for further details.

Downloads:

Product Page PDF
#512 Aluminum	Cutsheet PDF	Installation PDF
#512 Aluminum	DWG Design File	SOLIDWORKS ZIP File
#512 Brass, Bronze or Stainless Steel	Cutsheet PDF	Installation PDF
#512 Brass, Bronze or Stainless Steel	DWG Design File	SOLIDWORKS ZIP File
#513 Aluminum	Cutsheet PDF	Installation PDF
#513 Aluminum	DWG Design File	SOLIDWORKS ZIP File
#513 Brass, Bronze or Stainless Steel	Cutsheet PDF	Installation PDF
#513 Brass, Bronze or Stainless Steel	DWG Design File	SOLIDWORKS ZIP File

Resources:

Fastening & Mounting Methods

Measuring Instructions

Finishes & Colors
