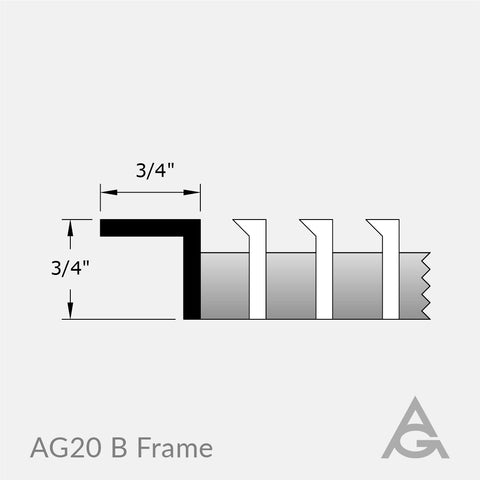

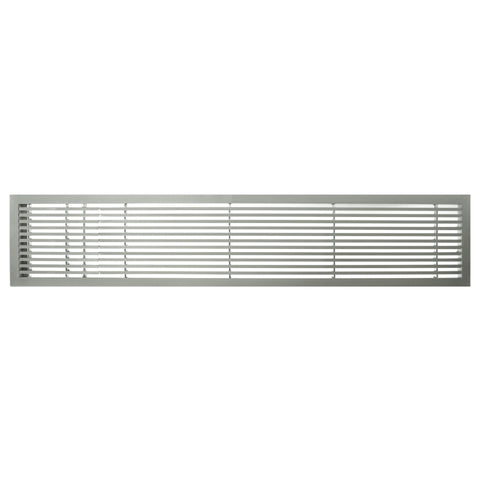

AG20 B Frame Bar Grille with Door

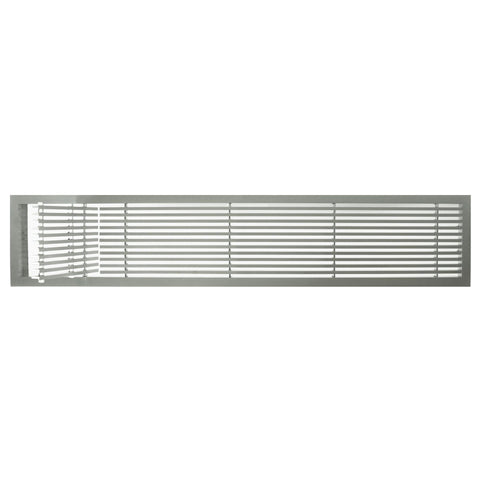

Manufactured using post-consumer 94% recycled aluminum with a brushed satin finish, and available with a left or right pivot access door, the AG20 B Frame Bar Grille with Door is ideal when you need access to an HVAC unit control panel, and need an increased angle of deflection to optimize air flow into any given residential or commercial space.

Material: Aluminum*

Finish: Satin

*post-consumer 94% recycled aluminum

Standard Features:

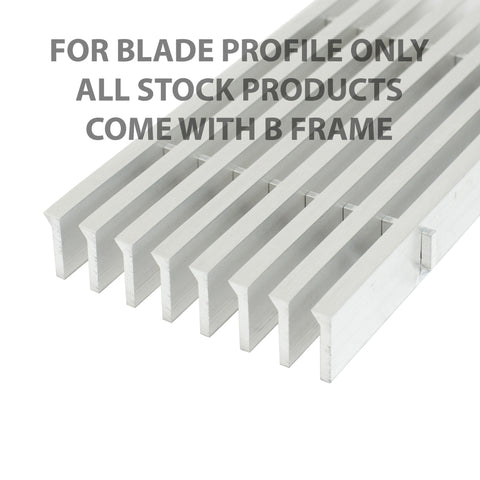

• 45° Deflection
• Weld-Lock constructed for maximum durability
• Pencil Proof: ¼” spacing between bars
• Sizes shown are inside measurements of stock grille, the actual opening should be 1/16" larger to ensure proper fit

Downloads:

Cutsheet PDF

Product Page PDF

DWG Design Files

Resources:

Fastening & Mounting Methods

Measuring Instructions
