216 Square On Diamond Perforated Grille

Regular price $0.00 USD
Sale price $0.00 USD Regular price

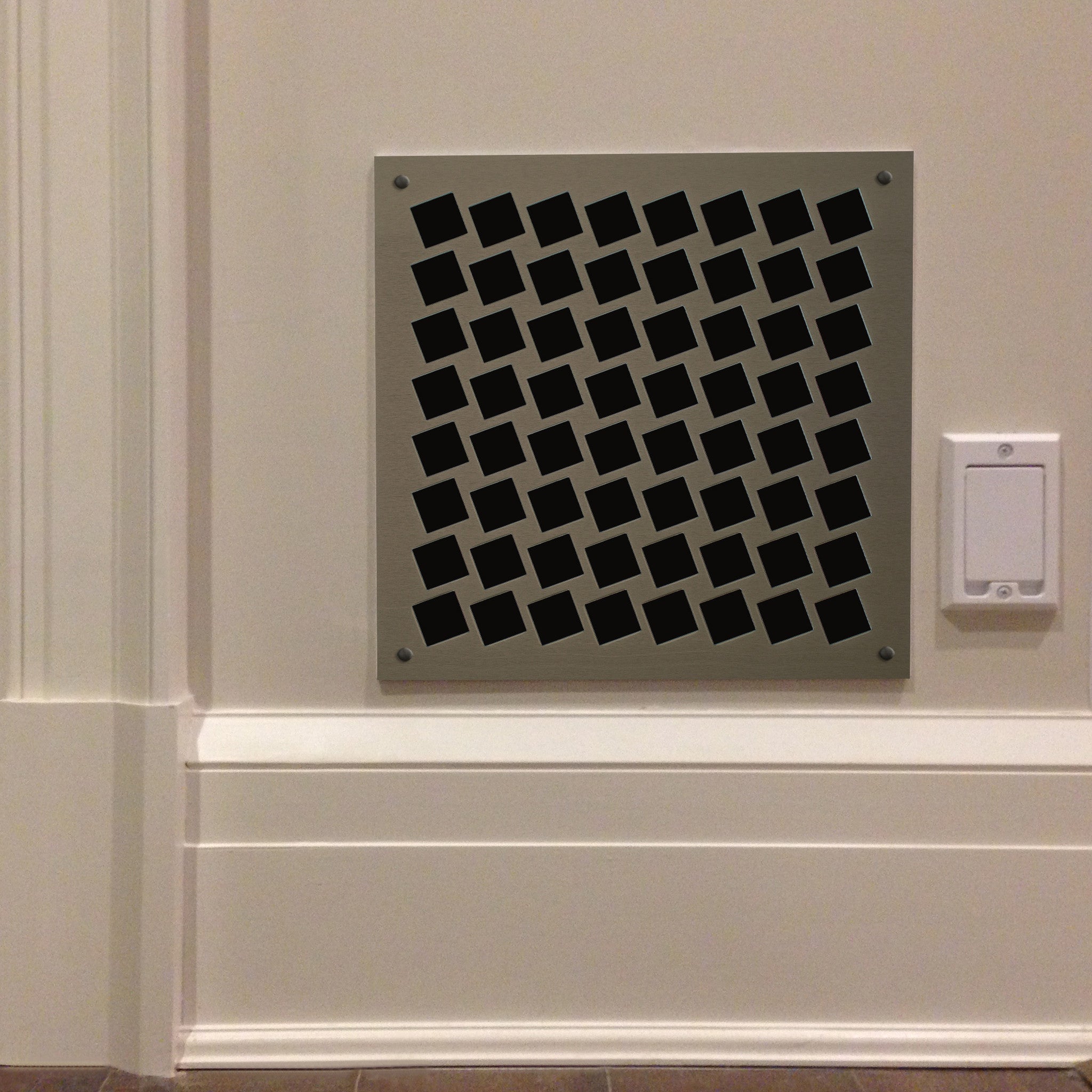

If you are looking for a modern decorative square perforation pattern with a contemporary diagonal inset design, the #216 Square on Diamond Perforated Grille is perfect for maximum open area ventilation and air flow.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern Dimensions:

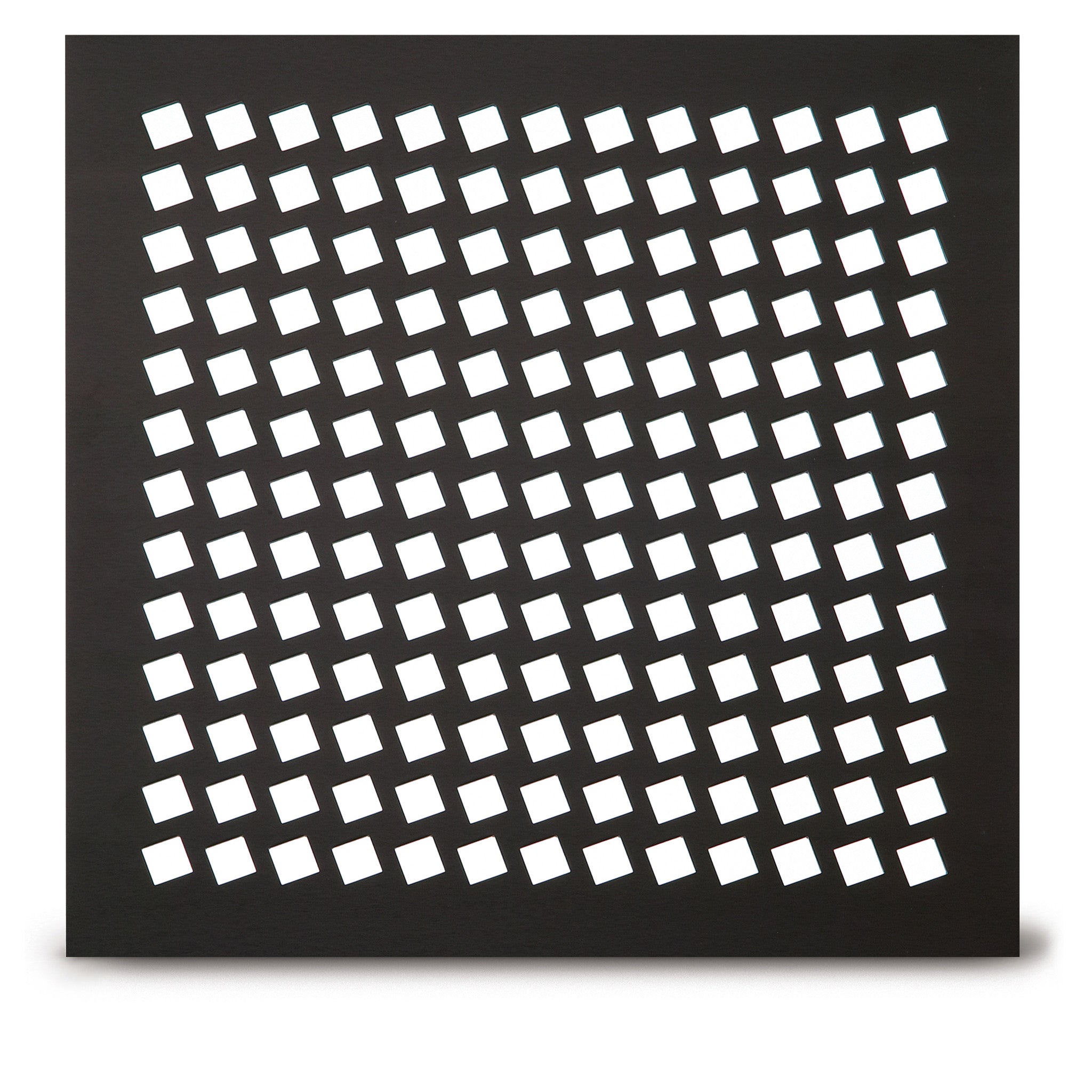

  • ½” pattern - 45% open area

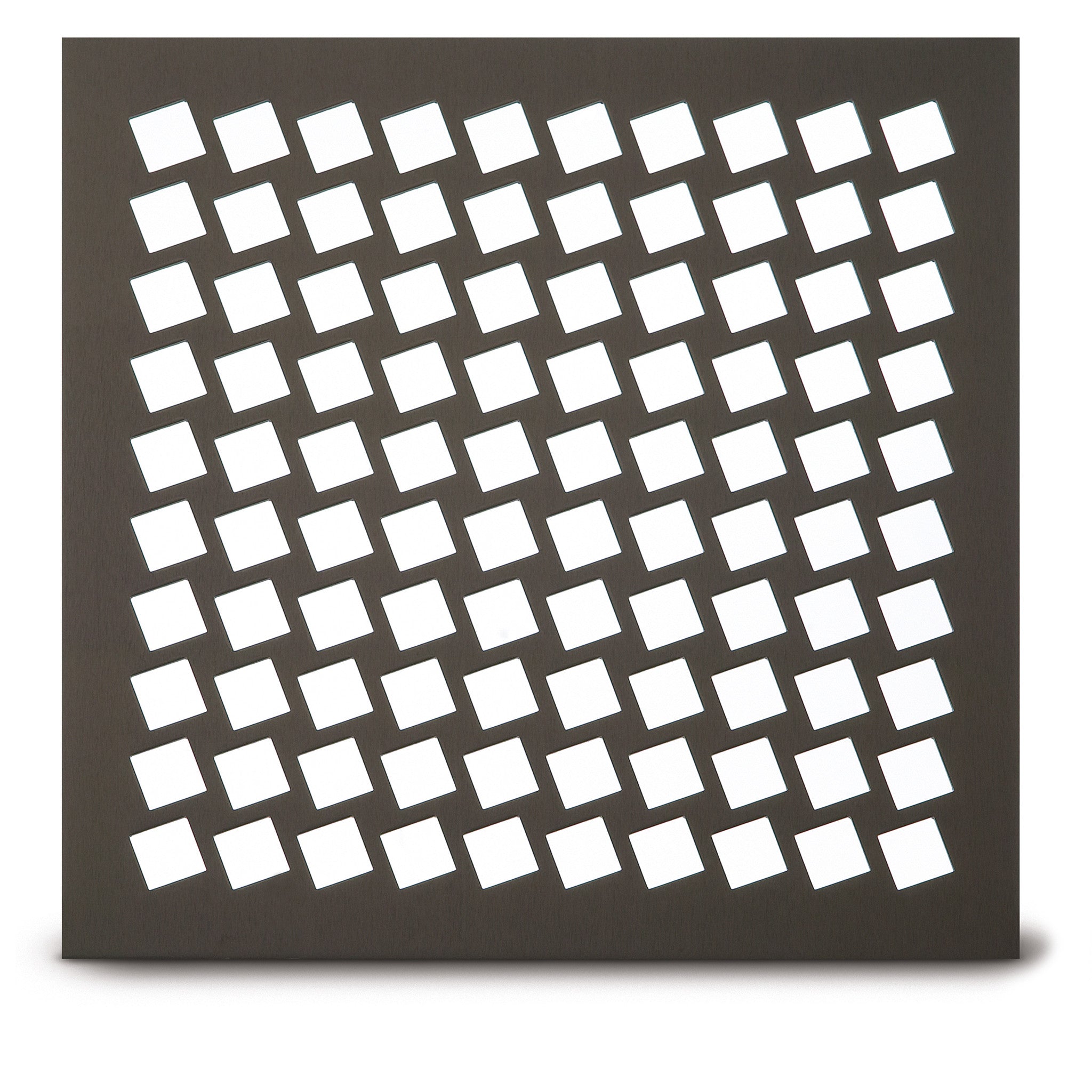

  • ¾” pattern - 56% open area

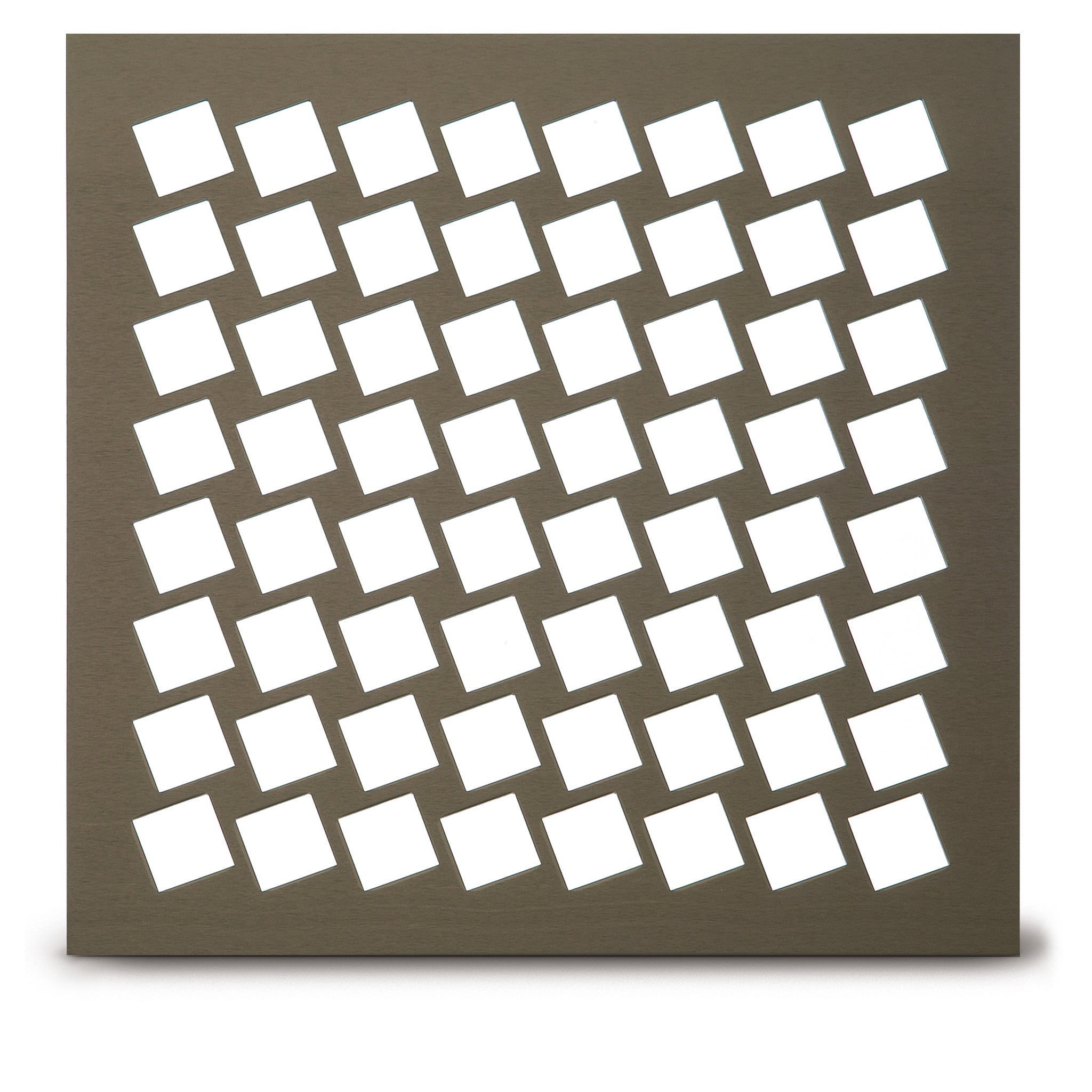

  • 1” pattern - 64% open area
Register / Login to Access Cutsheets and CAD Details

MATERIAL

PUNCHED THICKNESS* (min-max)

FINISH

Aluminum

1/16” – 1/8”

Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors

Brass

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Bronze

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Stainless Steel

1/16” – 14 GA

Satin, Mirror Polish

Steel

1/16” – 1/8”

Raw, Primed, Powder Coating Colors

*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAILS

Resources: For Fastening + Mounting Methods - refer to "Perforated Grilles"
