207 Shell Perforated Grille

Regular price $0.00 USD
Sale price $0.00 USD Regular price

The #207 Shell Perforated Grille features an ornamental shell shape that is staggered to take advance of varied directional air flow, with a range of open area options to suit your residential or commercial project.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern Dimensions:

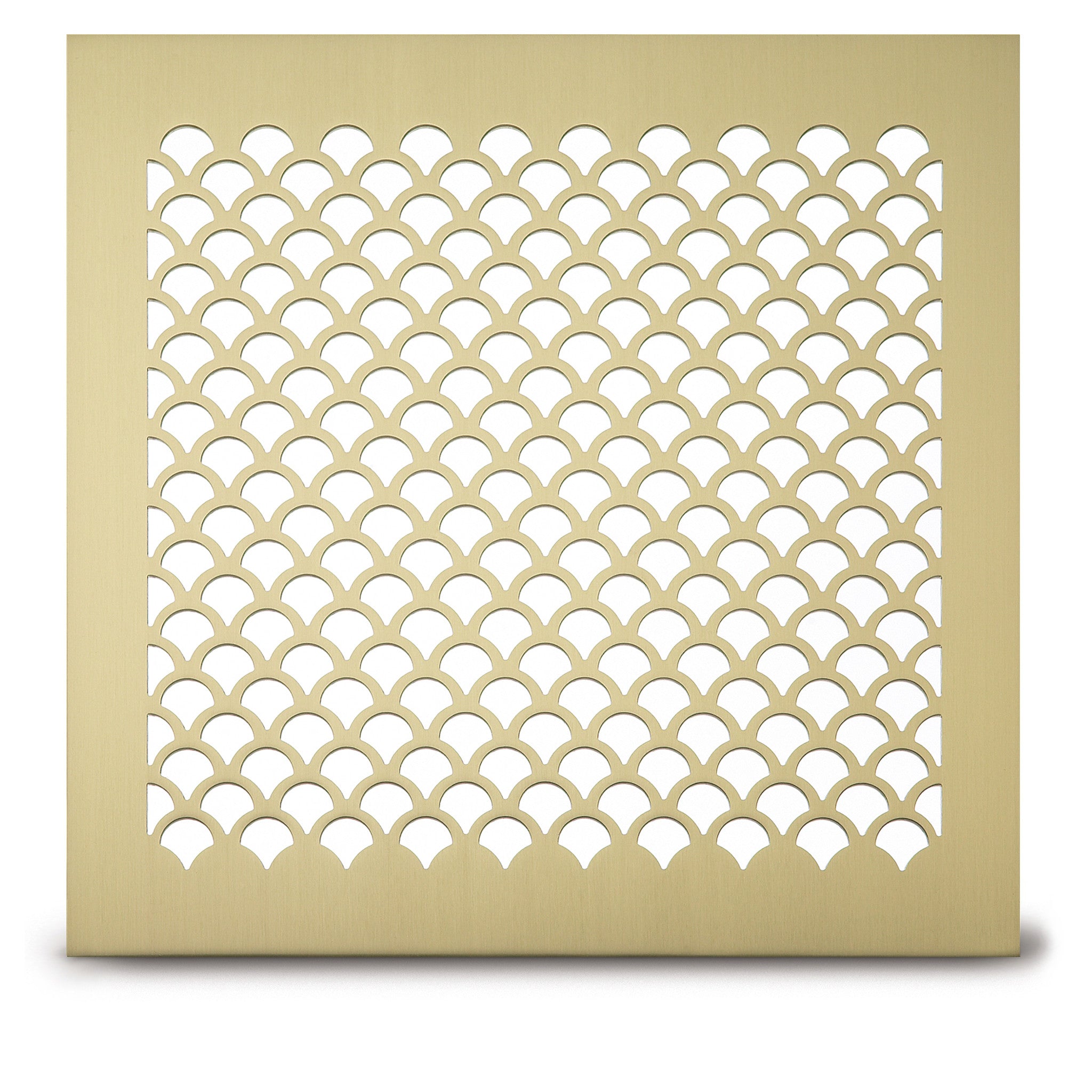

  • ⅝" pattern - 48% open area

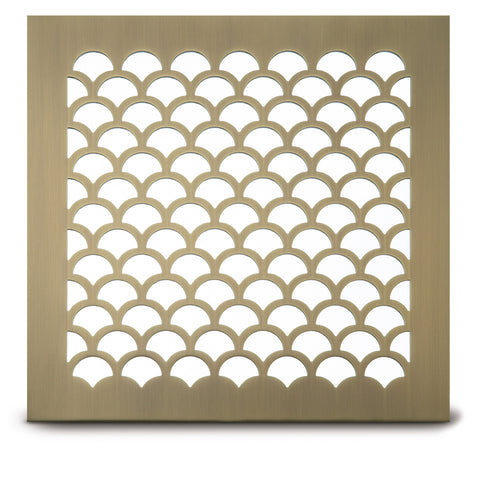

  • 1⅛” pattern - 56% open area

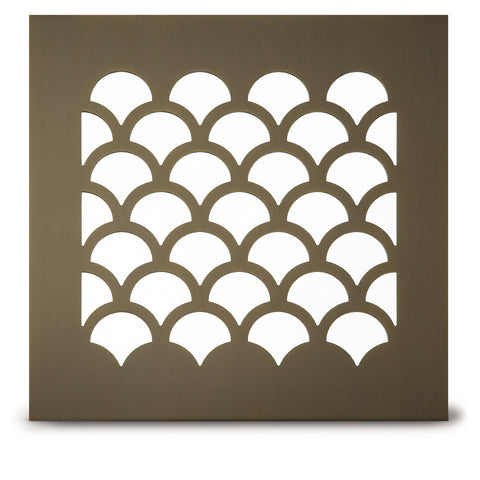

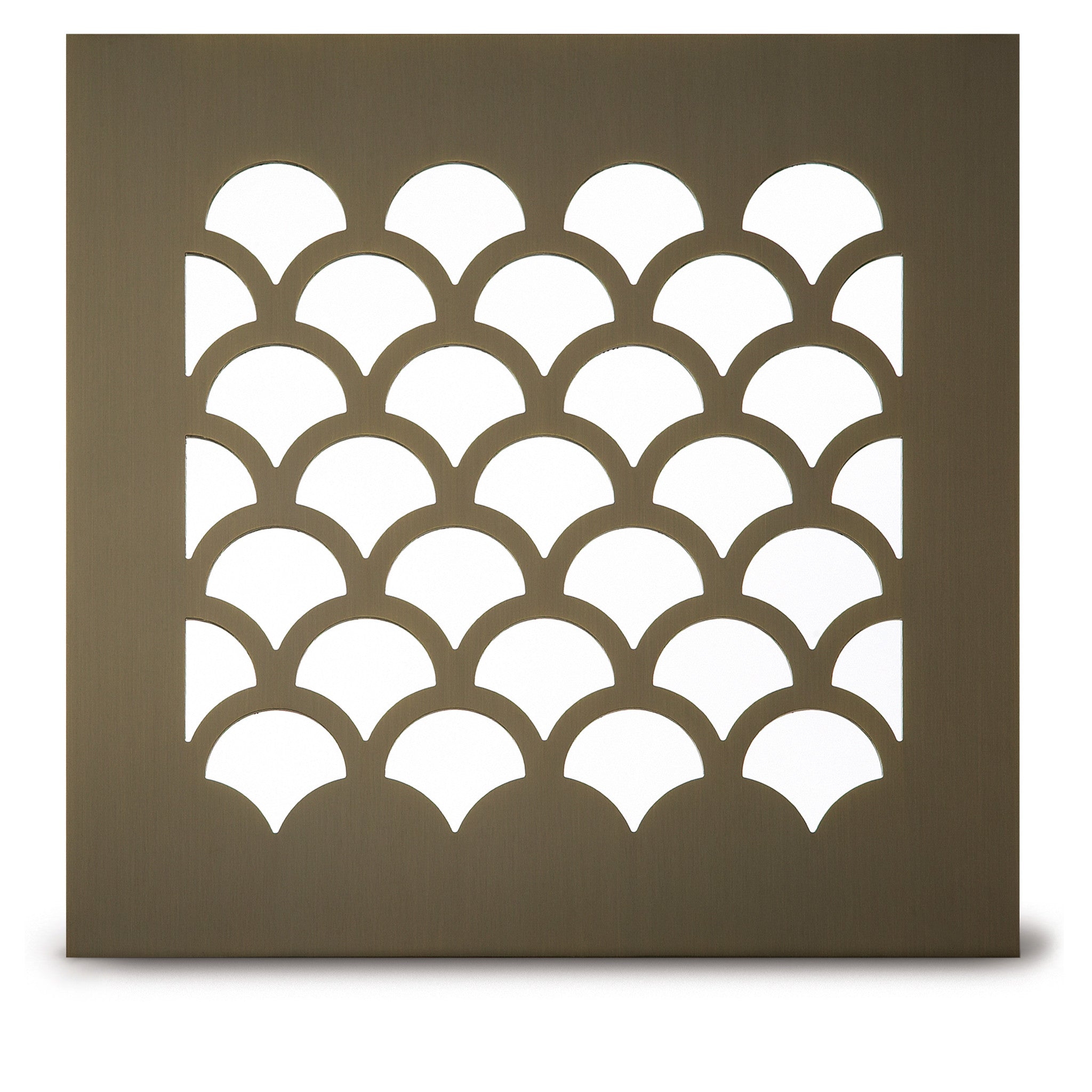

  • 1¾” pattern - 72% open area

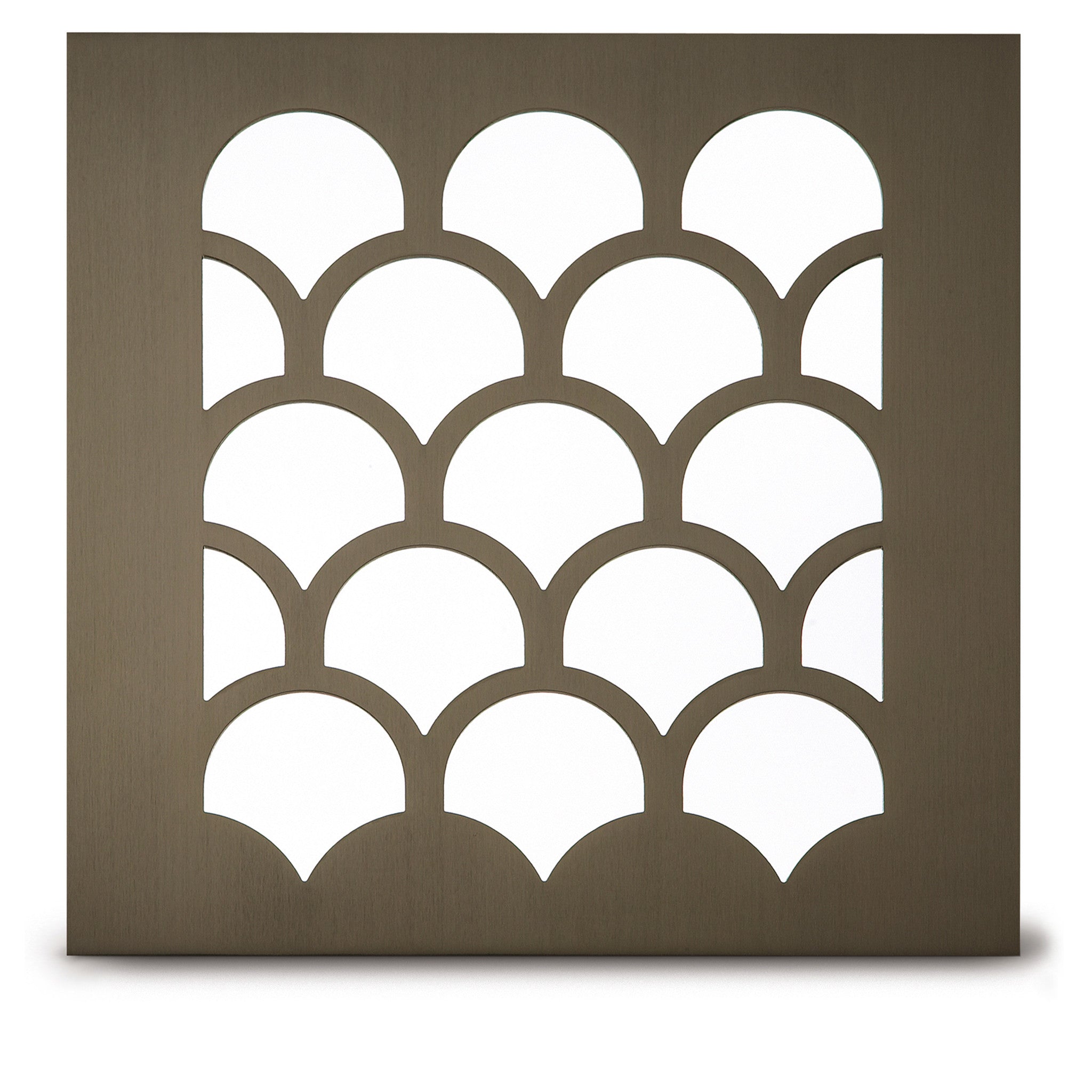

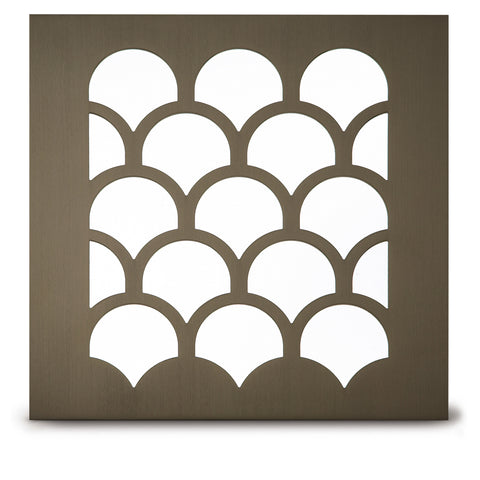

  • 2½” pattern - 84% open area

MATERIAL

PUNCHED THICKNESS*

 (min-max)

FINISH

Aluminum

1/16” – 1/8”

Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors

Brass

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Bronze

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Stainless Steel

1/16” – 14 GA

Satin, Mirror Polish

Steel

1/16” – 1/8”

Raw, Primed, Powder Coating Colors

*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAIL

Register / Login to Access Cutsheets and CAD Details

Resources: For Fastening + Mounting Methods - refer to "Perforated Grilles"
