AG50 Bar Grille


Pin It Houzz

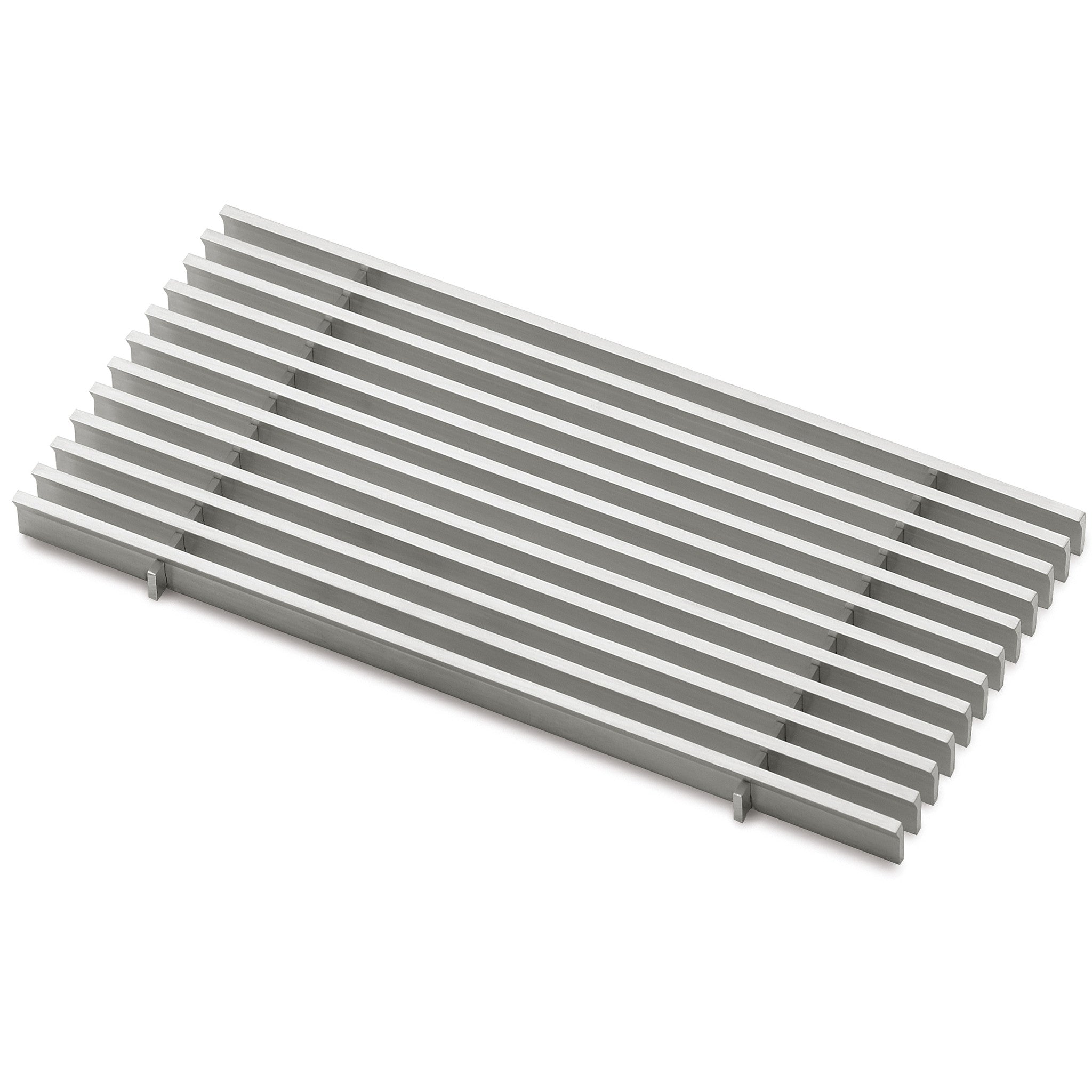

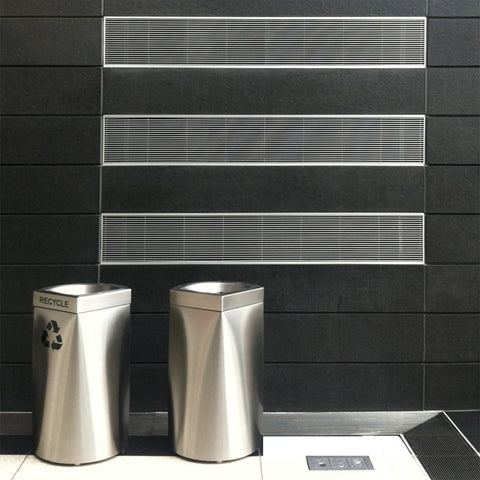

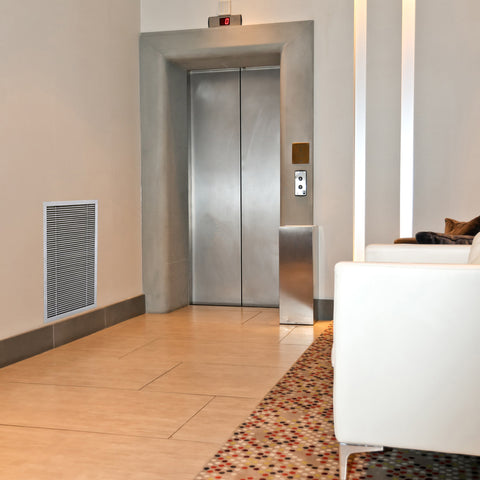

Using a 25° deflection, the AG50 Bar Grille provides an advanced precision linear product required for architectural excellence by uniting aesthetic styling, superior workmanship and effective air distribution. With fixed deflection bars, the AG50 Bar Grille can be used for floor, ceiling, wall, countertop and window sill applications, in both commercial and residential products.

The AG50 Bar Grille is available in a variety of materials and finishes, and can be customized to your needs and project standards. Request a quote.

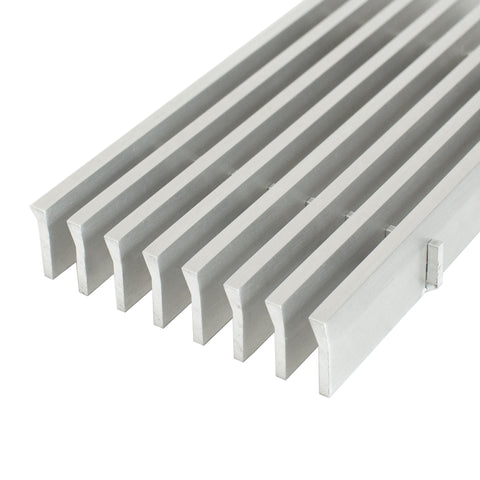

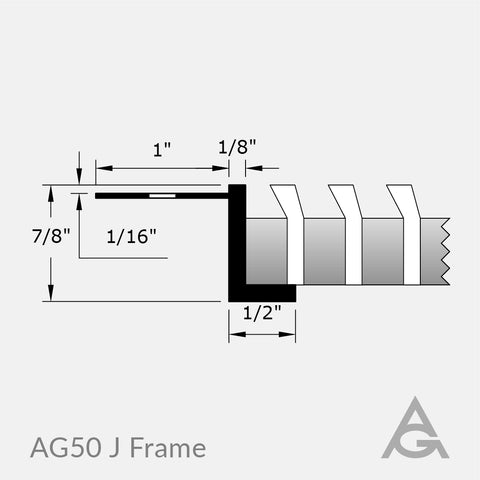

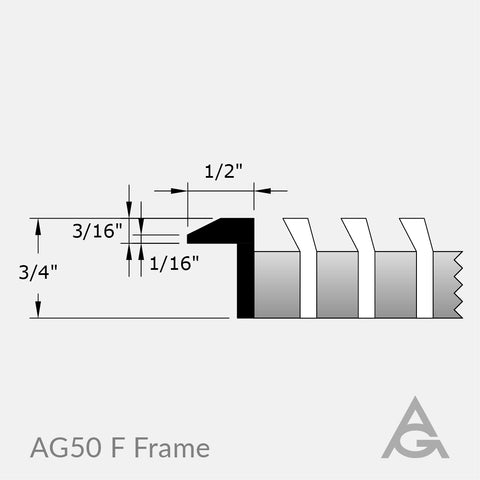

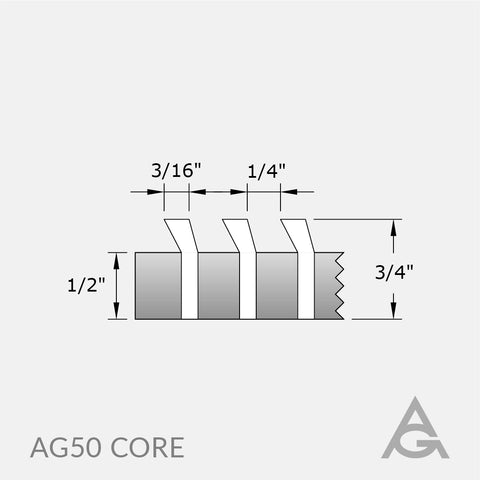

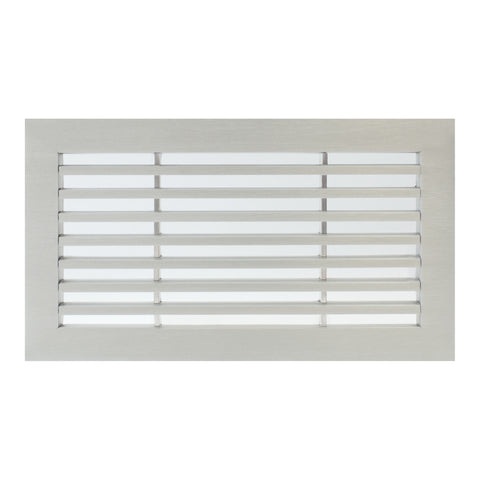

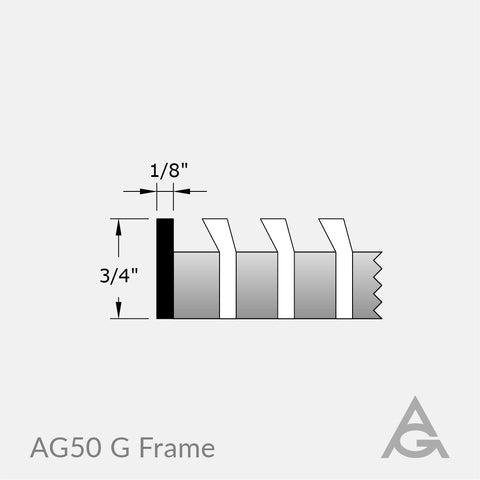

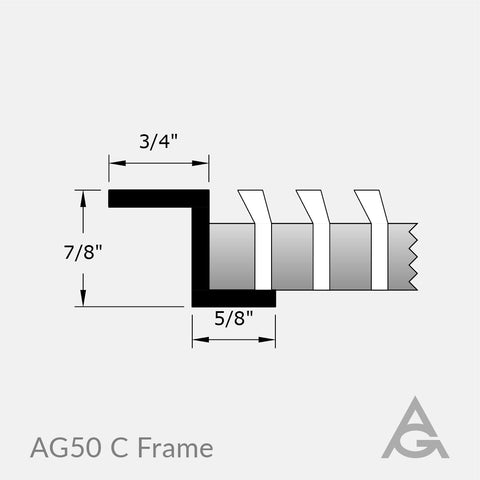

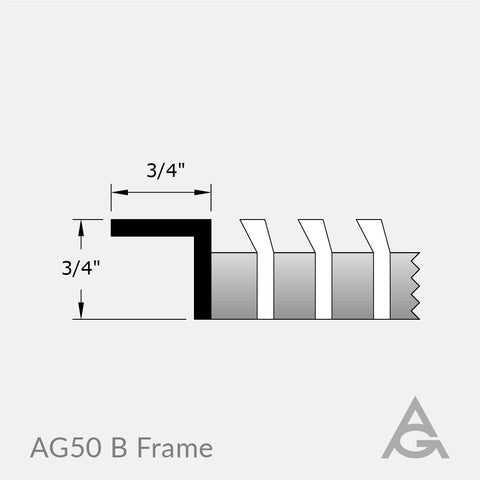

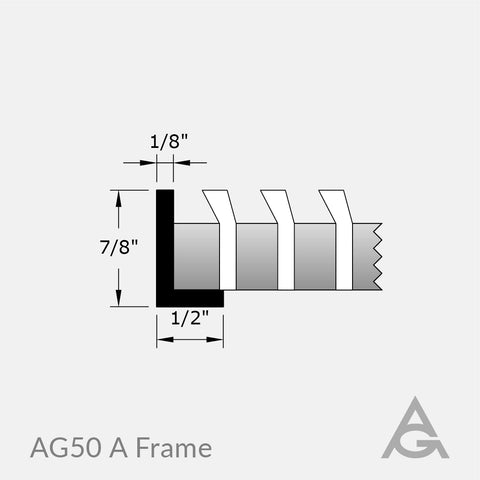

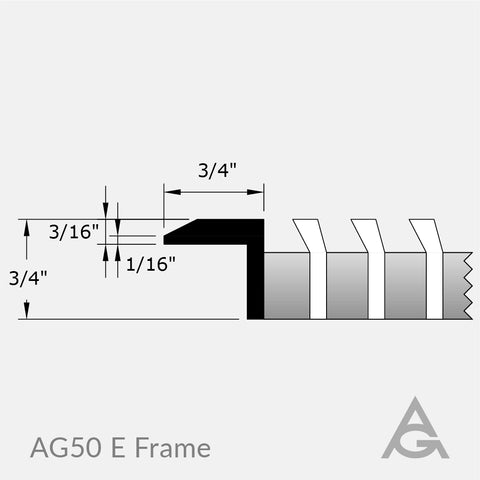

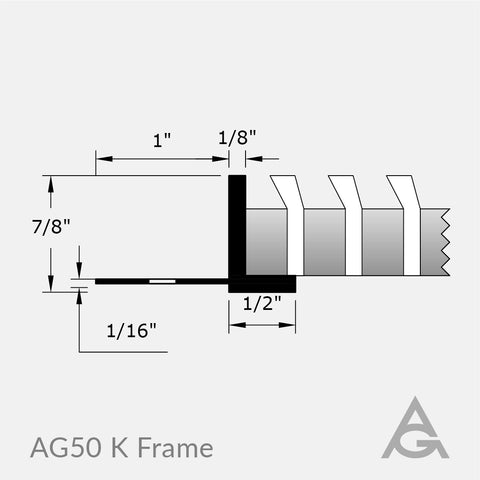

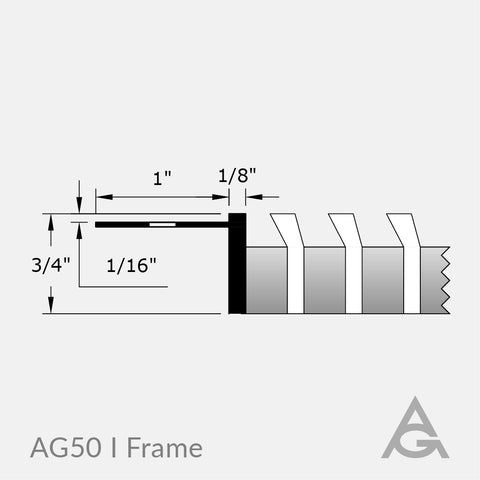

AG50 Bar Grille styles include: Core; A Frame; B Frame; C Frame; D Frame; E Frame; F Frame; G Frame; J Frame (see thumbnails for individual cross-section profiles)

Standard Features:

Material Finish
Aluminum Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors
Bronze Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

NOTE: Please be advised that Architectural Grille does not provide anodizing services onsite, as a result we cannot be responsible for additional lead time(s) incurred. If you would like to select a powder coat color similar to an anodized color we now have that option available - please ask your Estimator for further details.

Downloads:


Cutsheet PDF

Product Page
PDF

DWG Design Files

Resources:


Fastening & Mounting Methods

Measuring Instructions

Finishes & Colors

Contact us
800-387-6267 (Outside NYC)
718-832-1200 (NYC)
718-832-1390 (Fax)
