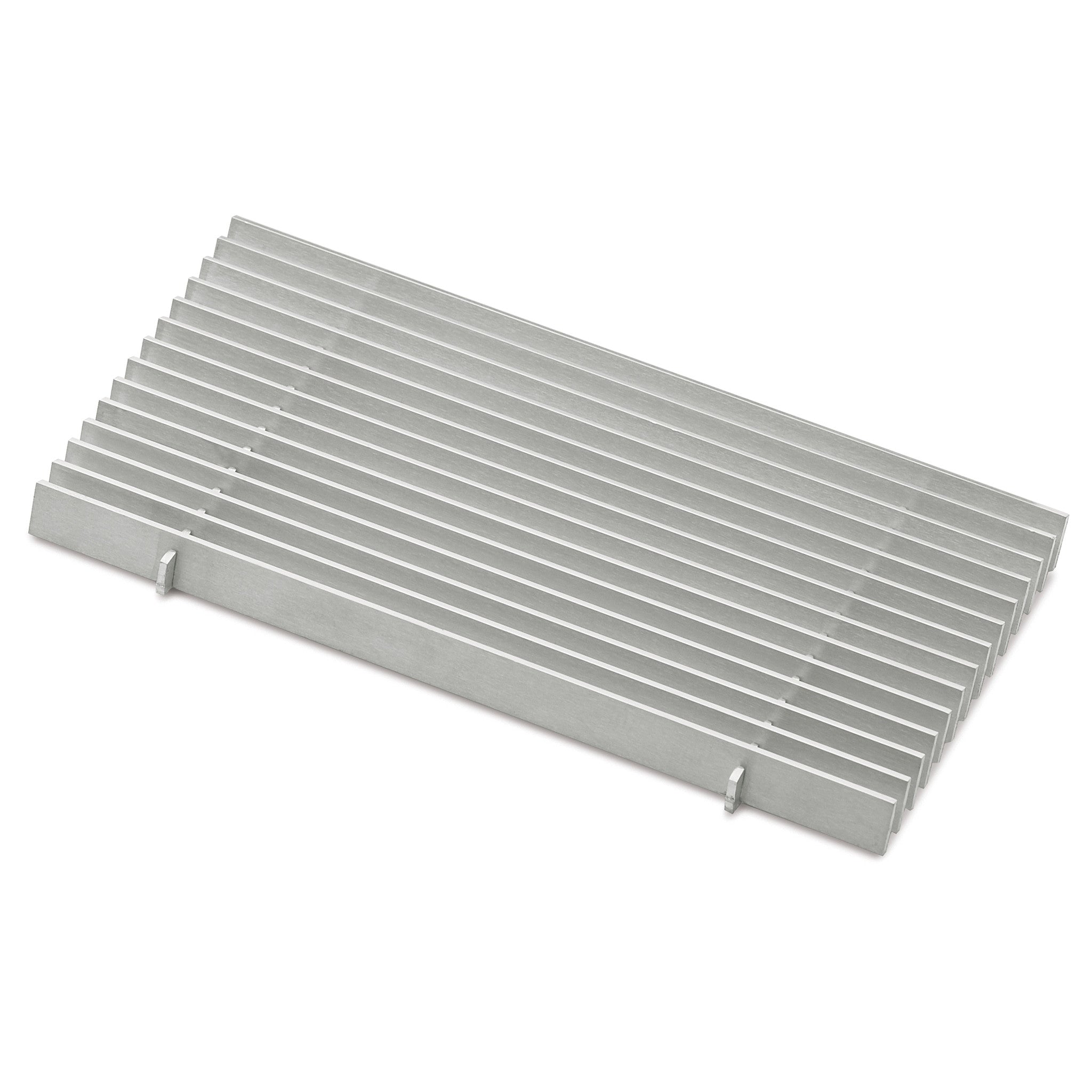

AG40 Bar Grille

Regular price $0.00 USD
Sale price $0.00 USD Regular price

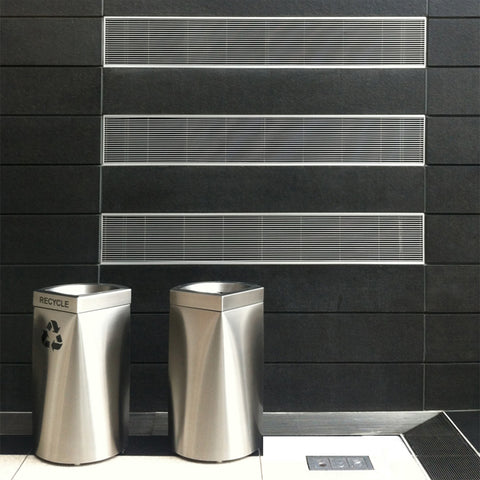

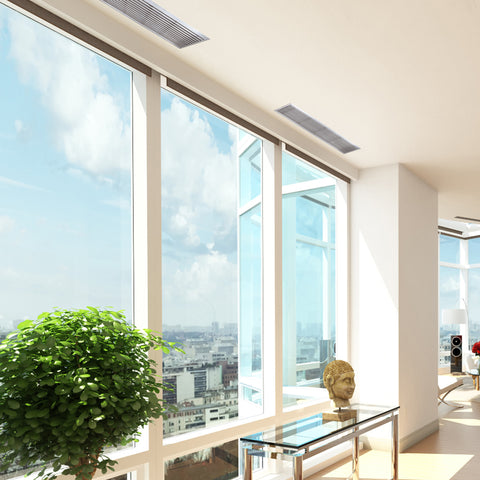

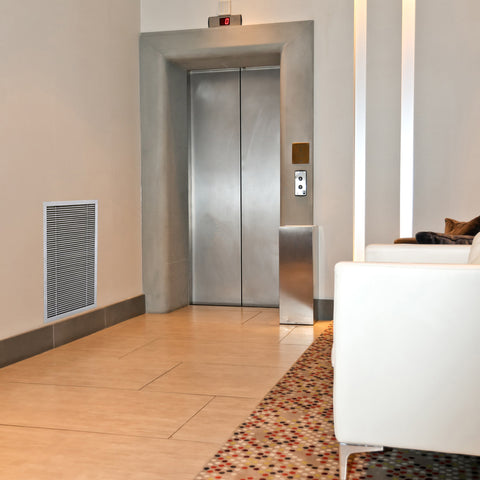

By using a minimal 16°deflection, the AG40 Bar Grille was designed to deliver air flow in a directional manner to ensure optimal comfort conditions in any room. Whether you have a commercial or residential project, the AG40 is ideal for floor, ceiling, wall or window sill applications where efficient performance needs to be combined with aesthetic architectural properties to create an advance and architecturally pleasing linear bar grille.

The AG40 Bar Grille is available in a variety of materials and finishes, and can be customized to your needs and project standards. Request a quote.

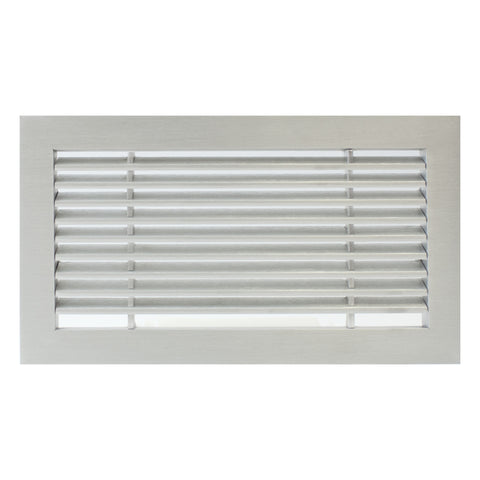

AG40 Bar Grille styles include: Core; A Frame; B Frame; C Frame; D Frame; E Frame; F Frame; G Frame; H Frame; I Frame; J Frame; K Frame (see thumbnails for individual cross-section profiles)

Standard Features:

  • 16° Deflection
  • Weld-Lock constructed for maximum durability
  • Pencil Proof: ¼” spacing between bars
  • Custom Spacing available
  • Core can be loose or welded to A, C, H, J or K Frames
  • Mitered Corners / Beveled Edges available
Register / Login to Access Cutsheets and CAD Details
Material Finish
Aluminum Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors
Brass Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark
Bronze Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark
Stainless Steel  Satin, Mirror Polish

NOTE: Please be advised that Architectural Grille does not provide anodizing services onsite, as a result we cannot be responsible for additional lead time(s) incurred. If you would like to select a powder coat color similar to an anodized color we now have that option available - please ask your Estimator for further details.
