AG10 Bar Grille

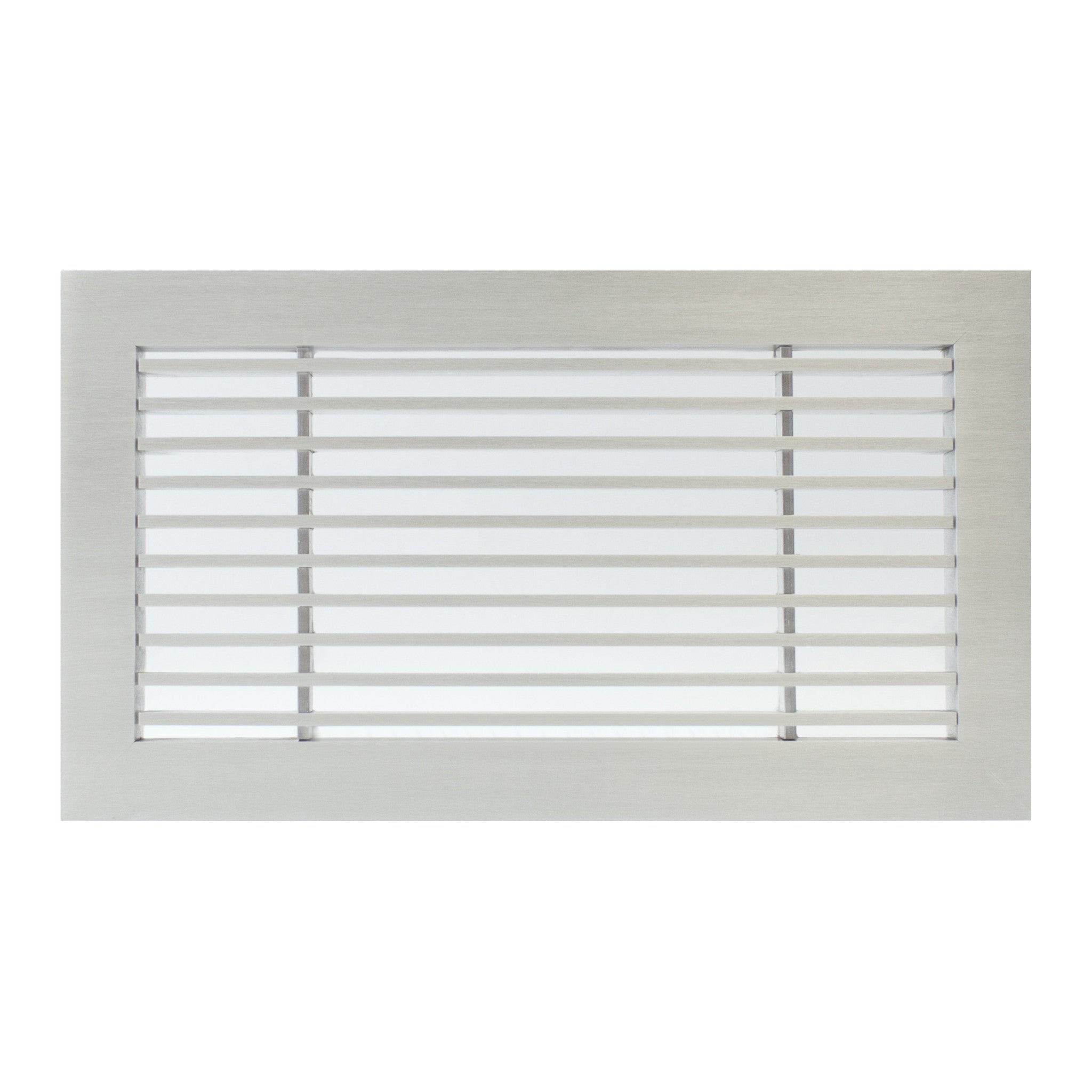

With a fixed zero deflection and an aesthetically pleasing continuous length appearance, the AG10 Bar Grille is an advanced linear grille ideal for floor, ceiling, wall and window sill applications for your commercial or residential project. Surpassing architectural and engineering applications that require both design and high engineering performance, this is a premium quality product from Architectural Grille.

The AG10 Bar Grille is available in a variety of stock sizes, materials and finishes, and can also be customized to your needs and project standards. Request a quote.

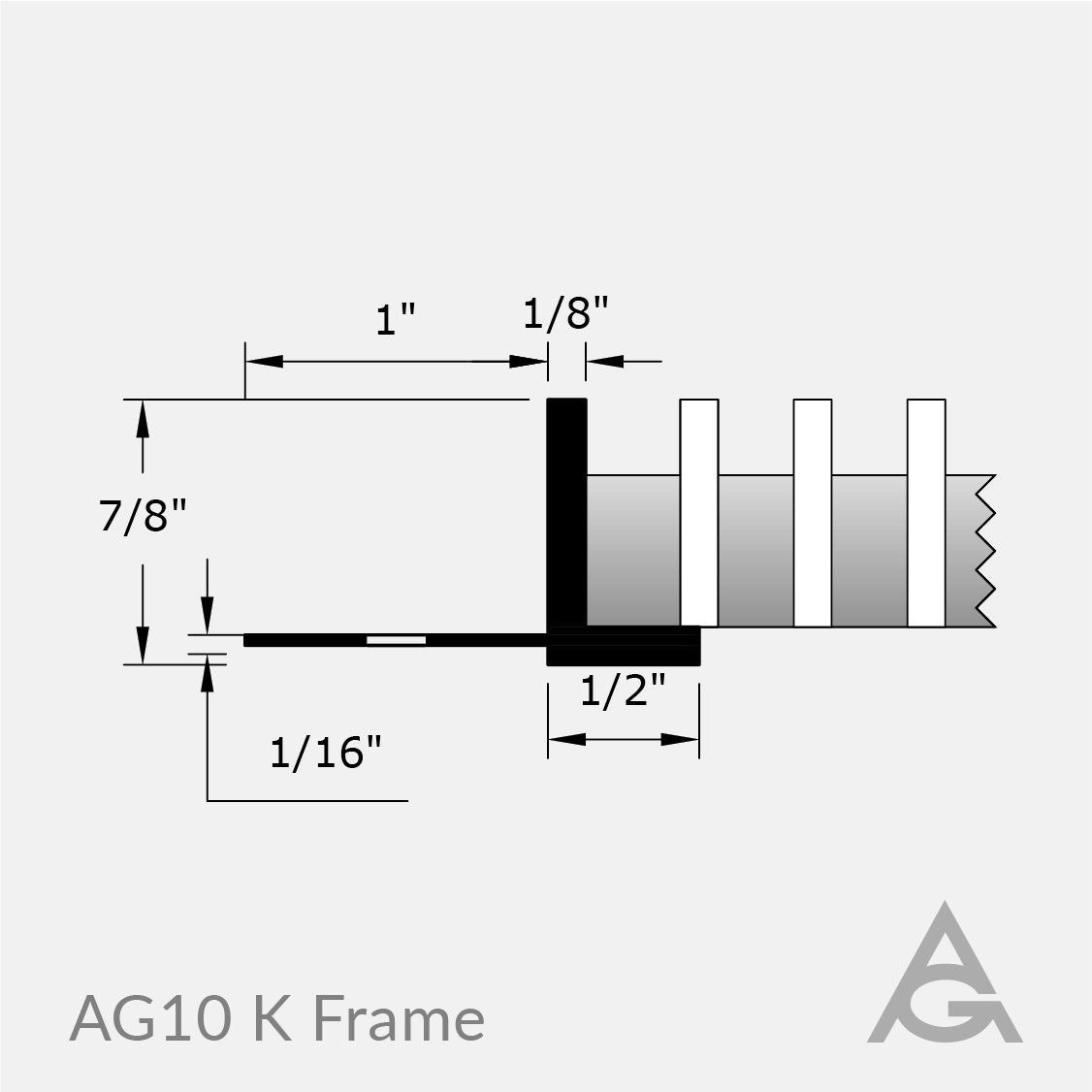

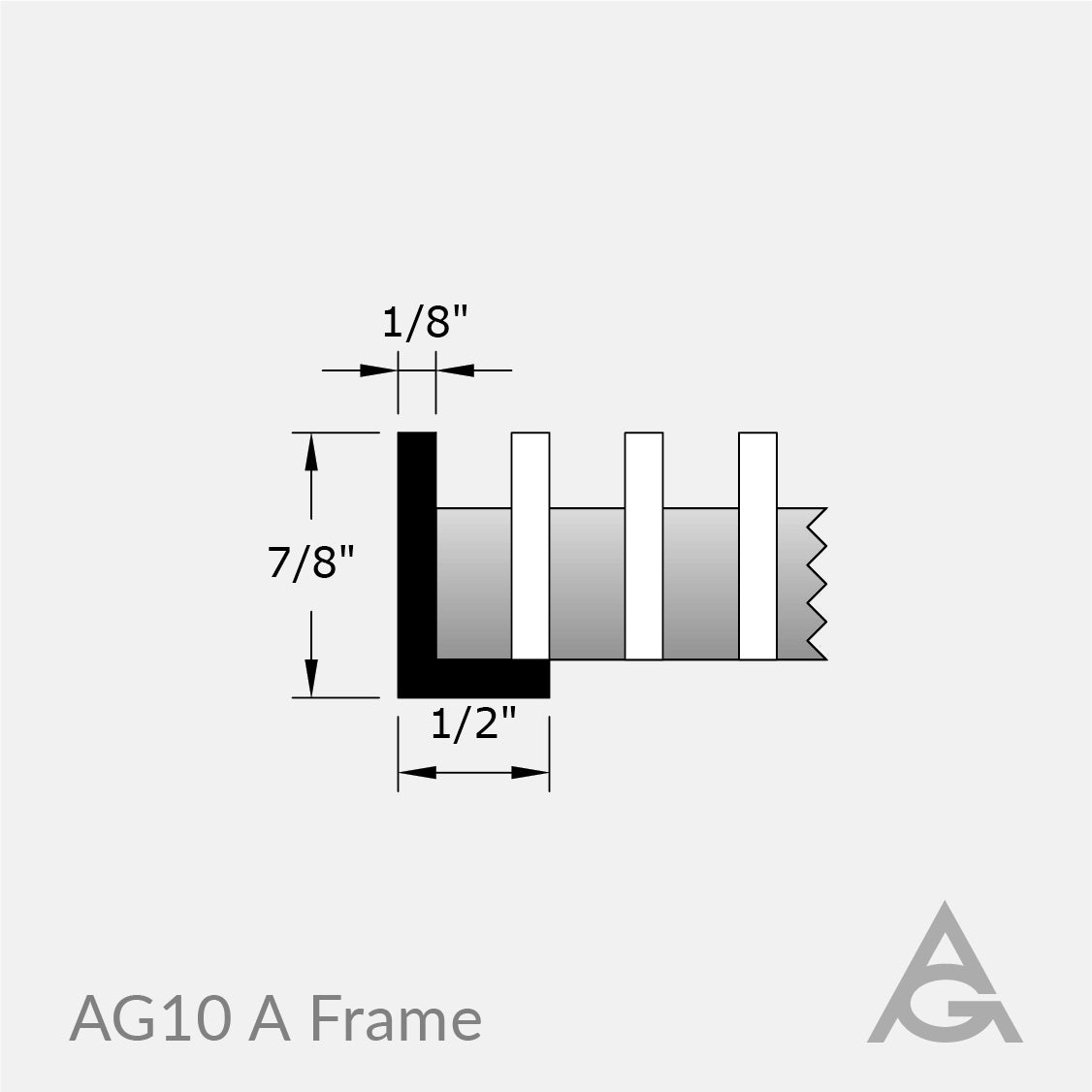

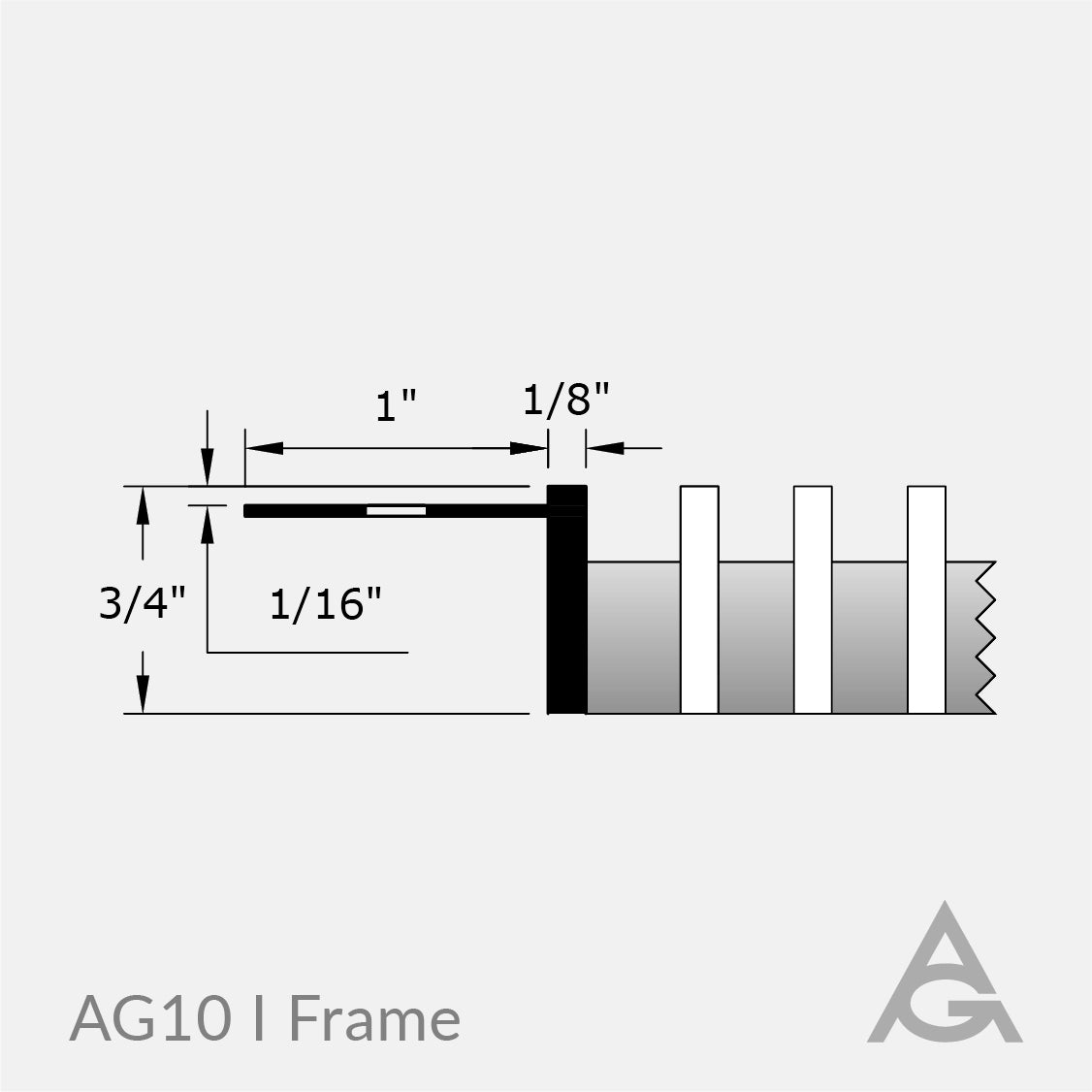

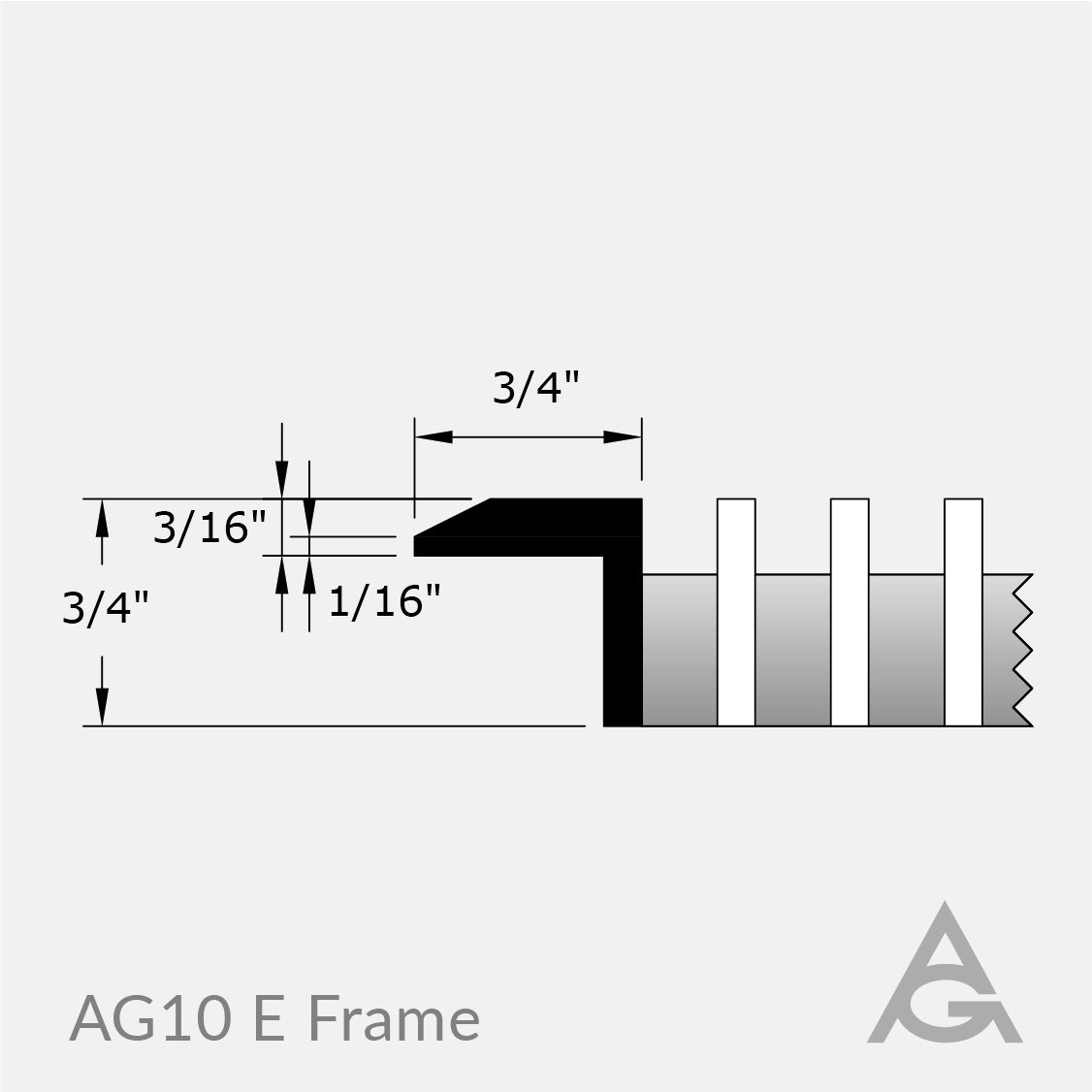

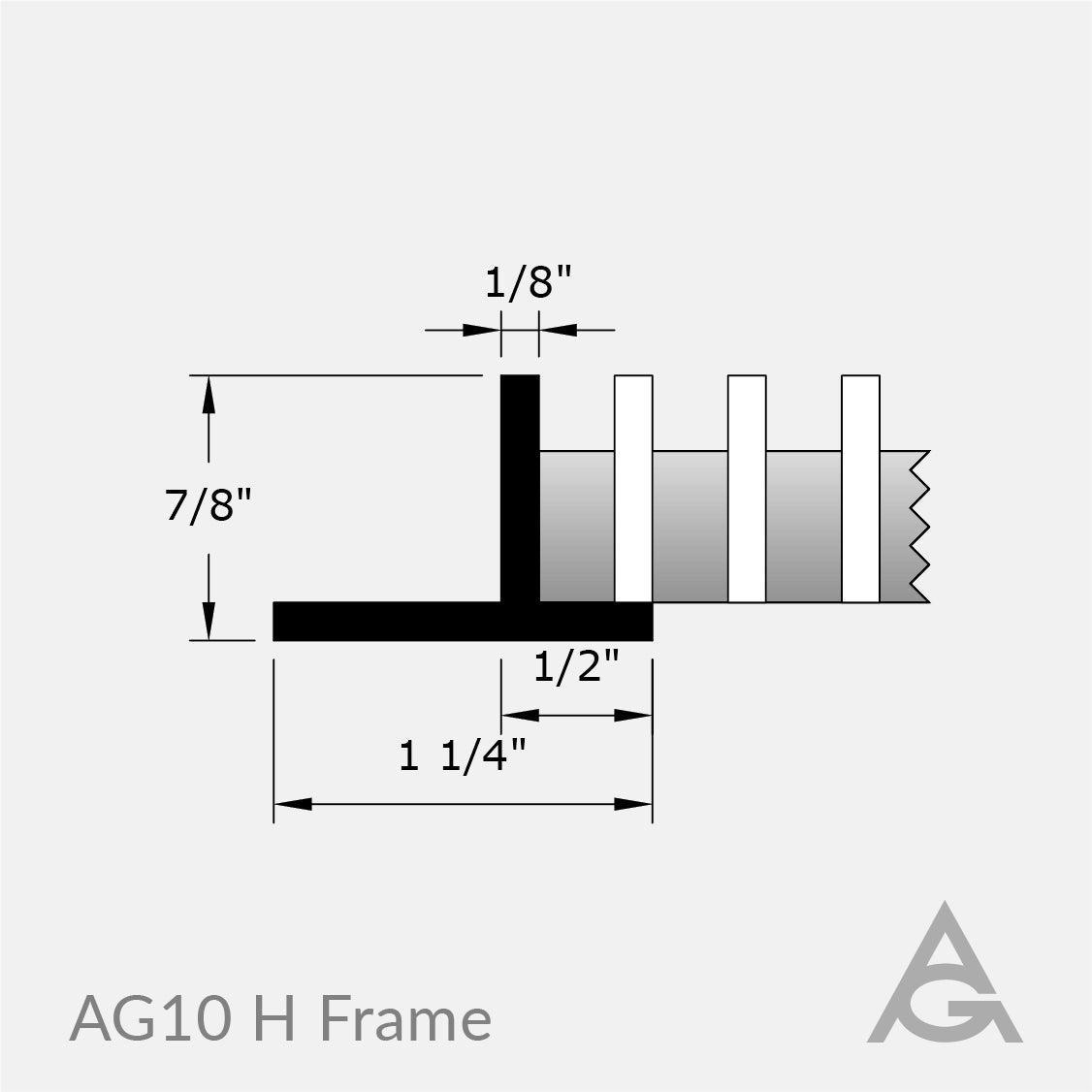

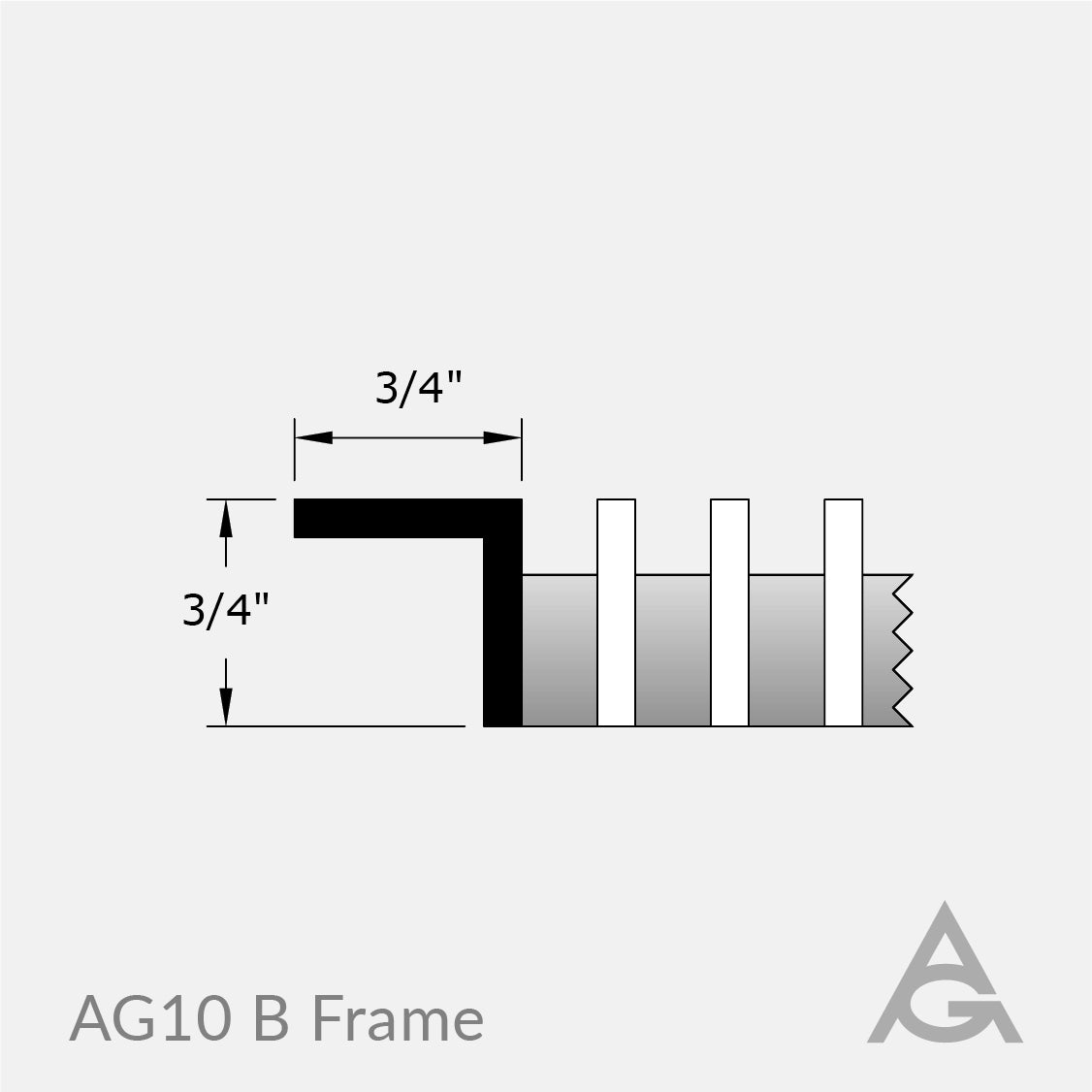

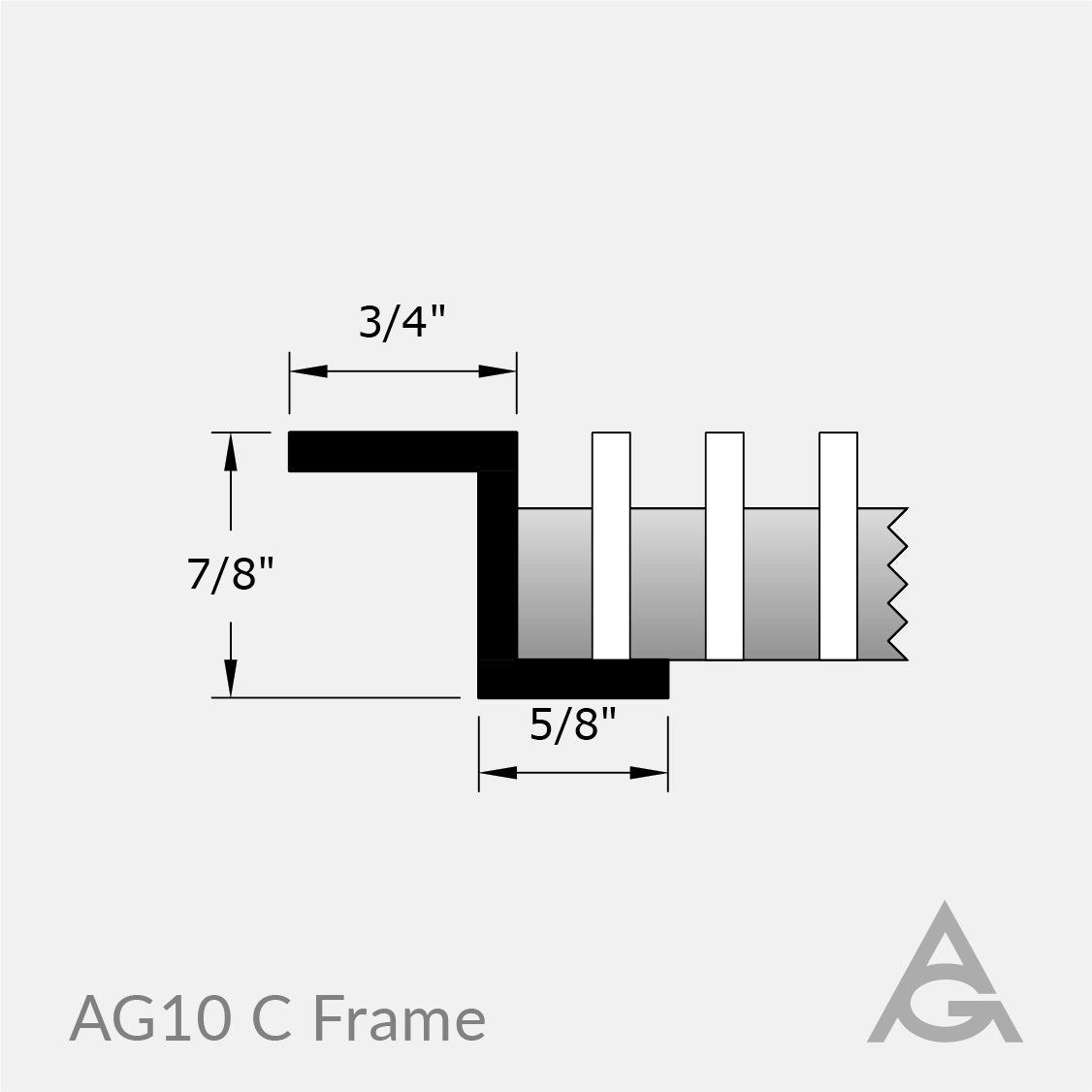

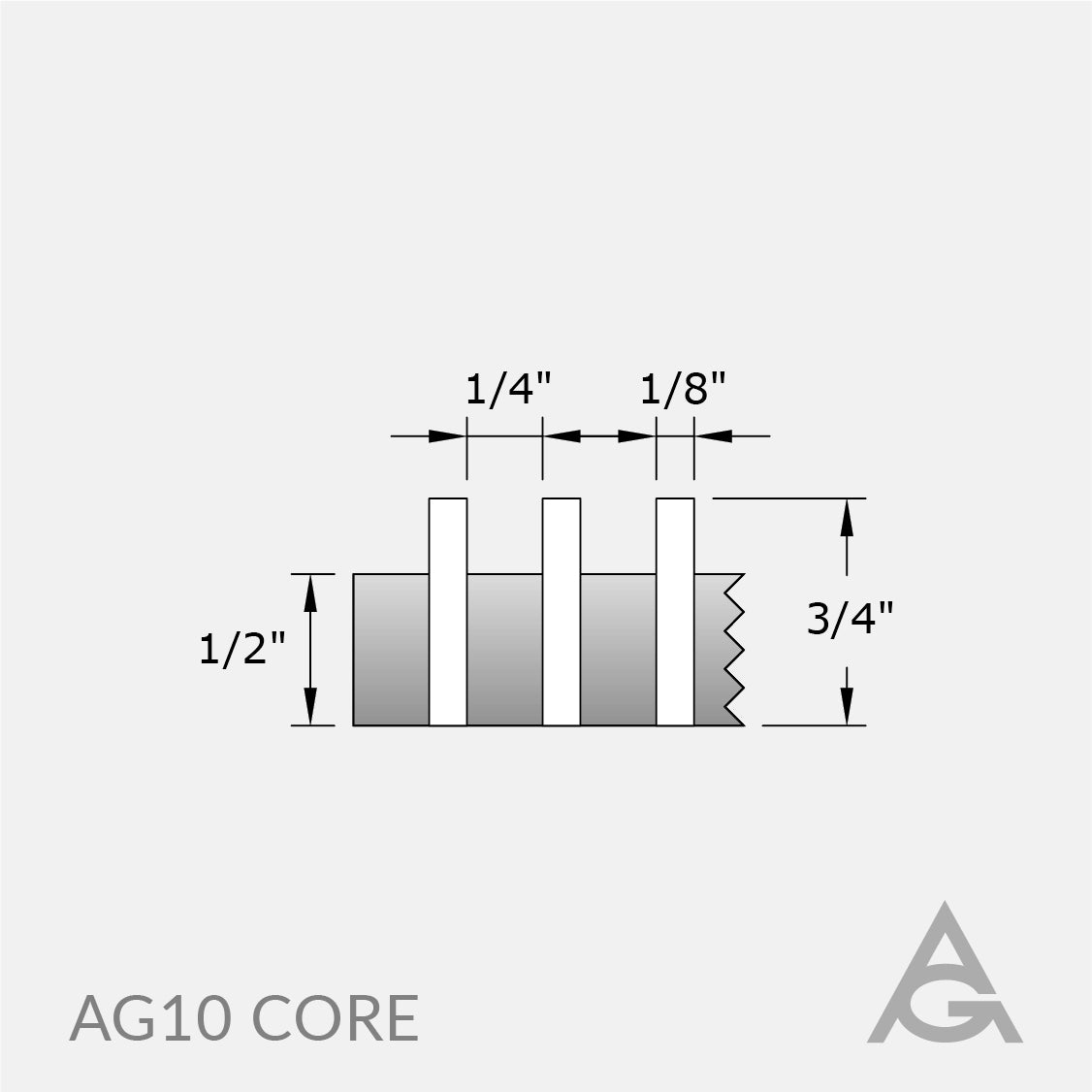

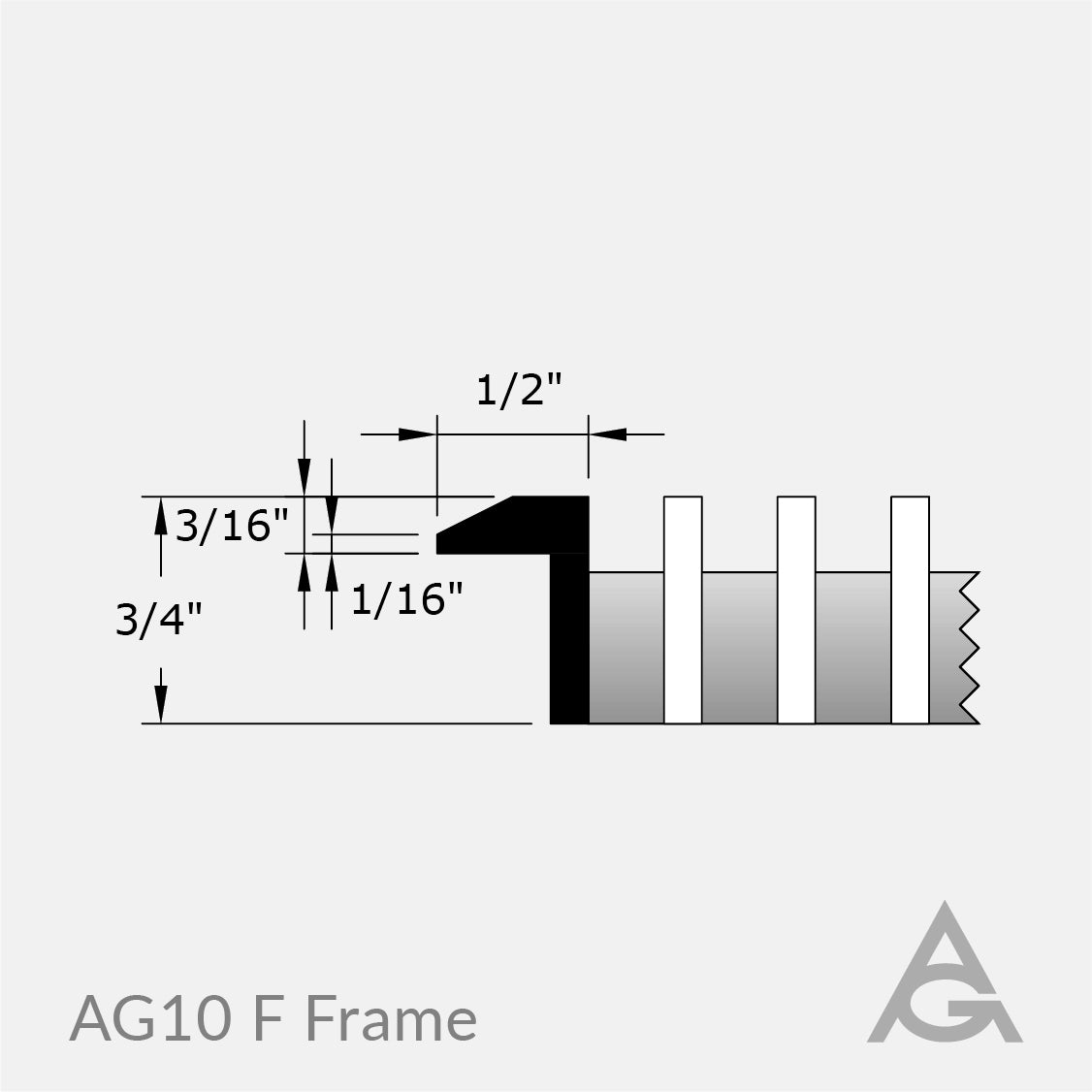

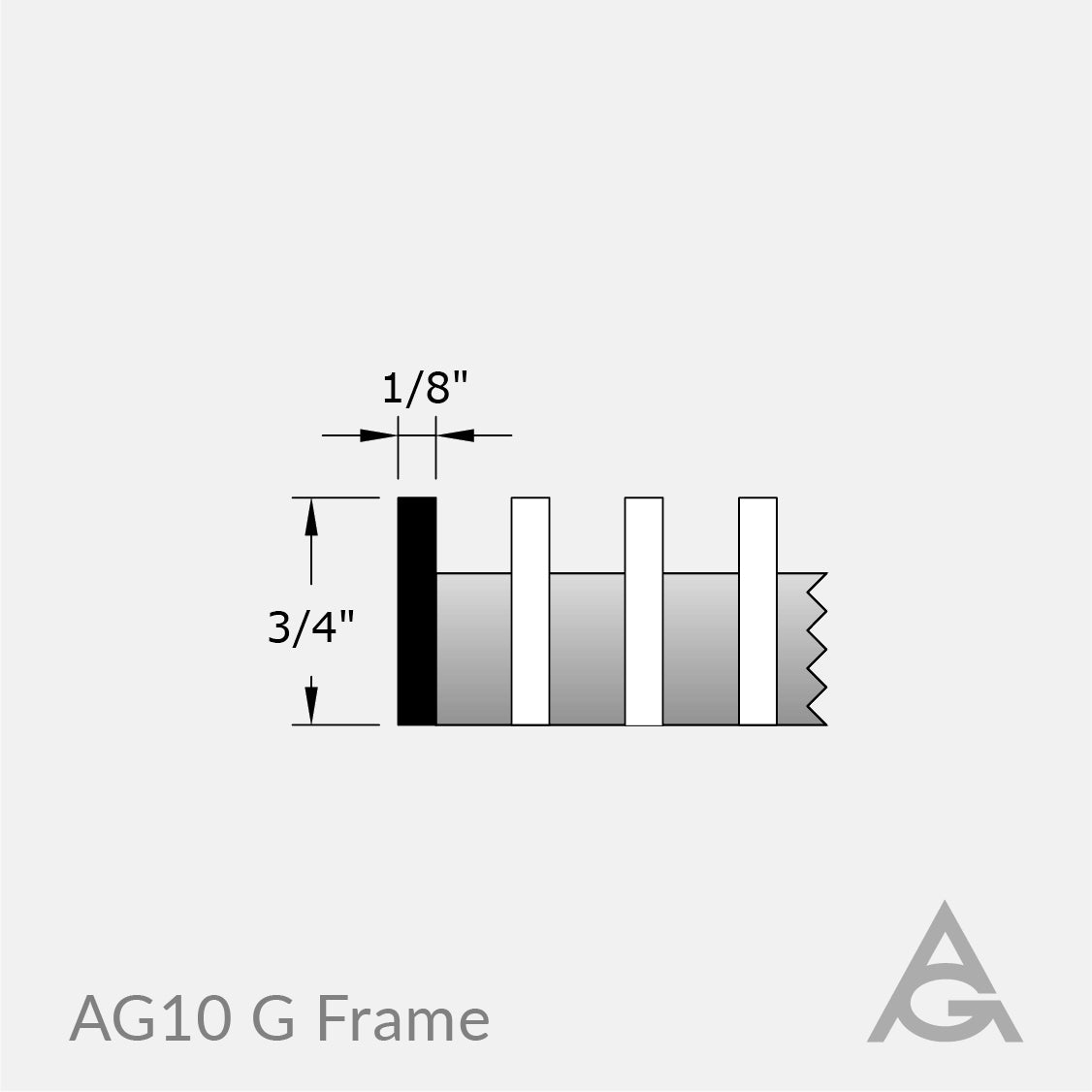

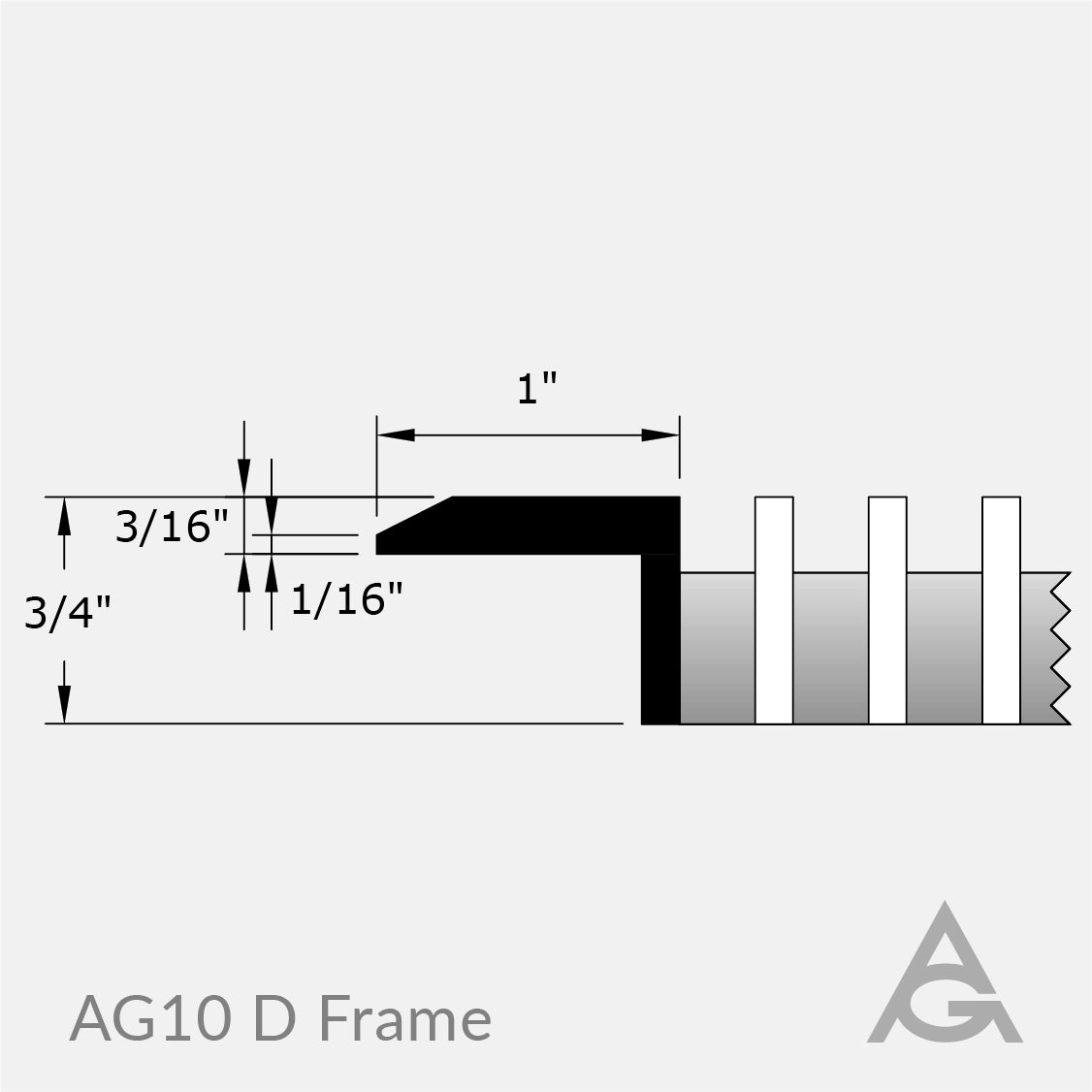

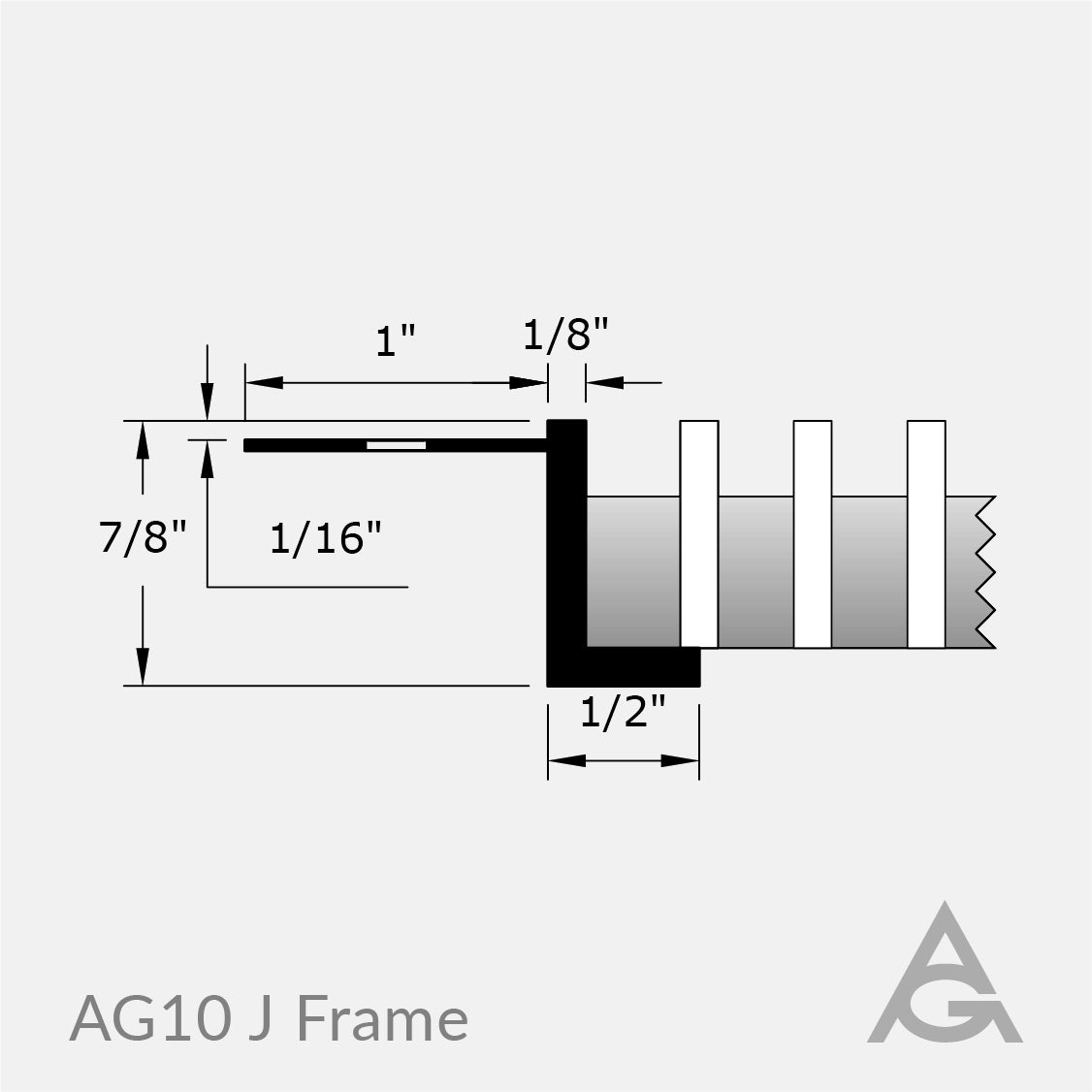

AG10 Bar Grille styles include: Core; A Frame; B Frame; C Frame; D Frame; E Frame; F Frame; G Frame; H Frame; I Frame; J Frame; K Frame (see thumbnails for individual cross-section profiles)

Standard Features:

• 0° Deflection
• Weld-Lock constructed for maximum durability
• Pencil Proof: ¼” spacing between bars
• Custom Spacing available
• Core can be loose or welded to A, C, H, J or K Frames
• Mitered Corners / Beveled Edges available
• Pivot Access Door(s) available
• Curved available: Concave, Convex or Flat Face
• Stock sizes available for sale online

NOTE: Please be advised that Architectural Grille does not provide anodizing services onsite, as a result we cannot be responsible for additional lead time(s) incurred. If you would like to select a powder coat color similar to an anodized color we now have that option available - please ask your Estimator for further details.

Downloads:

Cutsheet PDF

Product Page PDF

DWG Design Files

Resources:

Fastening & Mounting Methods

Measuring Instructions

Finishes & Colors
