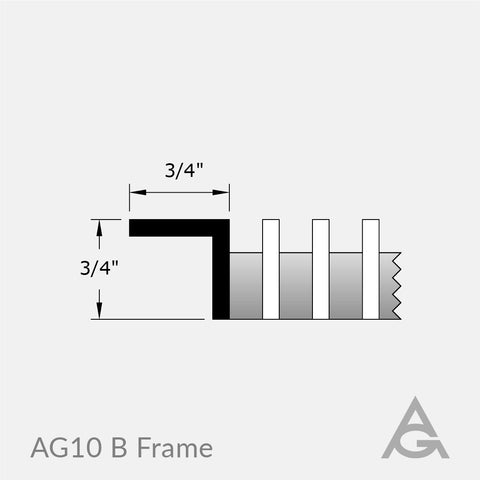

AG10 B Frame Bar Grille with Door


Pin It Houzz

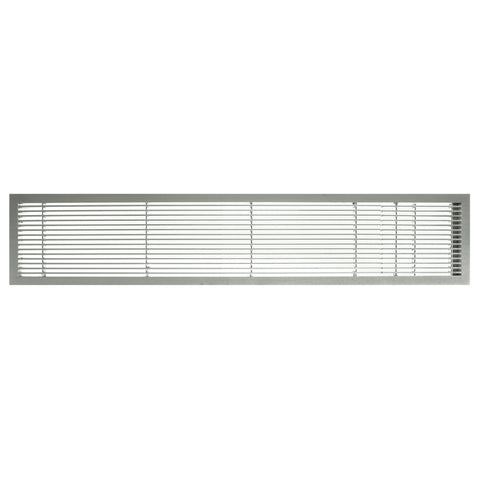

Made of post-consumer 94% recycled aluminum with a brushed satin finish, and available with a left or right pivot access door, the AG10 B Frame Bar Grille with Door is suitable for residential or commercial projects that need access to HVAC unit control panels.

Material: Aluminum*

Finish: Satin

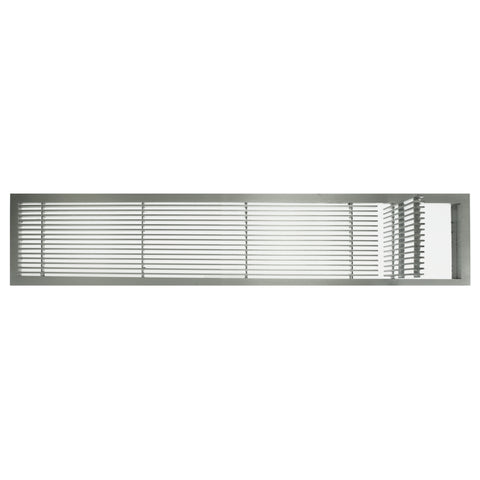

Options: Pivot Access Door (flip for left or right orientation)

*post-consumer 94% recycled aluminum


Standard Features:

    • 0° Deflection
    • Weld-Lock constructed for maximum durability

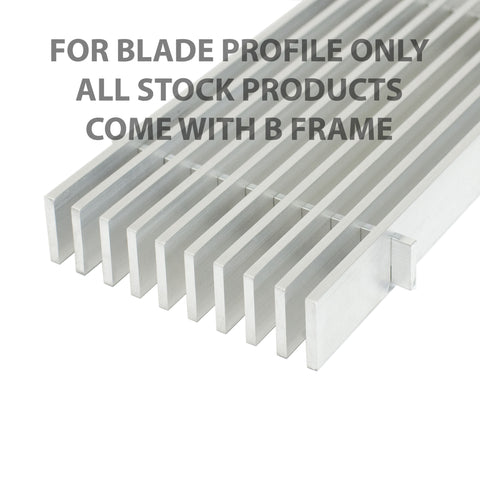

    • Pencil Proof: ¼” spacing between bars
    • Sizes shown are inside measurements of stock grille, the actual opening should be 1/16" larger to ensure proper fit

    Downloads:


    Cutsheet PDF

    Product Page
    PDF

    DWG Design Files

    Resources:


    Fastening & Mounting Methods

    Measuring Instructions
