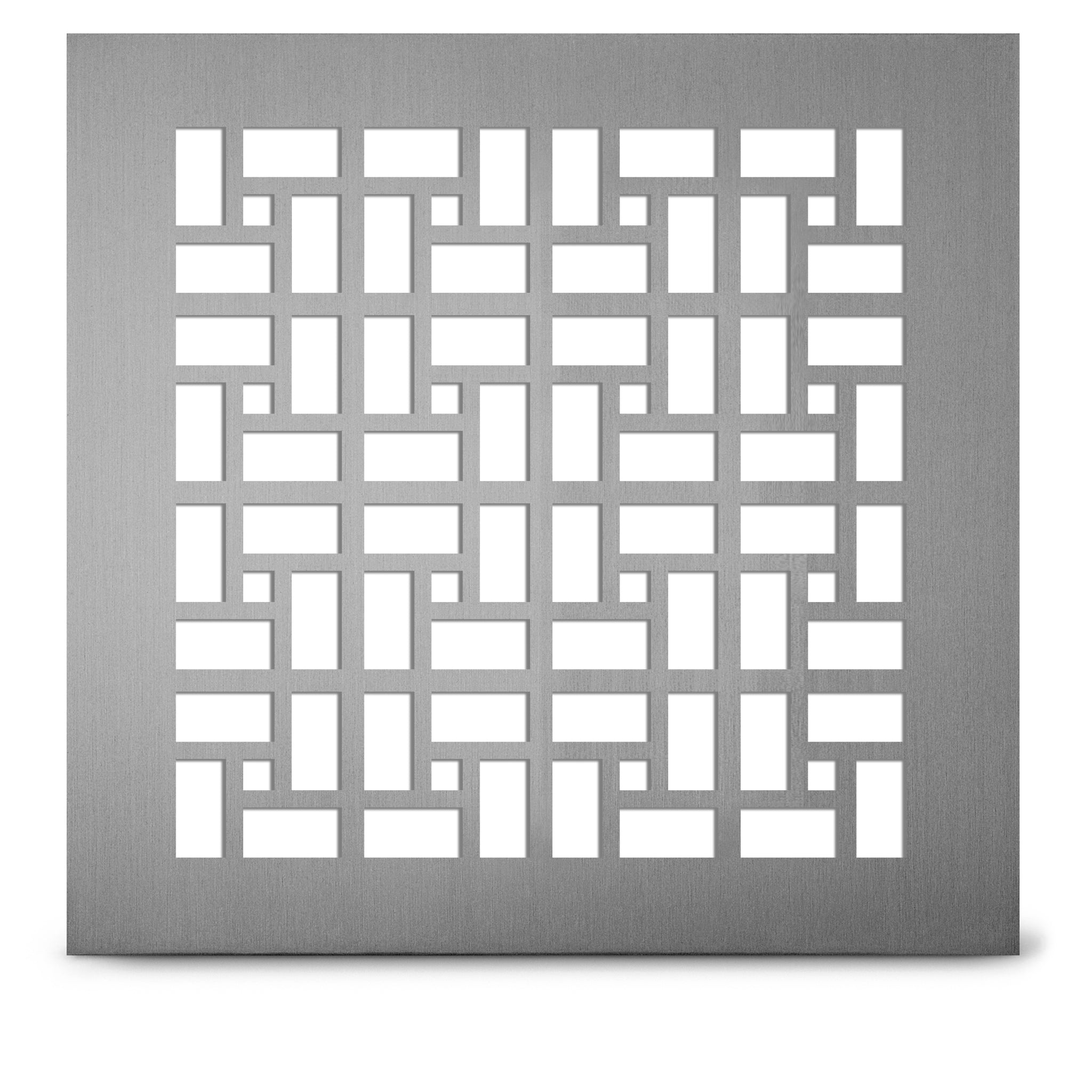

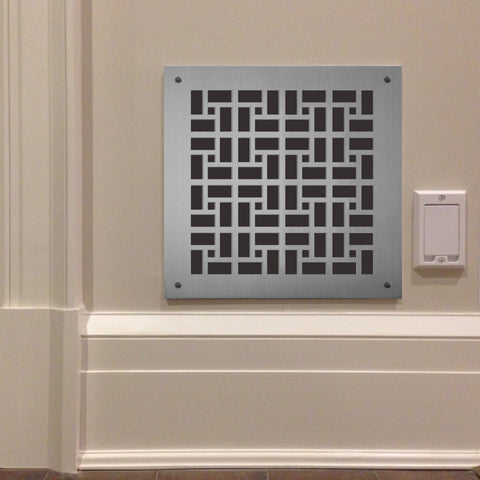

239 Xian Perforated Grille
Inspired by traditional Chinese lattices found wandering through the streets of Xian, this geometric pattern in the #239 Xian Perforated Grille repeats 2 distinct shapes - a rectangle and a square – for a modern approach to air flow and ventilation.
With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.
Pattern Dimensions:
- 2” pattern - 61% open area
|
MATERIAL |
PUNCHED THICKNESS* (min-max) |
FINISH |
|
Aluminum |
1/16” – 1/8” |
Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors |
|
Brass |
1/16” – 1/8” |
Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark |
|
Bronze |
1/16” – 1/8” |
Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark |
|
Stainless Steel |
1/16” – 14 GA |
Satin, Mirror Polish |
|
Steel |
1/16” – 1/8” |
Raw, Primed, Powder Coating Colors |
*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAILS
Resources: For Fastening + Mounting Methods - refer to "Perforated Grilles"
