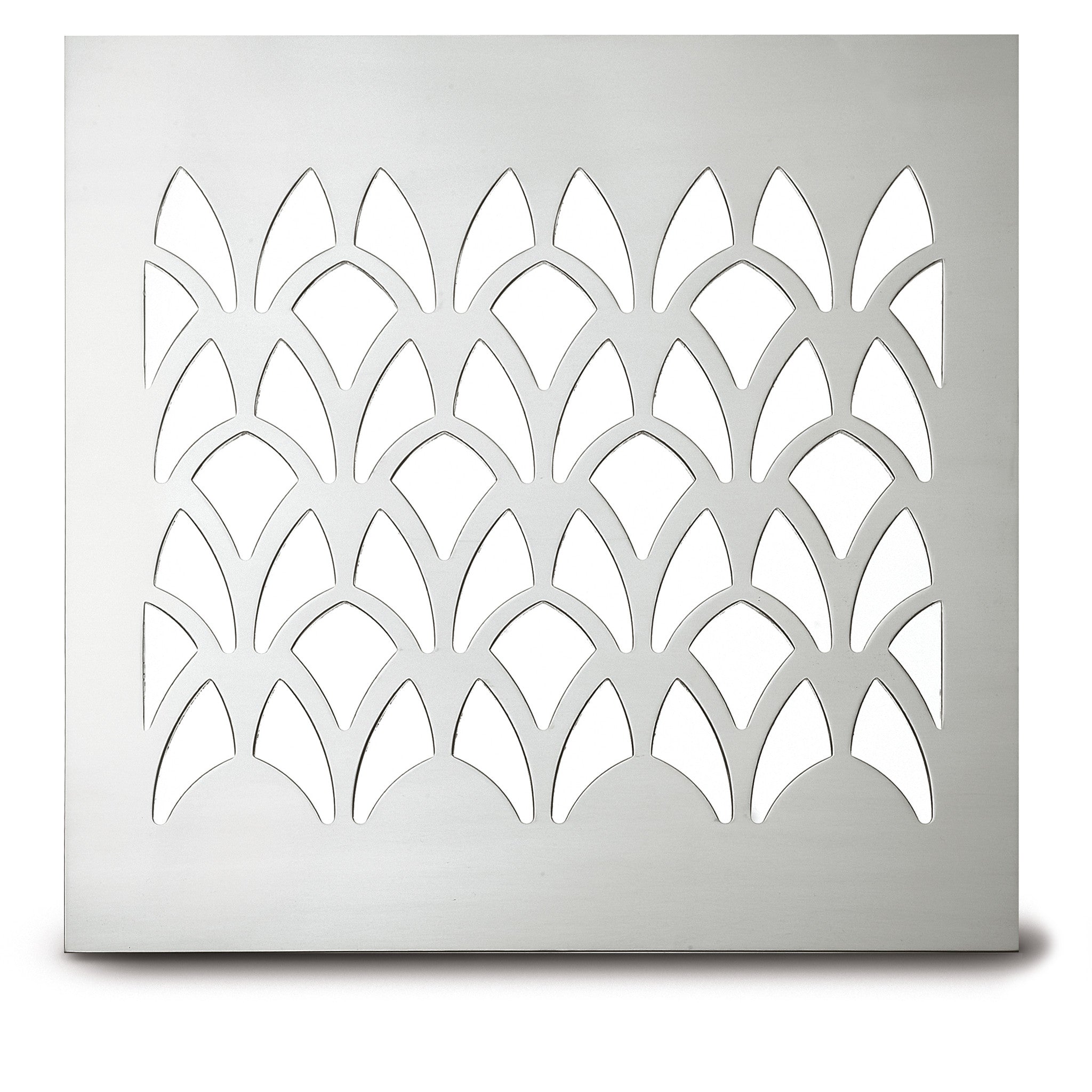

226 Cathedral Perforated Grille


Pin It Houzz

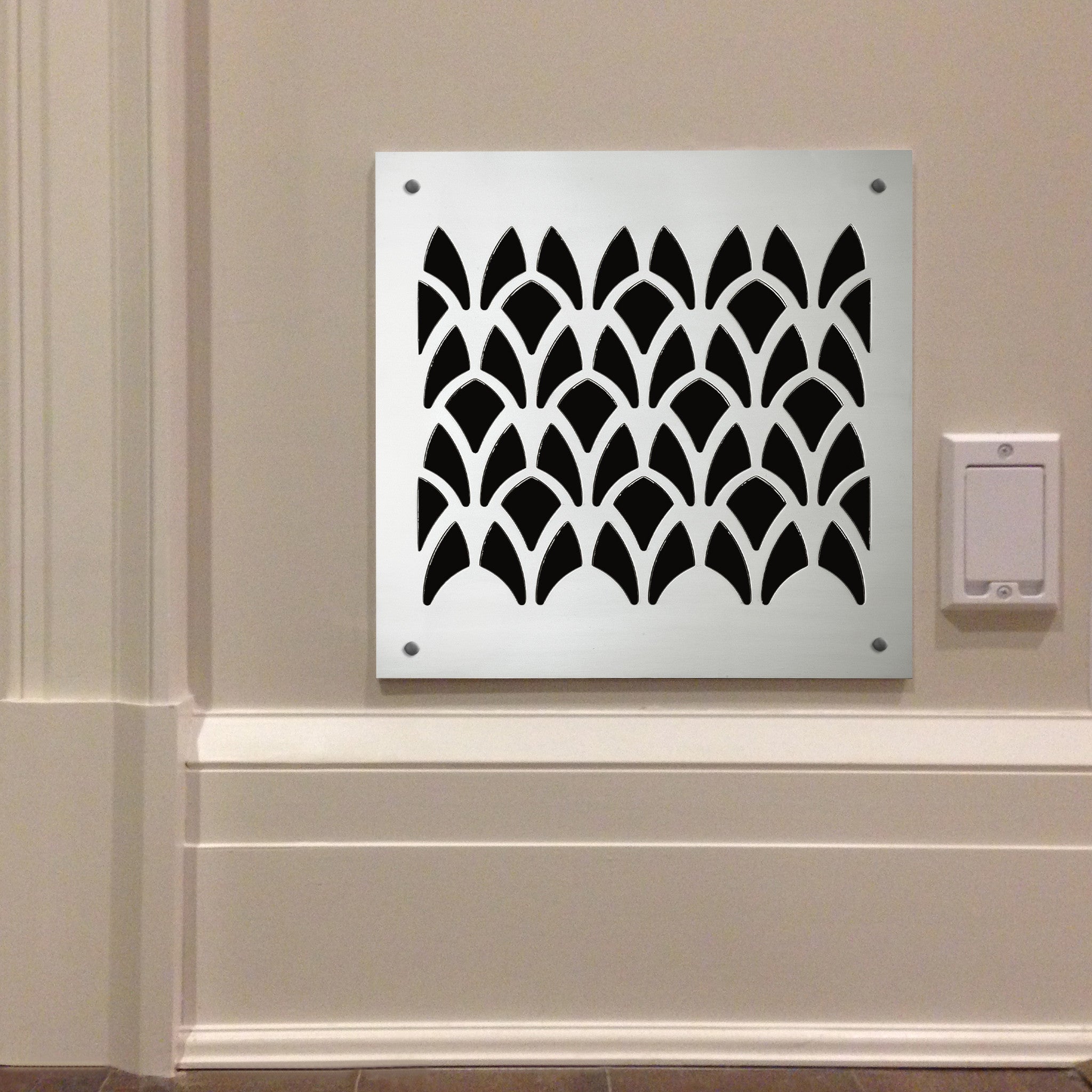

The #226 Cathedral Perforated Grille combines French Gothic architectural design with optimal air flow and ventilation to provide a classic pattern for residential and commercial buildings, including traditional renovations and replications.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern Dimensions:

  • 2¼” x 2 3/16” pattern - 57% open area

MATERIAL

PUNCHED THICKNESS*

 (min-max)

FINISH

Aluminum

1/16” – 1/8”

Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors

Brass

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Bronze

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Stainless Steel

1/16” – 14 GA

Satin, Mirror Polish

Steel

1/16” – 1/8”

Raw, Primed, Powder Coating Colors

*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAILS

Downloads:


Cutsheet PDF

Product Page
PDF

DWG Design Files

Resources:


Fastening & Mounting Methods

Measuring Instructions

Finishes & Colors
