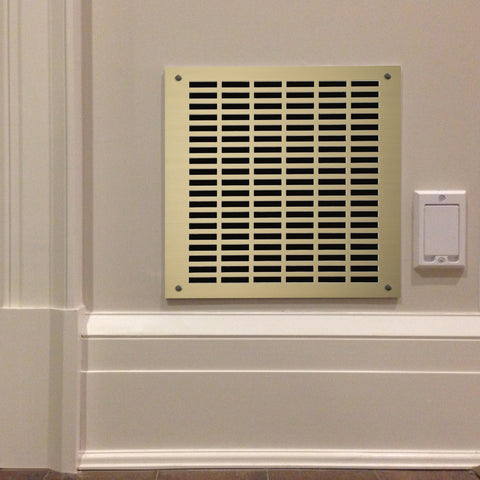

210 School Slot Perforated Grille


Pin It Houzz

For commercial and residential projects requiring a repetitive linear pattern, the #210 School Slot Perforate Grille is the ideal design solution delivering aesthetic appeal and functionality for optimal air flow.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern Dimensions:

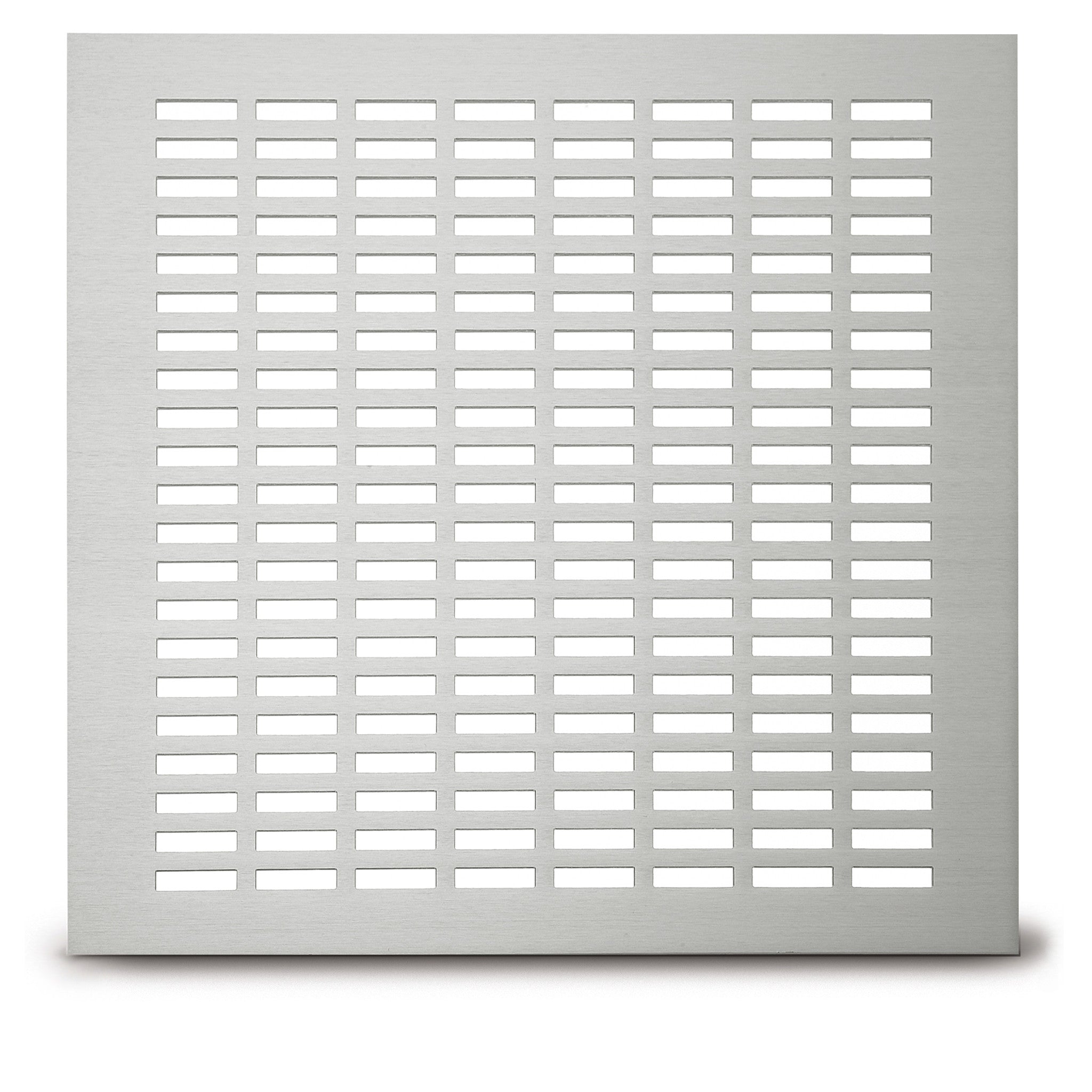

  • ¼” x 1” pattern - 35% open area

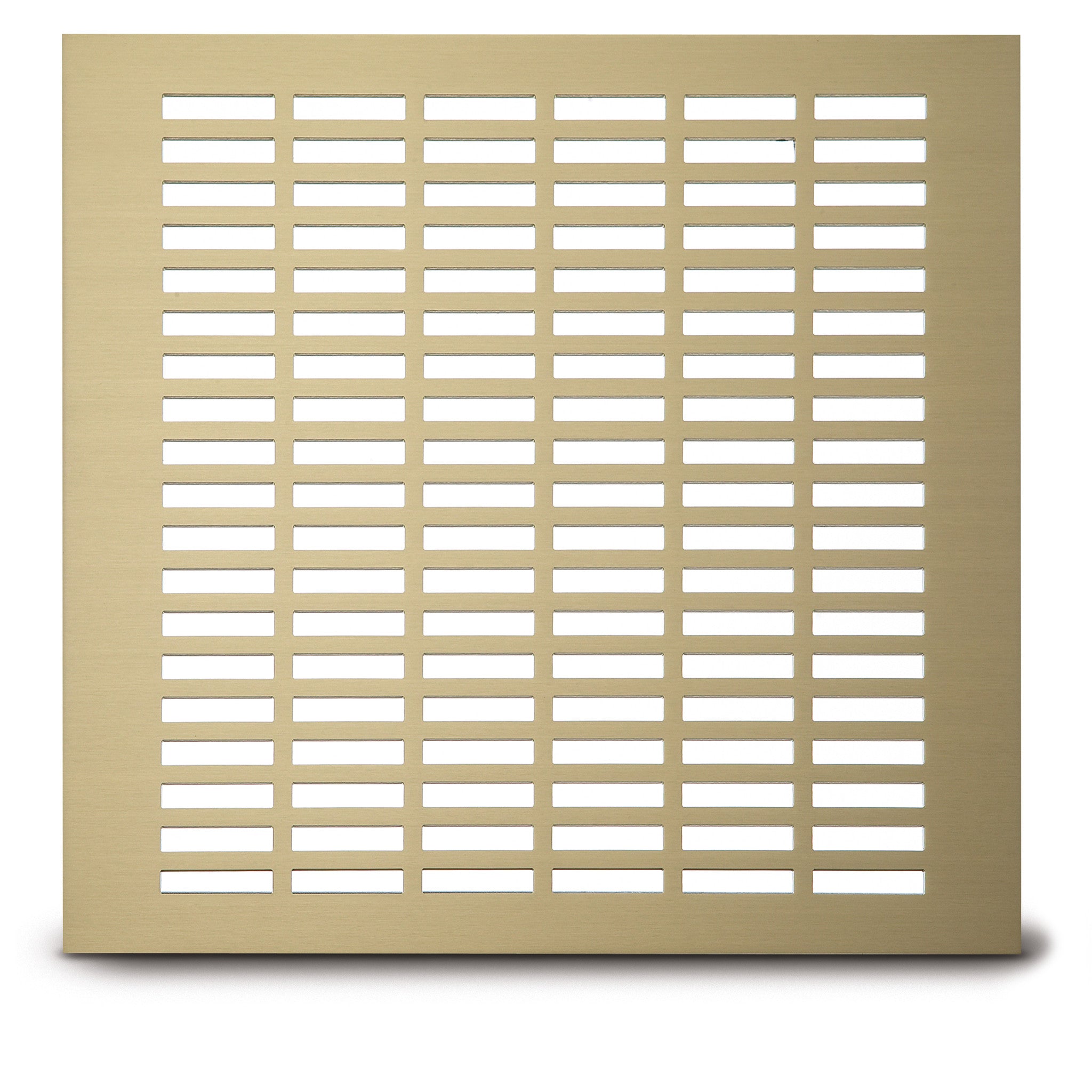

  • 5/16” x 1 3/8” pattern - 43% open area

MATERIAL

PUNCHED THICKNESS*

 (min-max)

FINISH

Aluminum

1/16” – 1/8”

Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors

Brass

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Bronze

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Stainless Steel

1/16” – 14 GA

Satin, Mirror Polish

Steel

1/16” – 1/8”

Raw, Primed, Powder Coating Colors

*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAILS

Downloads:


Cutsheet PDF

Product Page
PDF

DWG Design Files

Resources:


Fastening & Mounting Methods

Measuring Instructions

Finishes & Colors
