200 Square Link Perforated Grille

Regular price $0.00 USD
Sale price $0.00 USD Regular price

The #200 Square Link Perforated Grille is a contemporary style pattern which was one of the first designs we started making at Architectural Grille. With various open area options benefiting air flow and ventilation applications, this is a popular pattern for renovations and new construction alike.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern Dimensions:

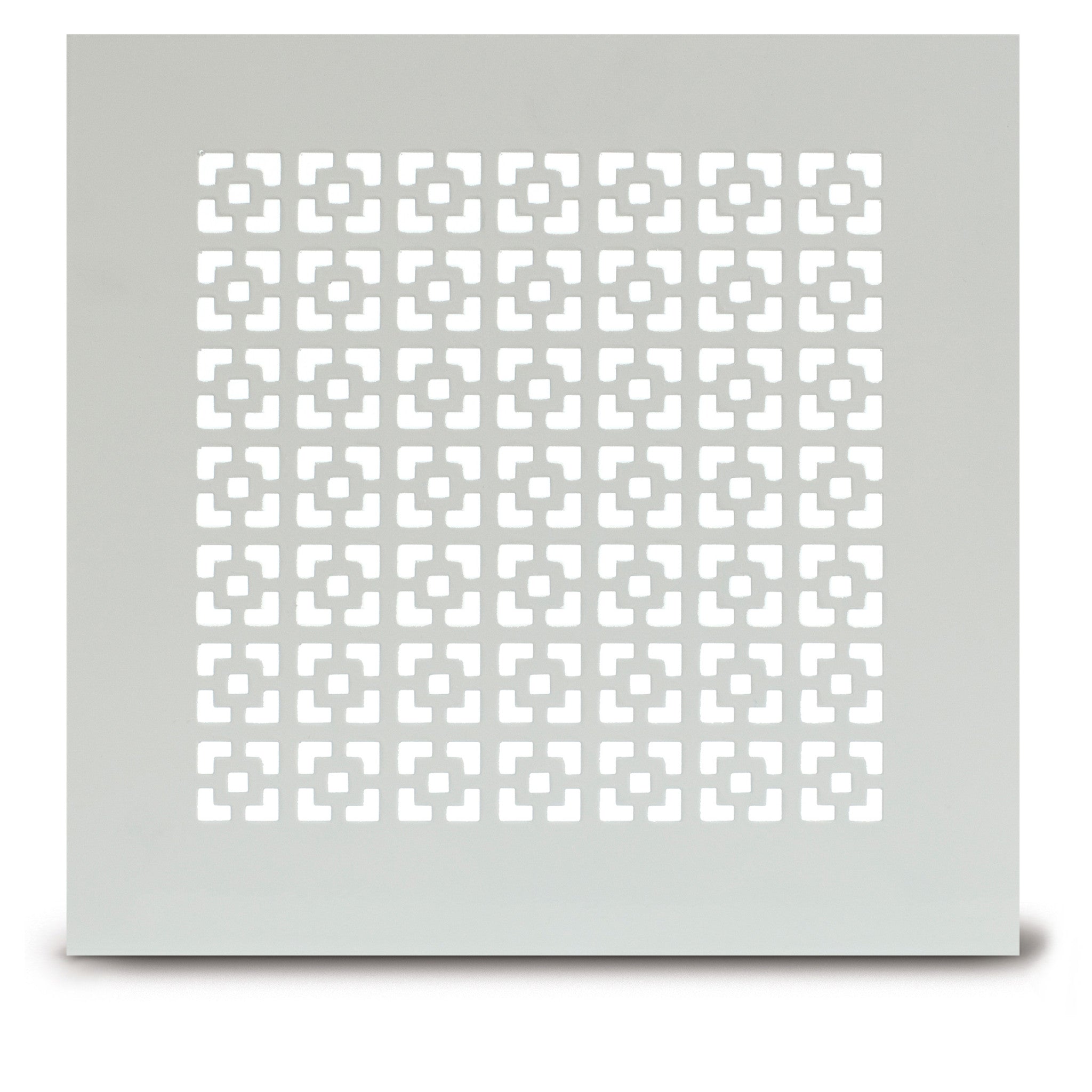

  • 1” pattern - 38% open area

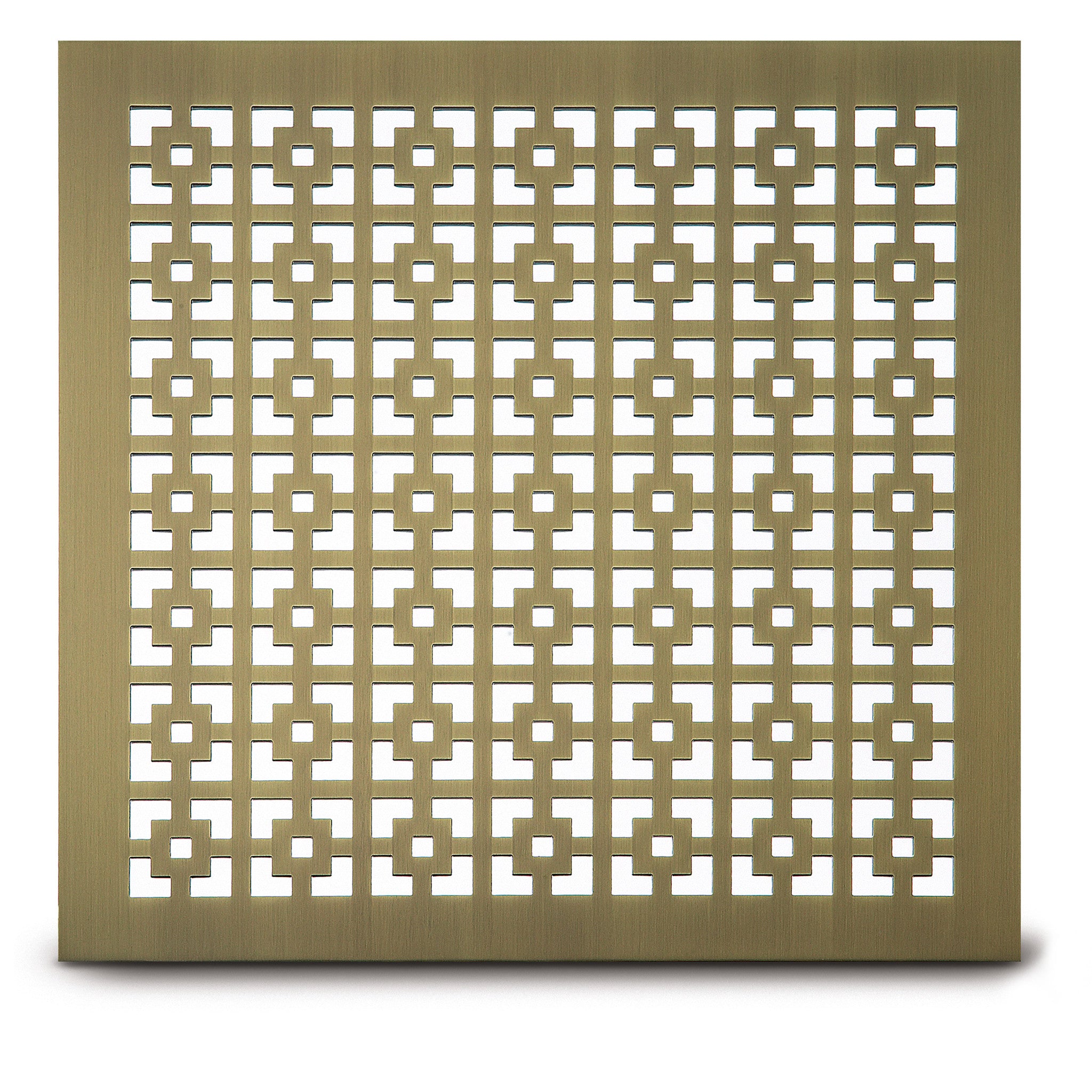

  • 1¼” pattern - 40% open area

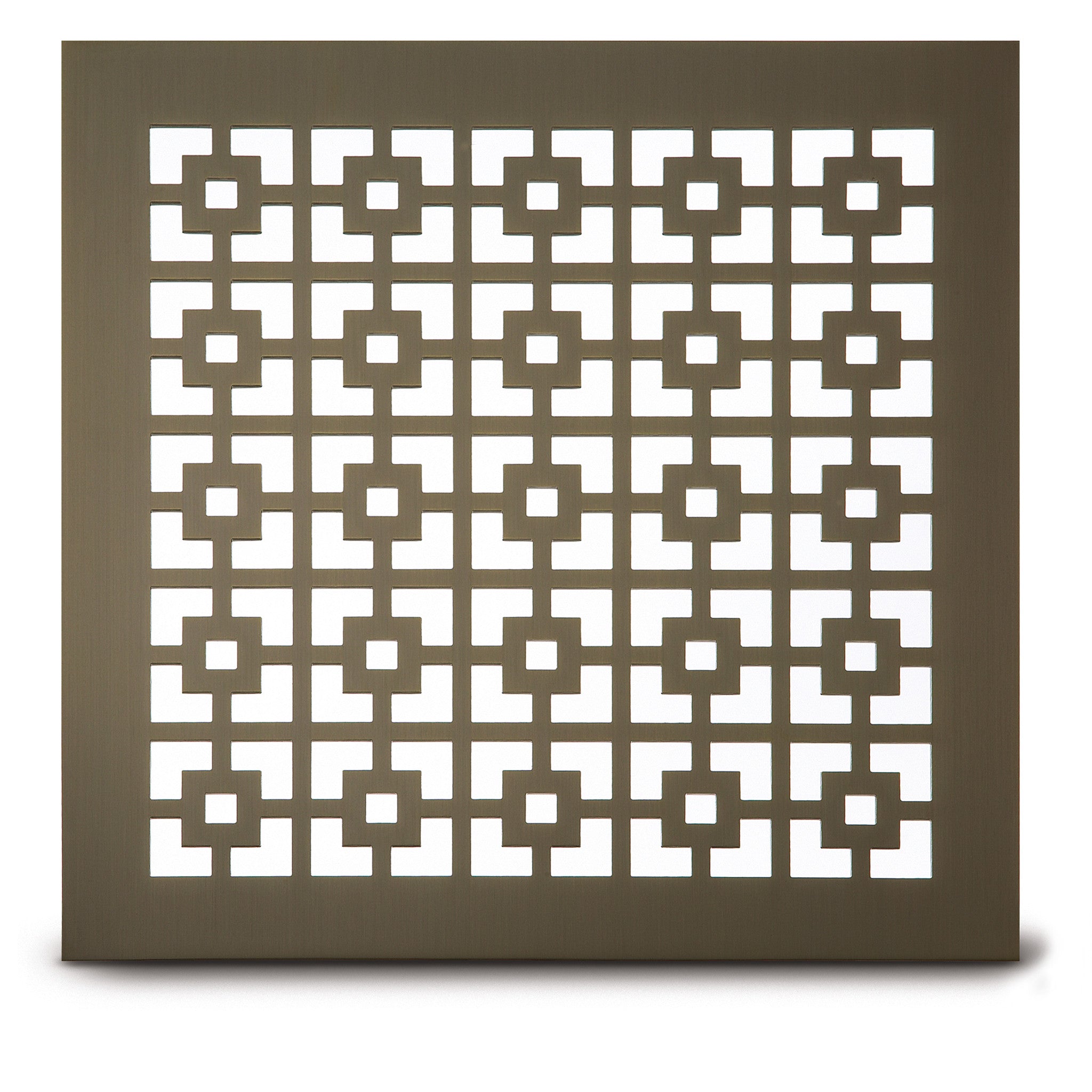

  • 1¾” pattern - 49% open area

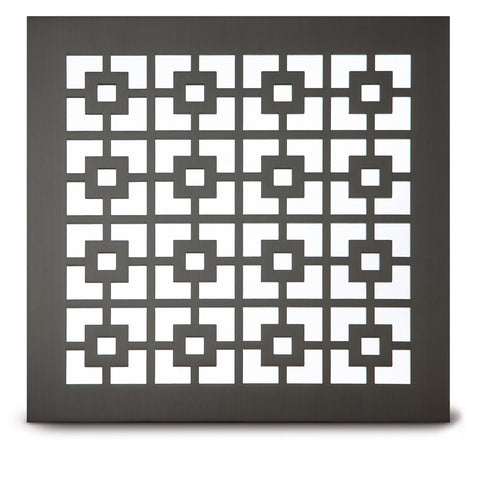

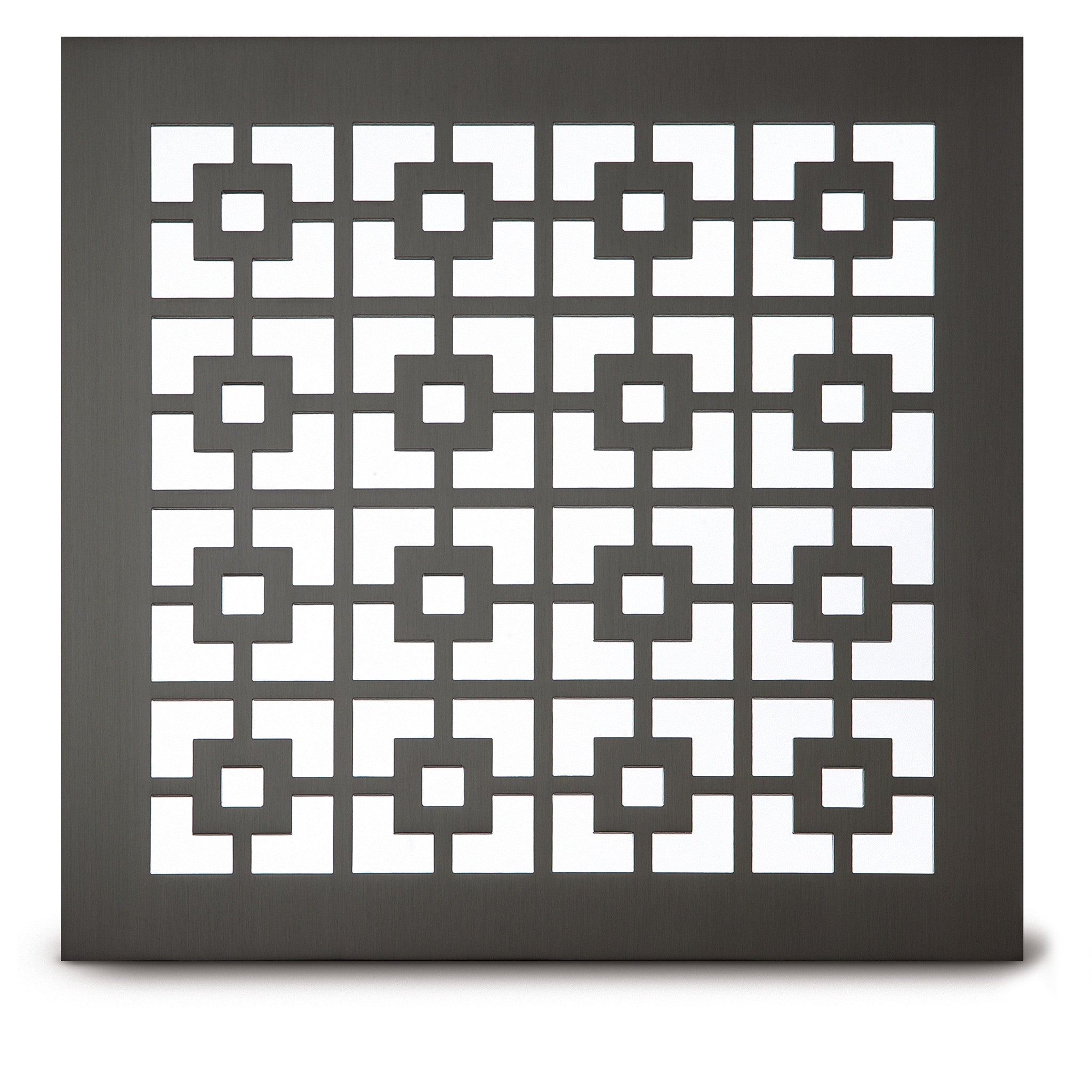

  • 2¼” pattern - 56% open area
Material Punched Thickness* (Min-Max)
Aluminum 1/16" - 1/8" Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors
Brass 1/16" - 1/8"  Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark
Bronze 1/16" - 1/8" Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark
Stainless Steel 1/16" - 14 GA Satin, Mirror Polish
Steel 1/16" - 1/8" Raw, Primed, Powder Coating Colors

*NOTE: Additional thicknesses available – please ask your estimator for details.

Register / Login to Access Cutsheets and CAD Details

Resources: For Fastening + Mounting Methods - refer to "Perforated Grilles"
