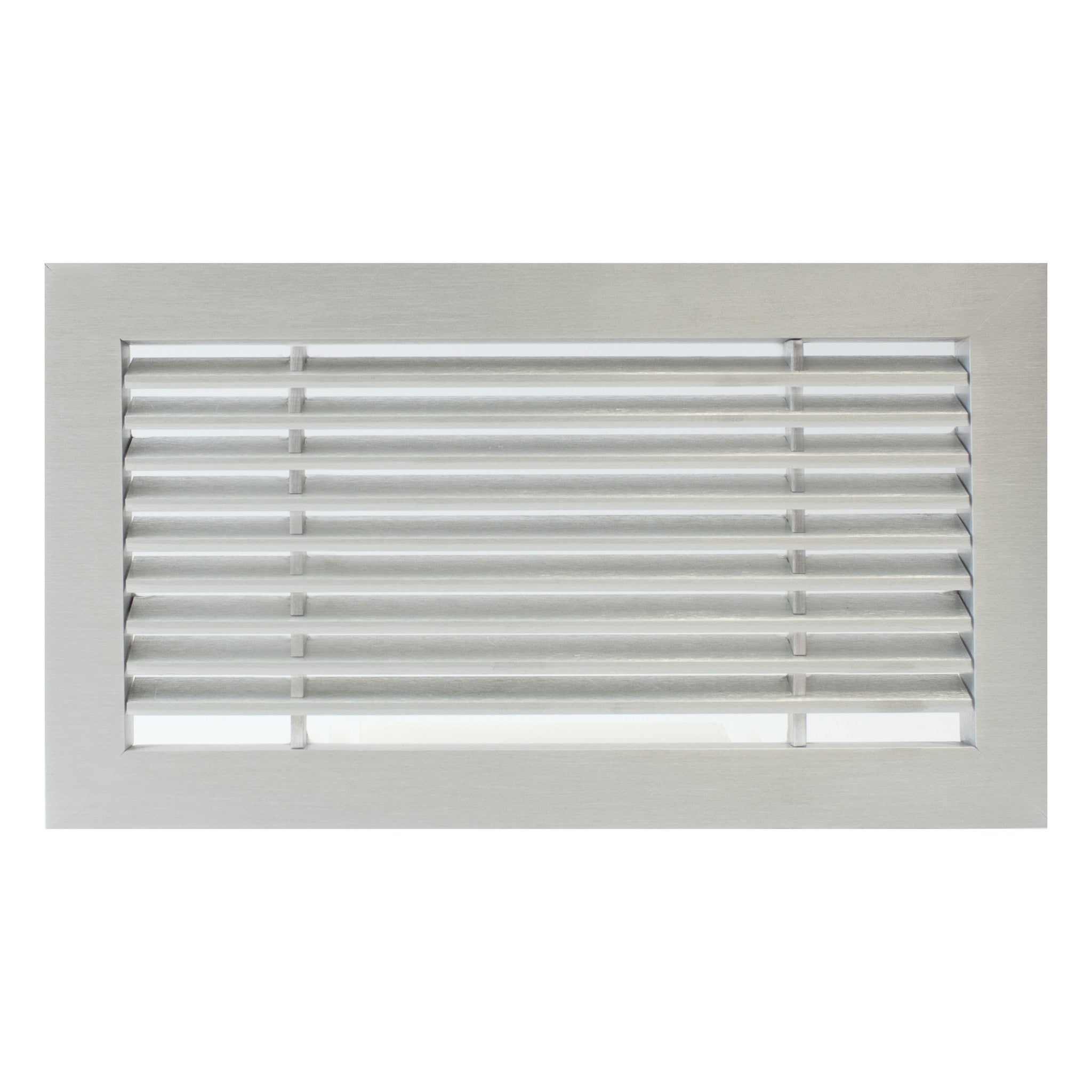

AG40 Bar Grille


Pin It Houzz

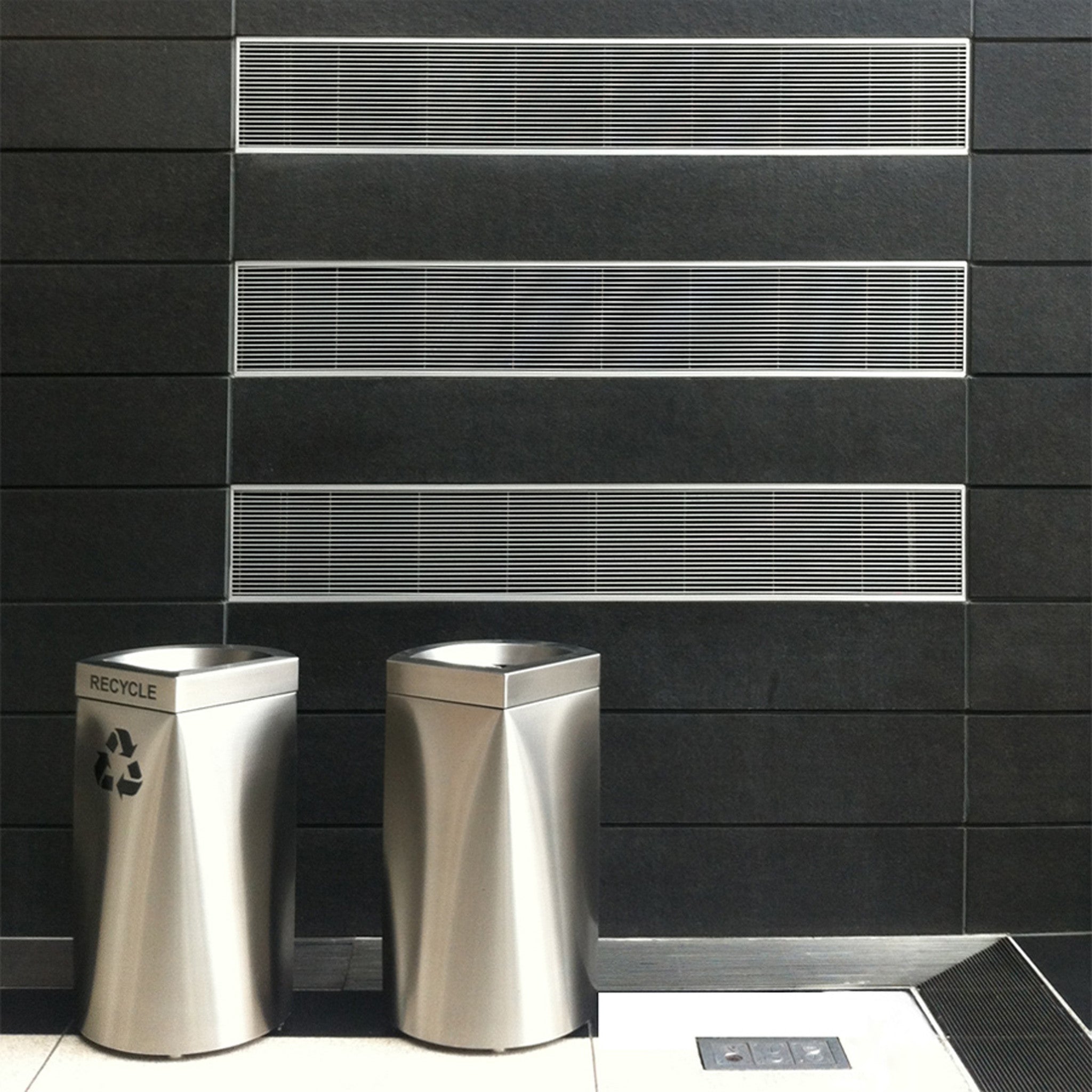

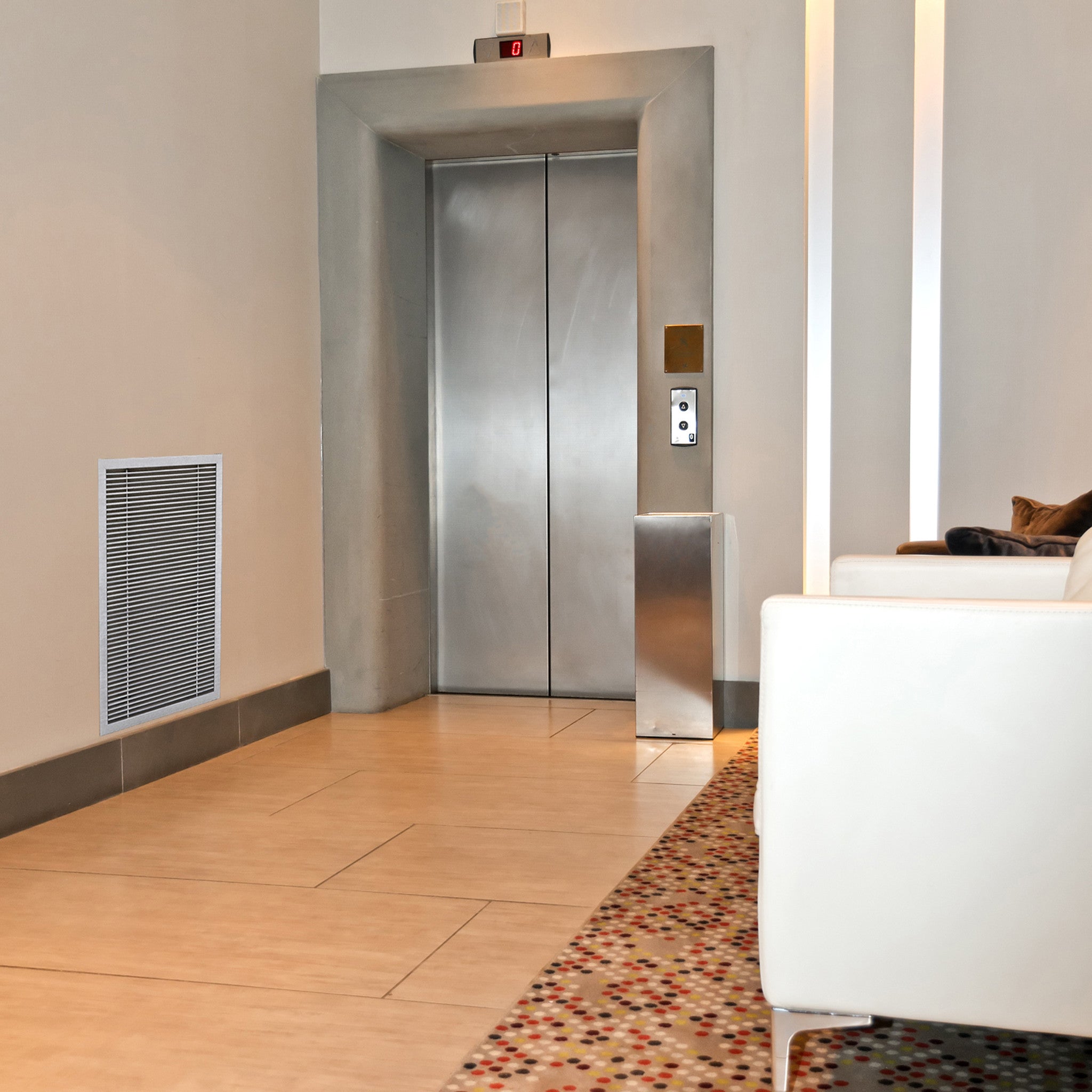

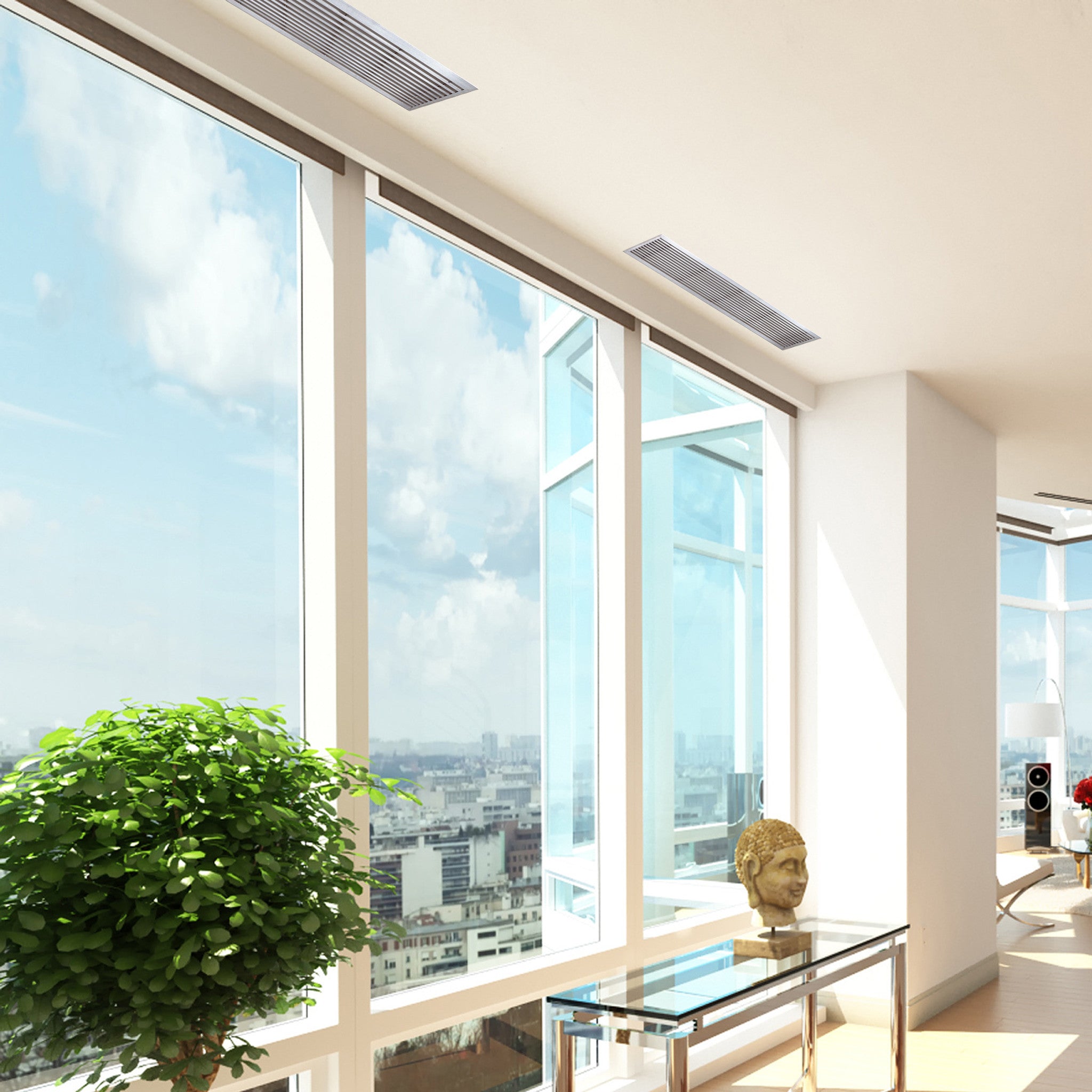

By using a minimal 16°deflection, the AG40 Bar Grille was designed to deliver air flow in a directional manner to ensure optimal comfort conditions in any room. Whether you have a commercial or residential project, the AG40 is ideal for floor, ceiling, wall or window sill applications where efficient performance needs to be combined with aesthetic architectural properties to create an advance and architecturally pleasing linear bar grille.

The AG40 Bar Grille is available in a variety of materials and finishes, and can be customized to your needs and project standards. Request a quote.

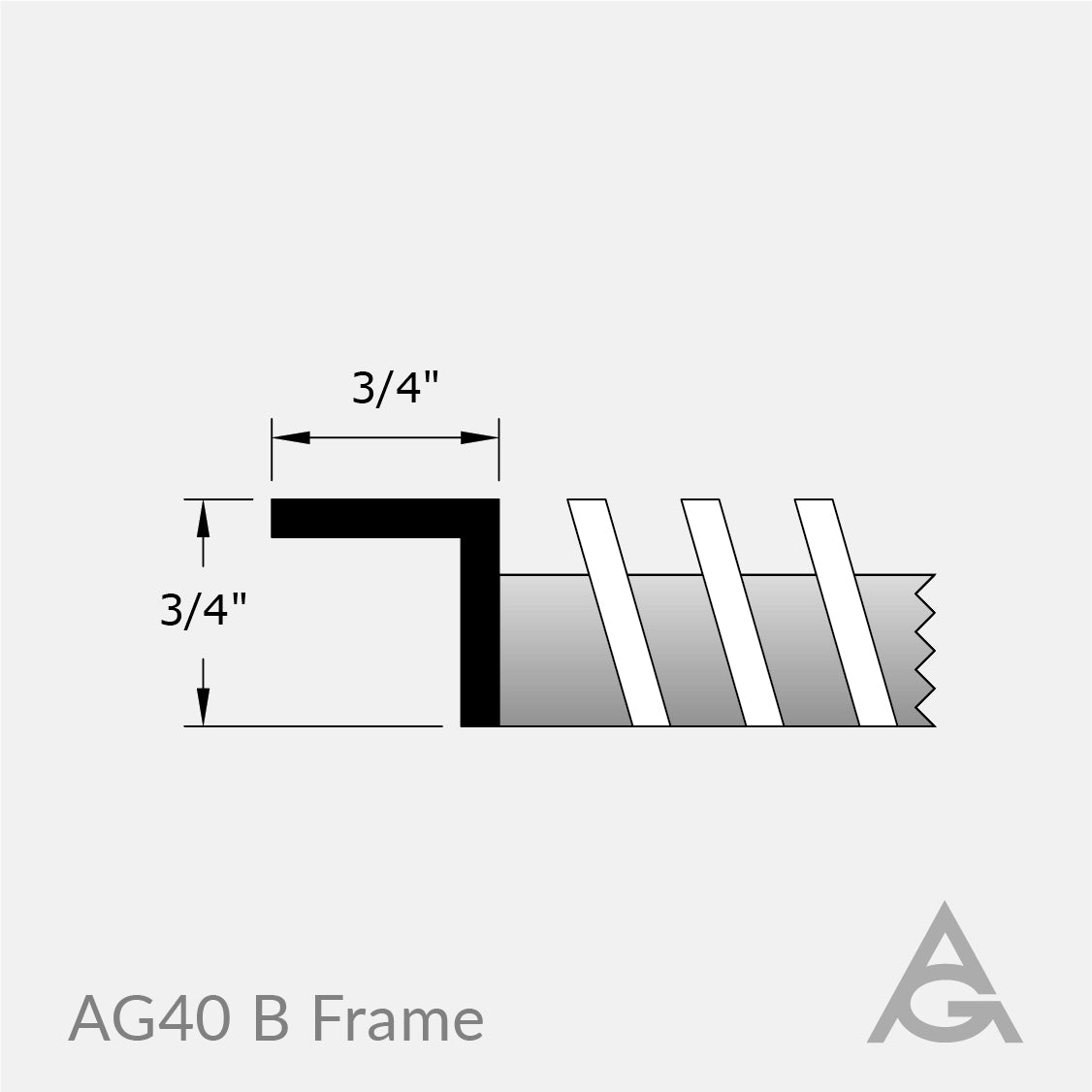

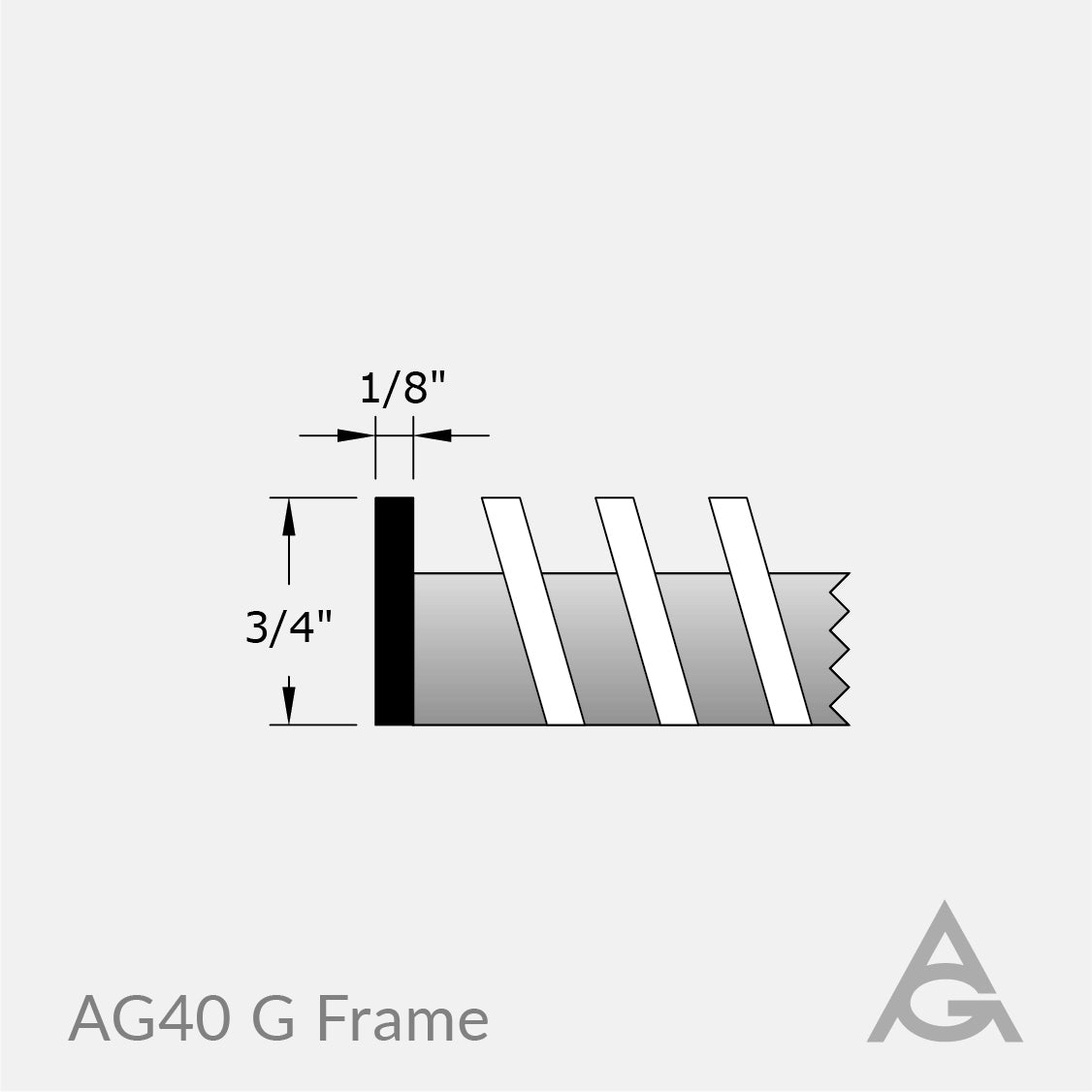

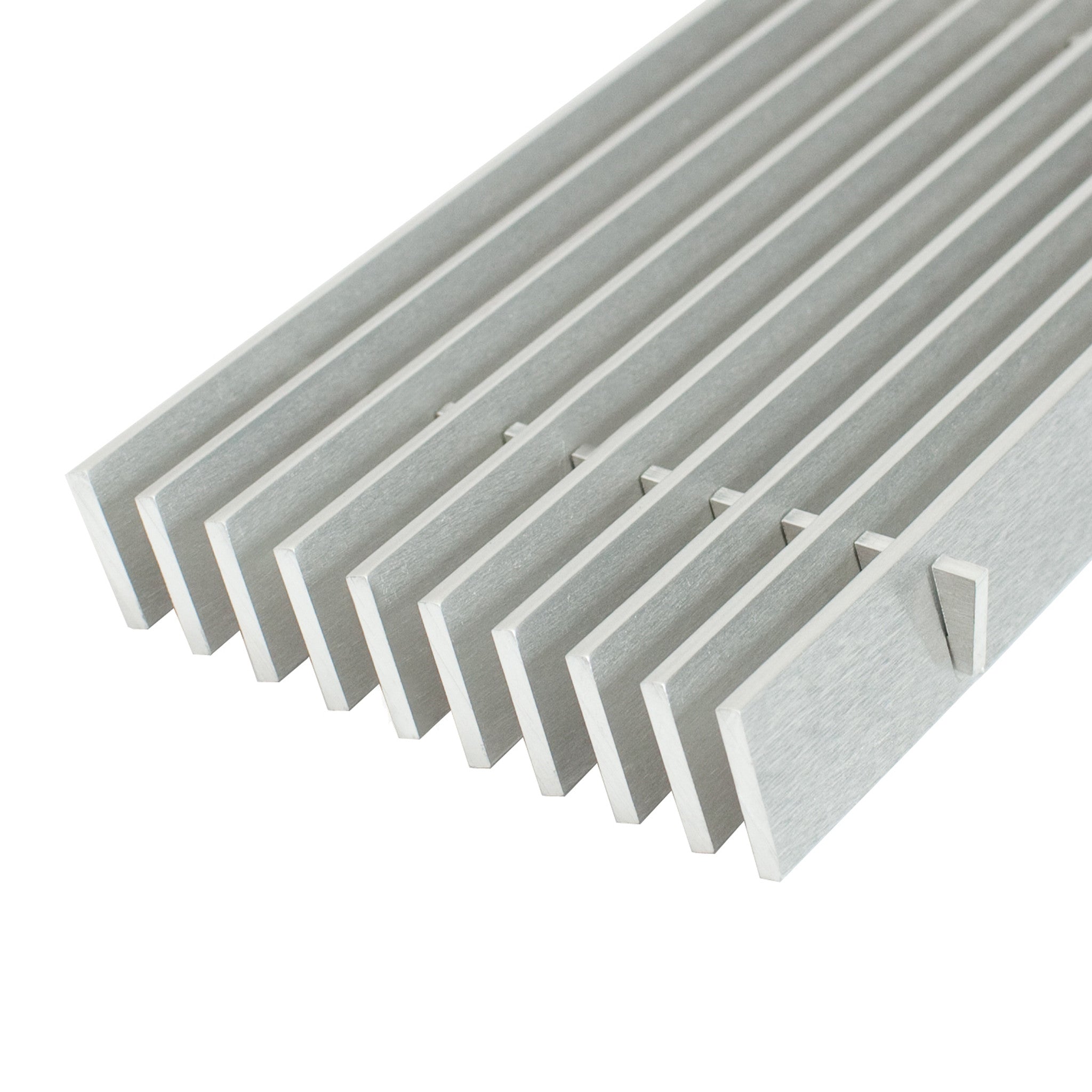

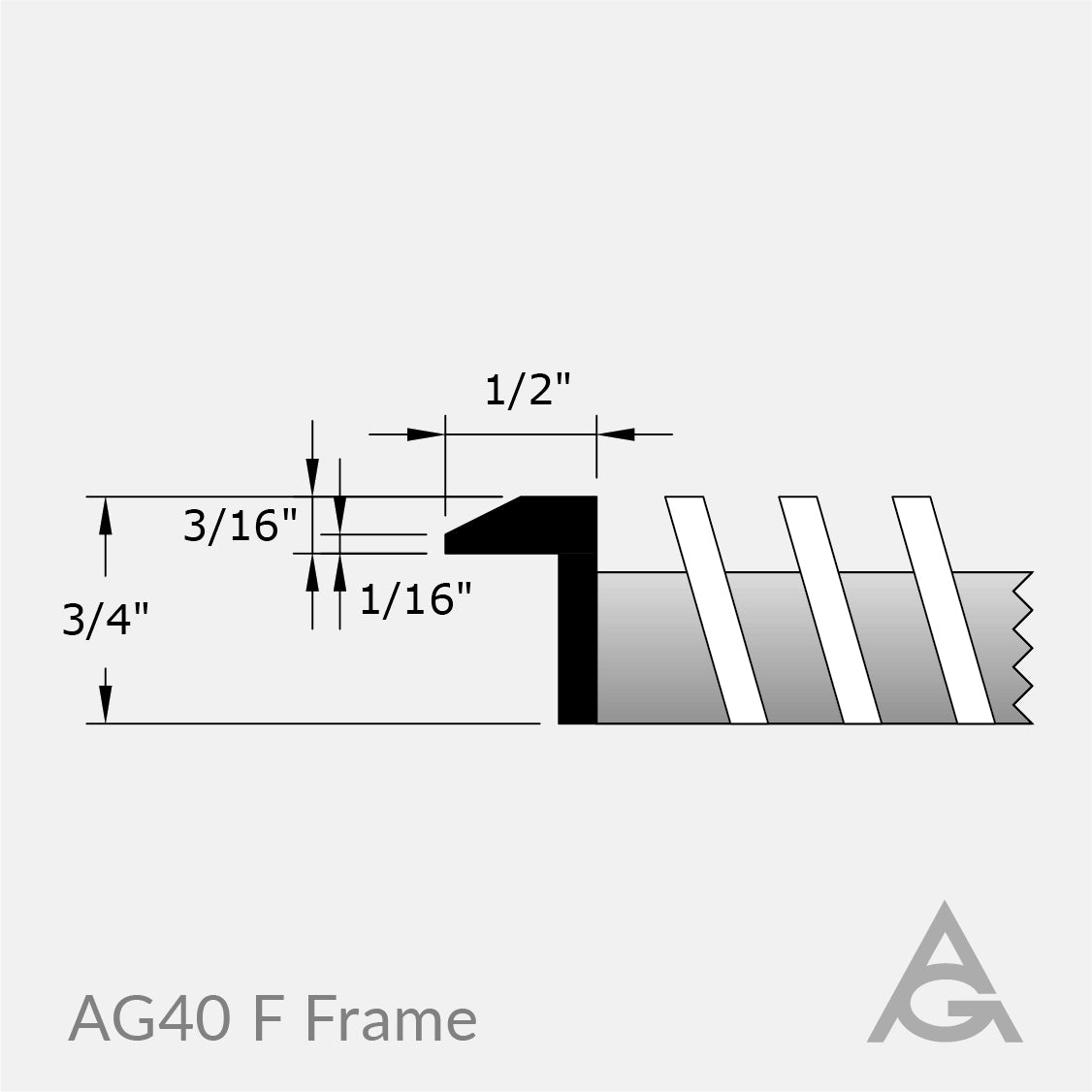

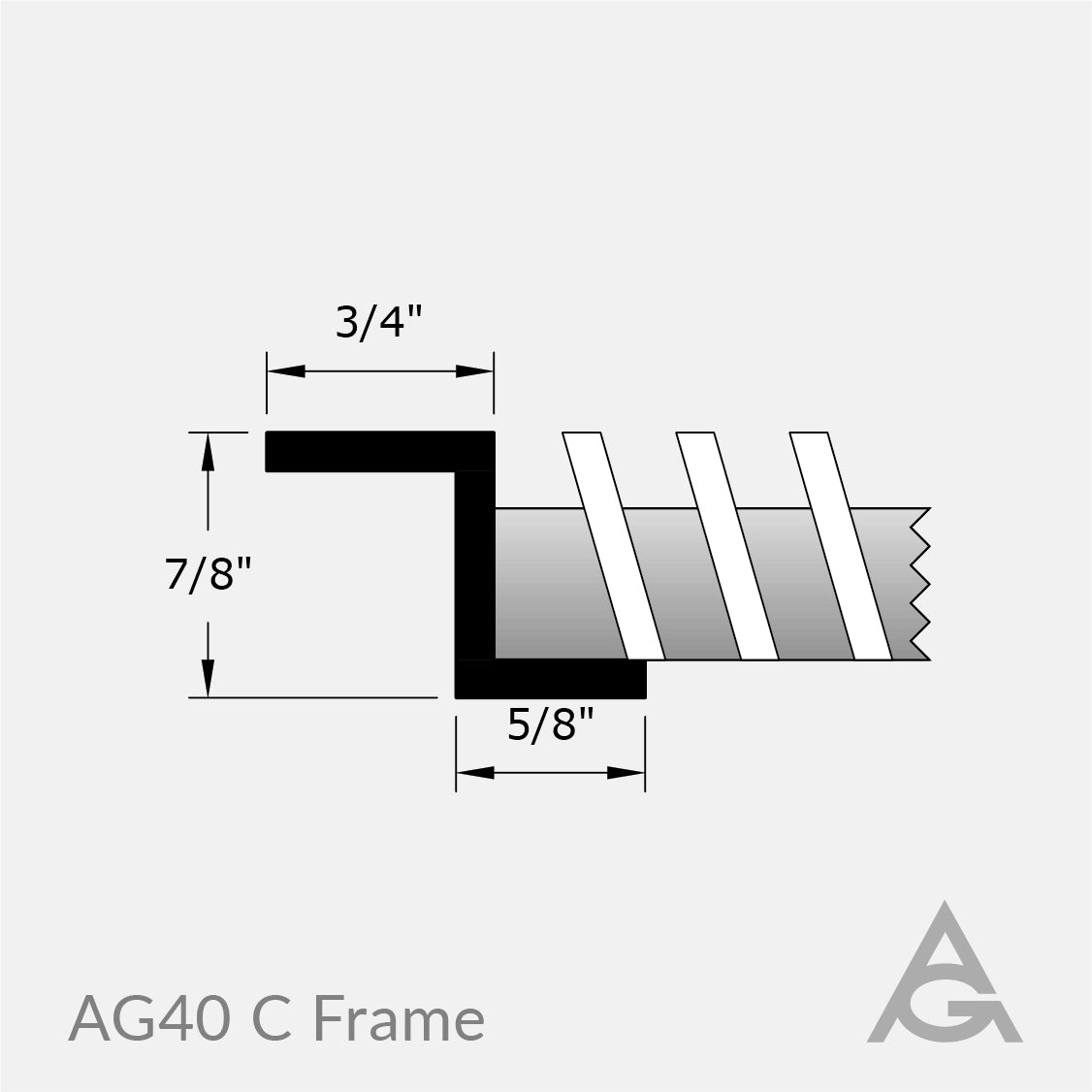

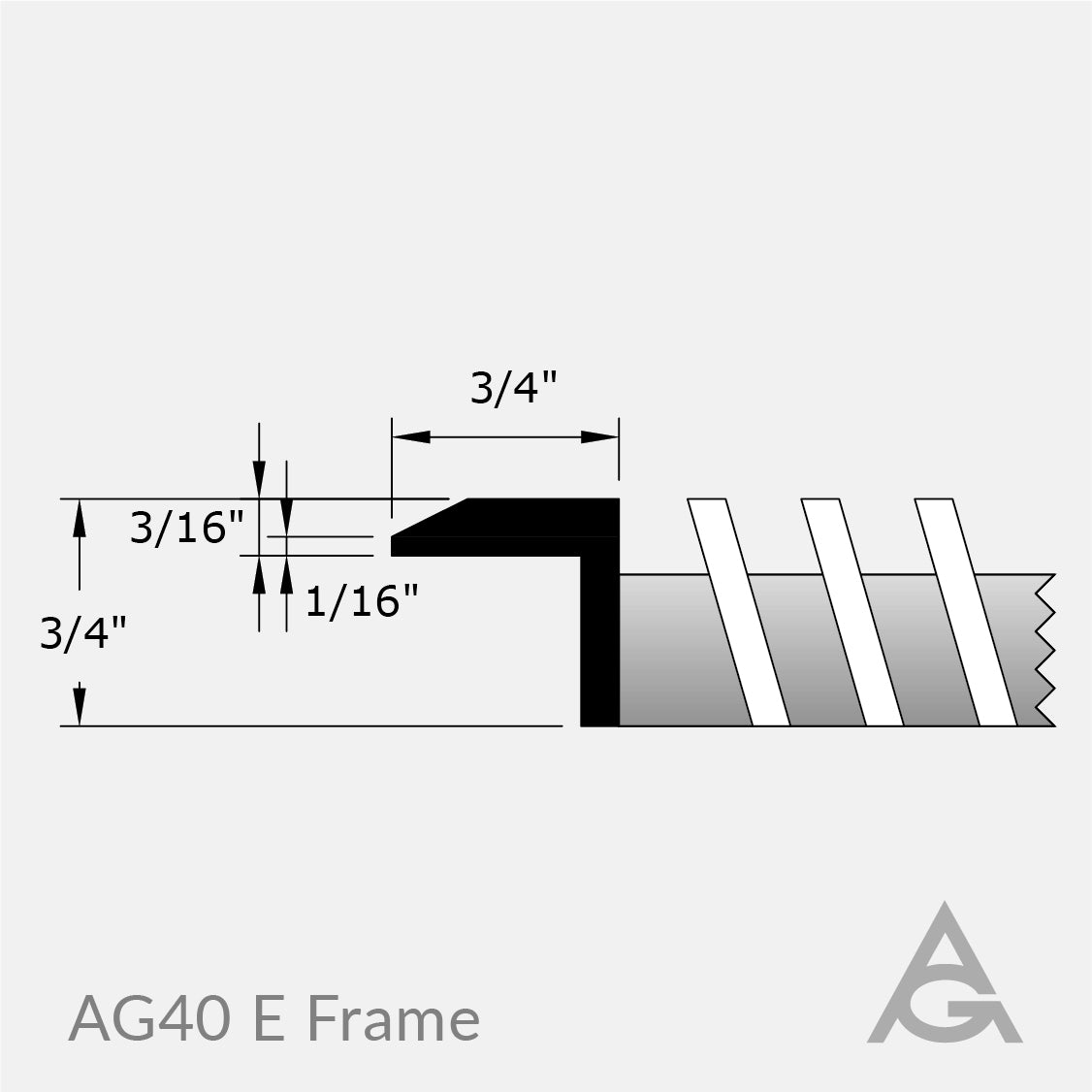

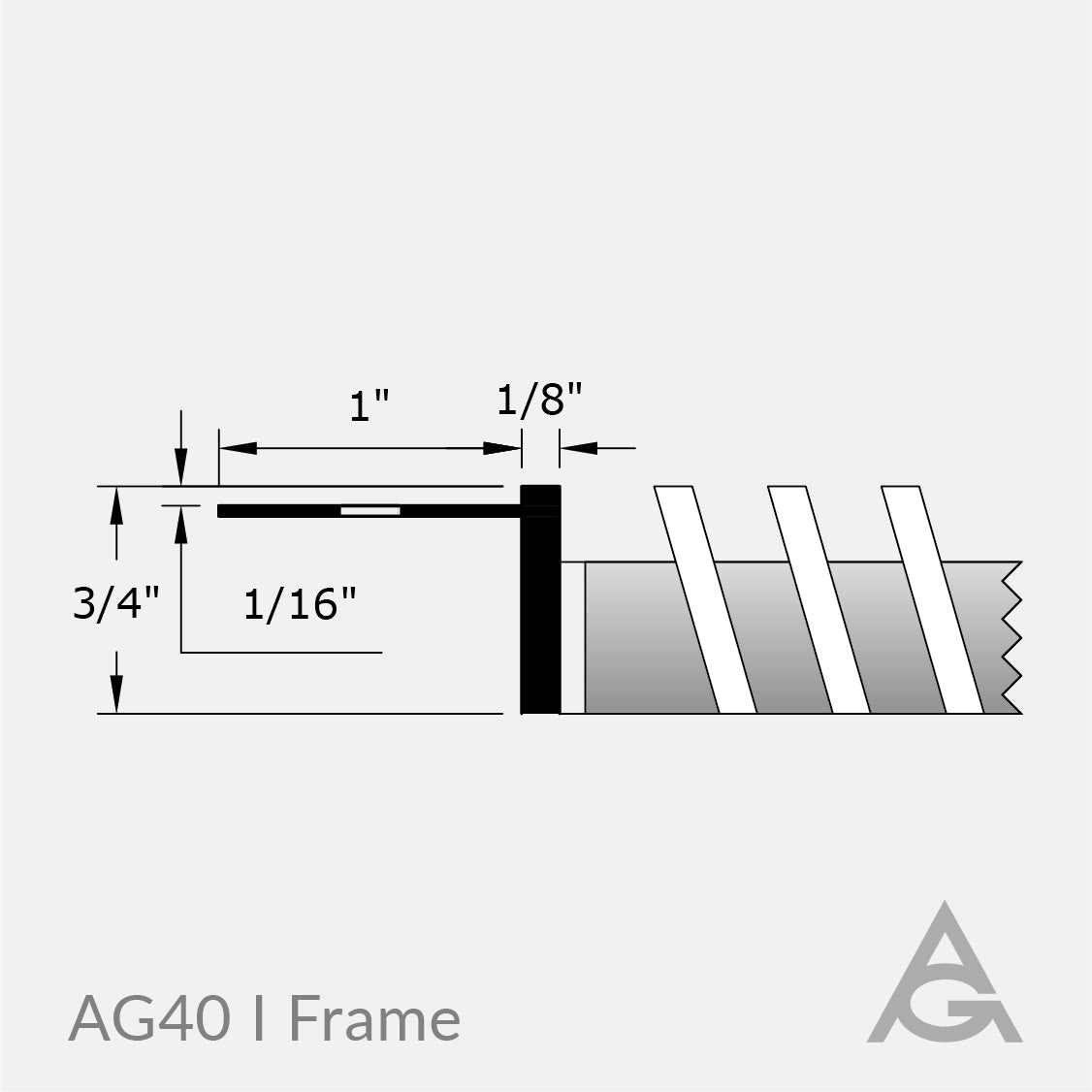

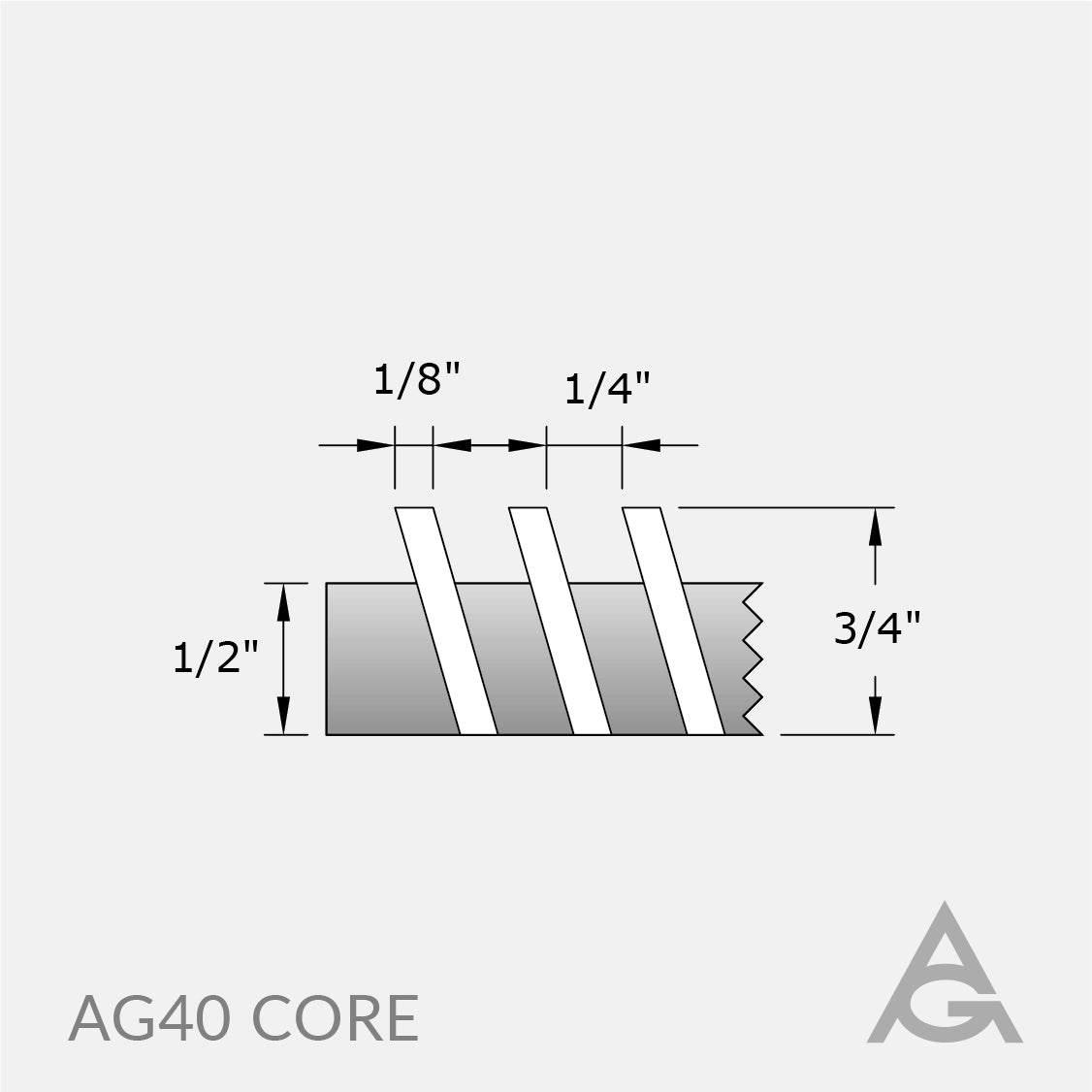

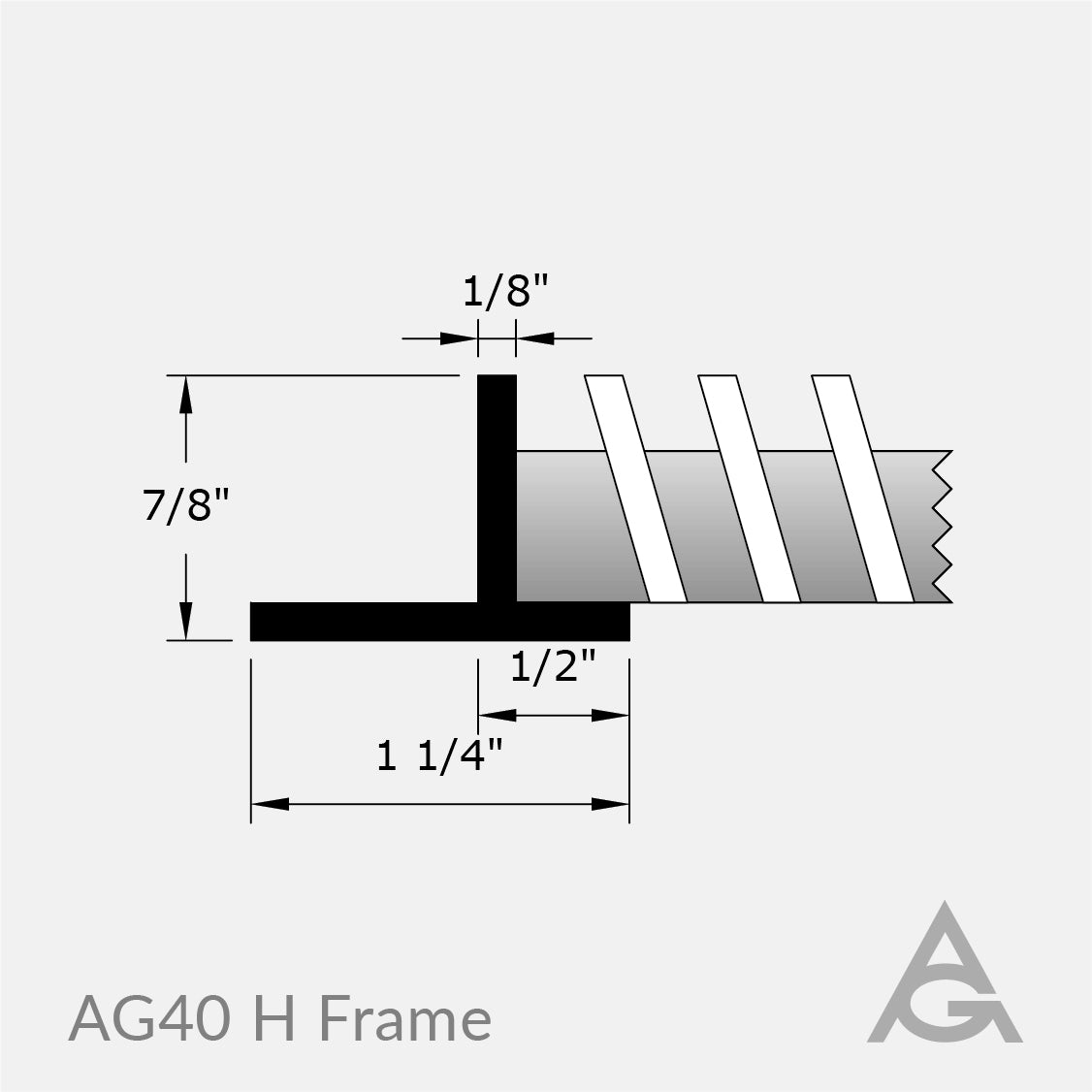

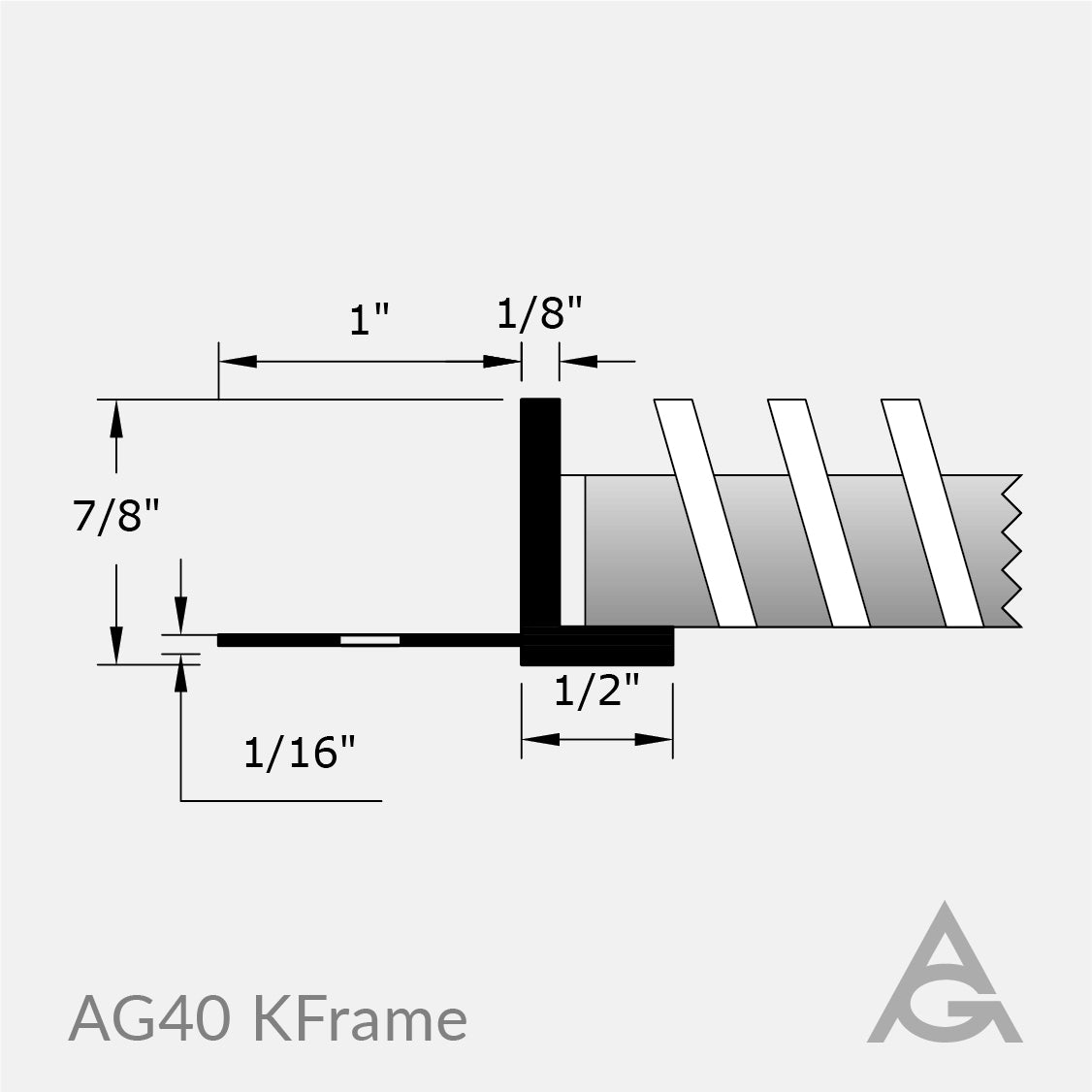

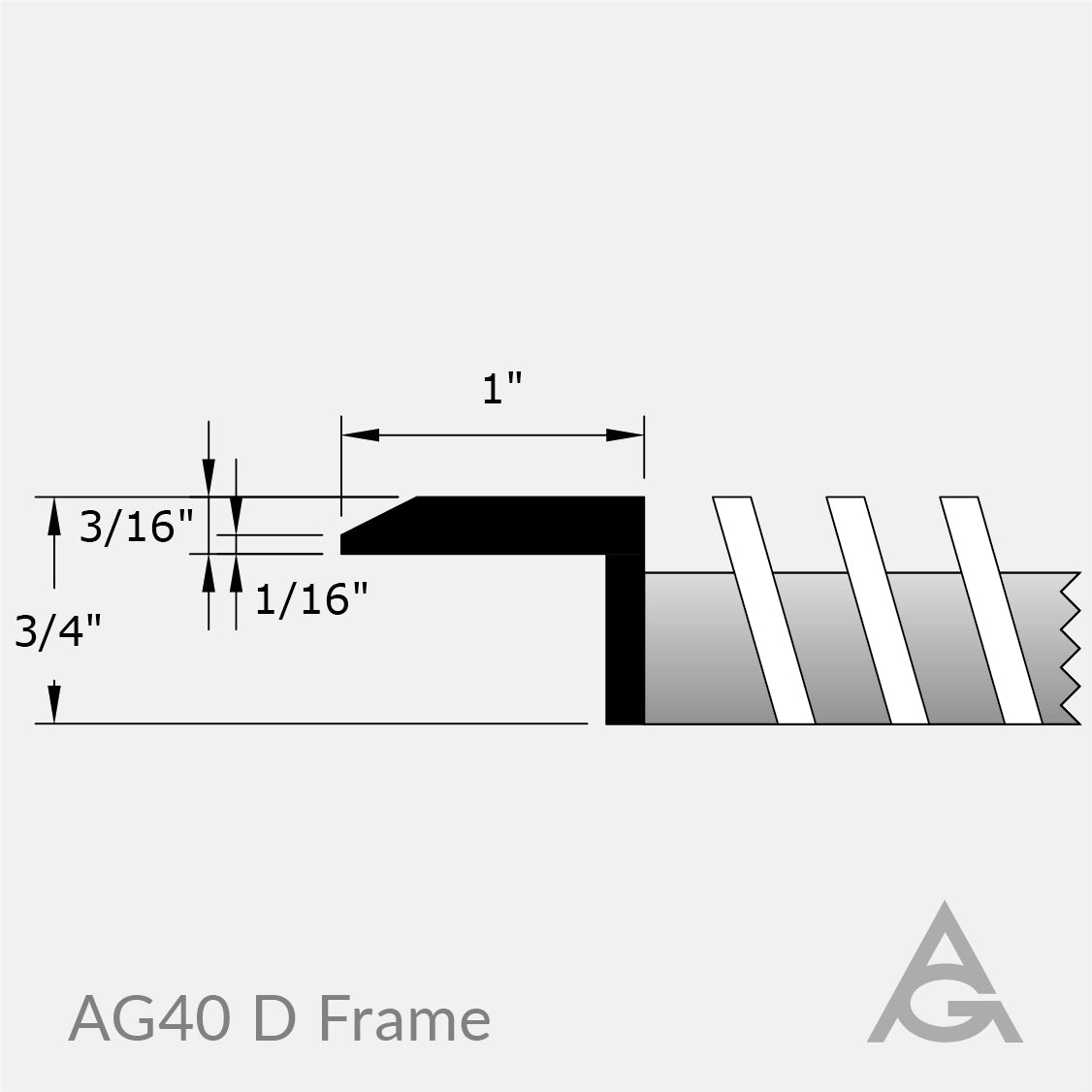

AG40 Bar Grille styles include: Core; A Frame; B Frame; C Frame; D Frame; E Frame; F Frame; G Frame; J Frame (see thumbnails for individual cross-section profiles)

Standard Features:

  • 16° Deflection
  • Weld-Lock constructed for maximum durability
  • Pencil Proof: ¼” spacing between bars
  • Custom Spacing available

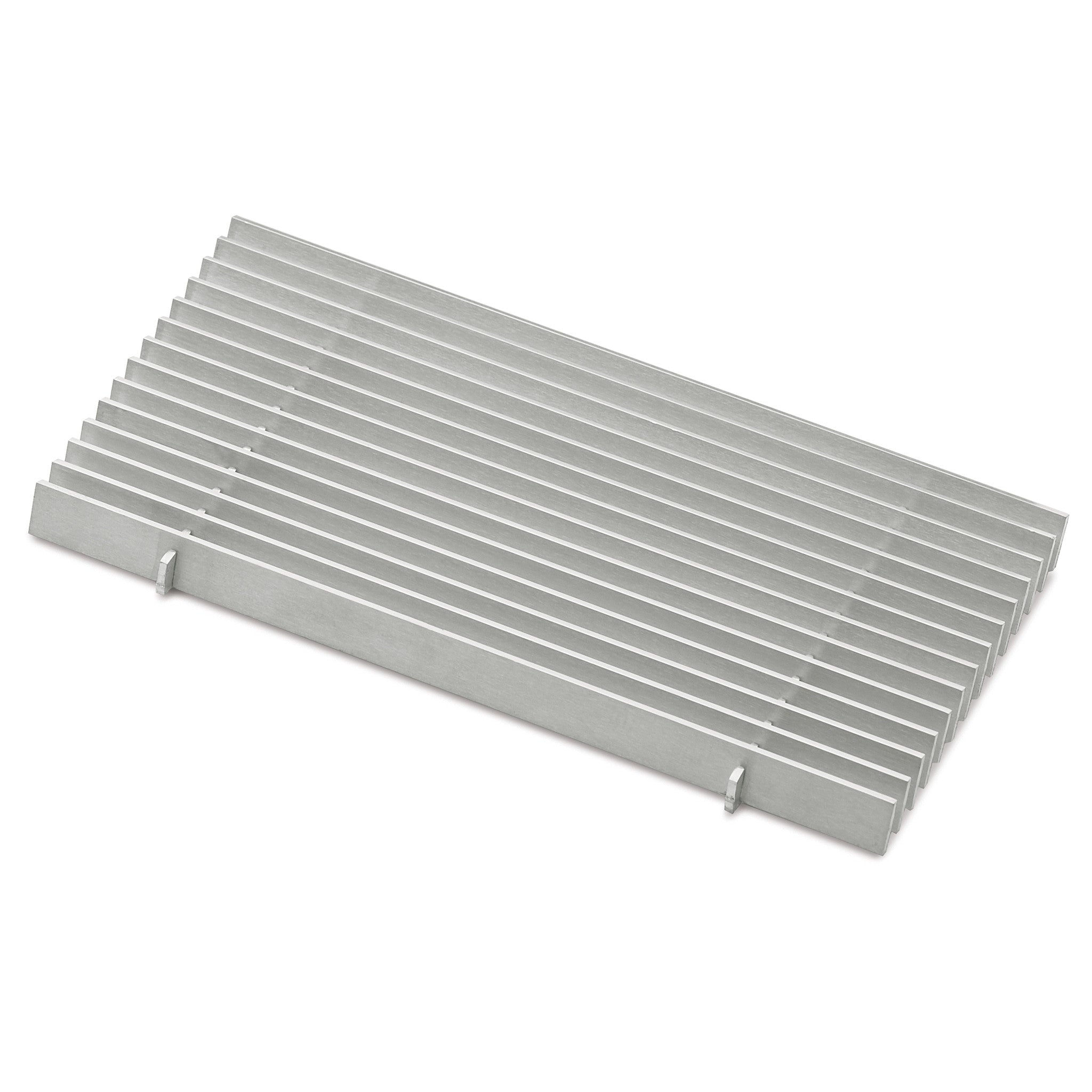

  • Core can be loose or welded to A, C or J Frames
  • Mitered Corners / Beveled Edges available
Material Finish
Aluminum Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors
Brass Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark
Bronze Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark
Stainless Steel  Satin, Mirror Polish

Downloads:


Cutsheet PDF

Product Page
PDF

DWG Design Files

Resources:


Fastening & Mounting Methods

Measuring Instructions

Finishes & Colors
