AG30 Bar Grille


Pin It Houzz

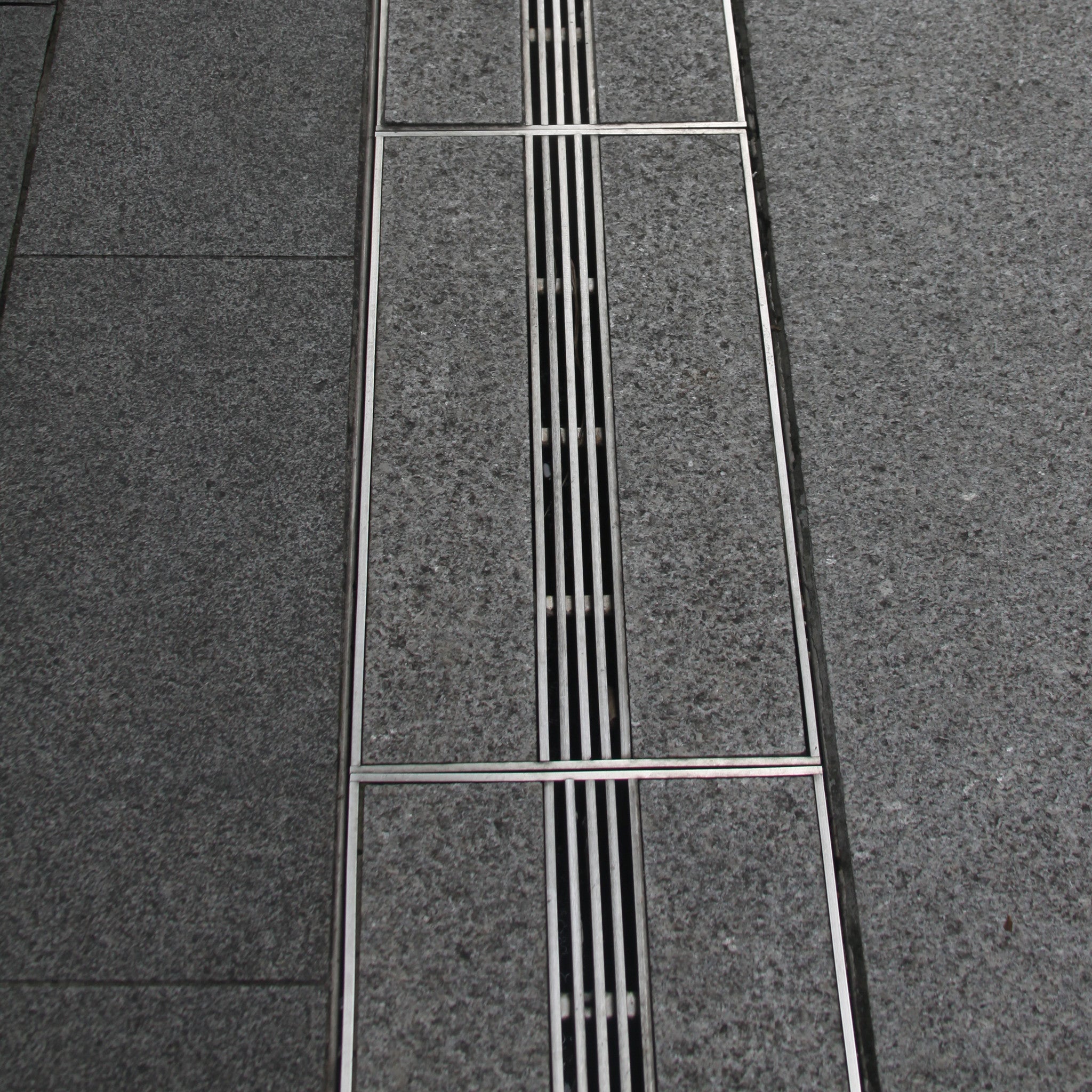

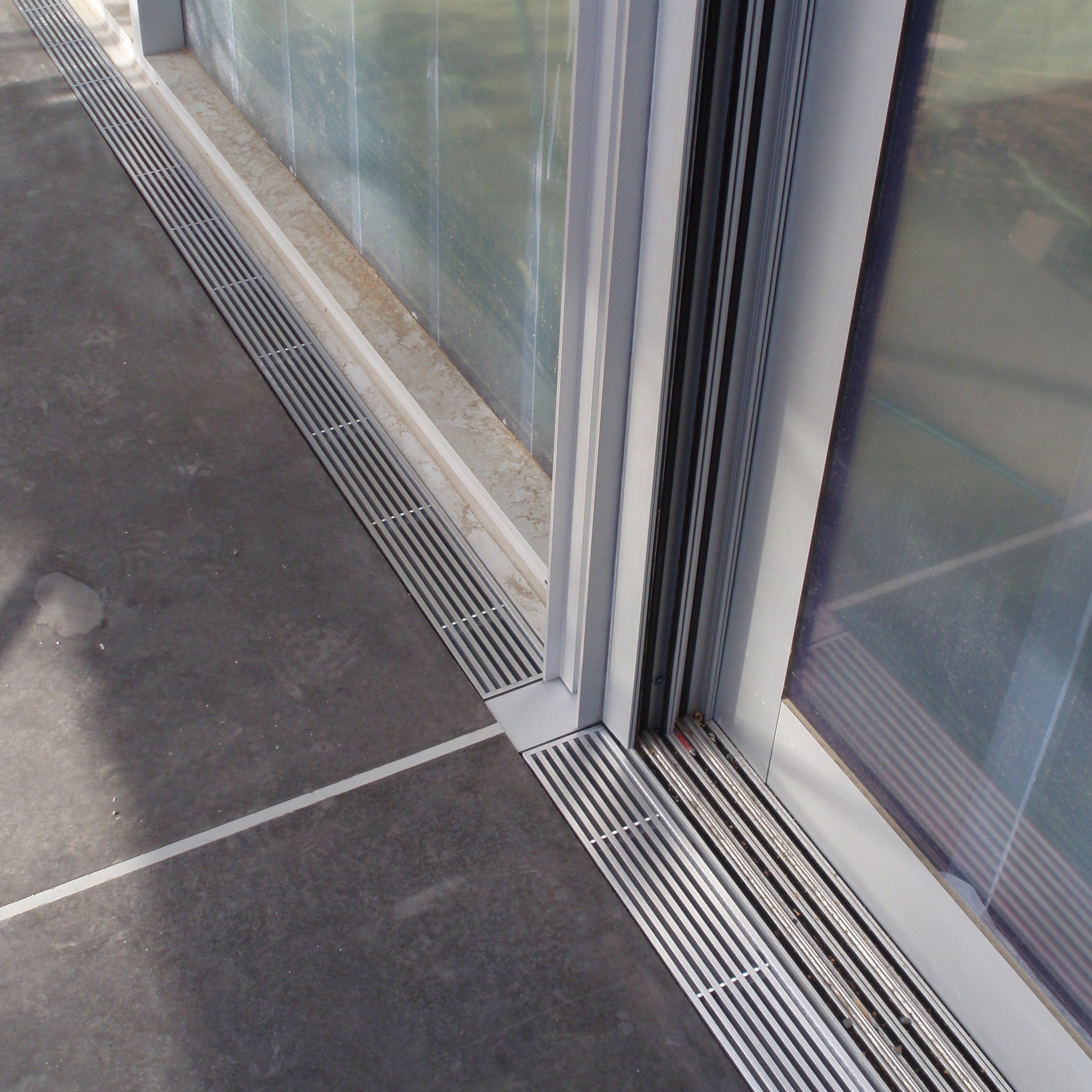

One of our most popular and aesthetically advanced models, the AG30 Bar Grille features zero deflection with broader fixed face blades than the AG10. This model is ideal for any high traffic surface floor application as well as side walls, ceiling and window sills on your job site. Offering the best in high quality linear type air flow, the AG30 Bar Grille satisfies both architectural and engineering needs.

The AG30 Bar Grille is available in a variety of materials and finishes, and can be customized to your needs and project standards. Request a quote.

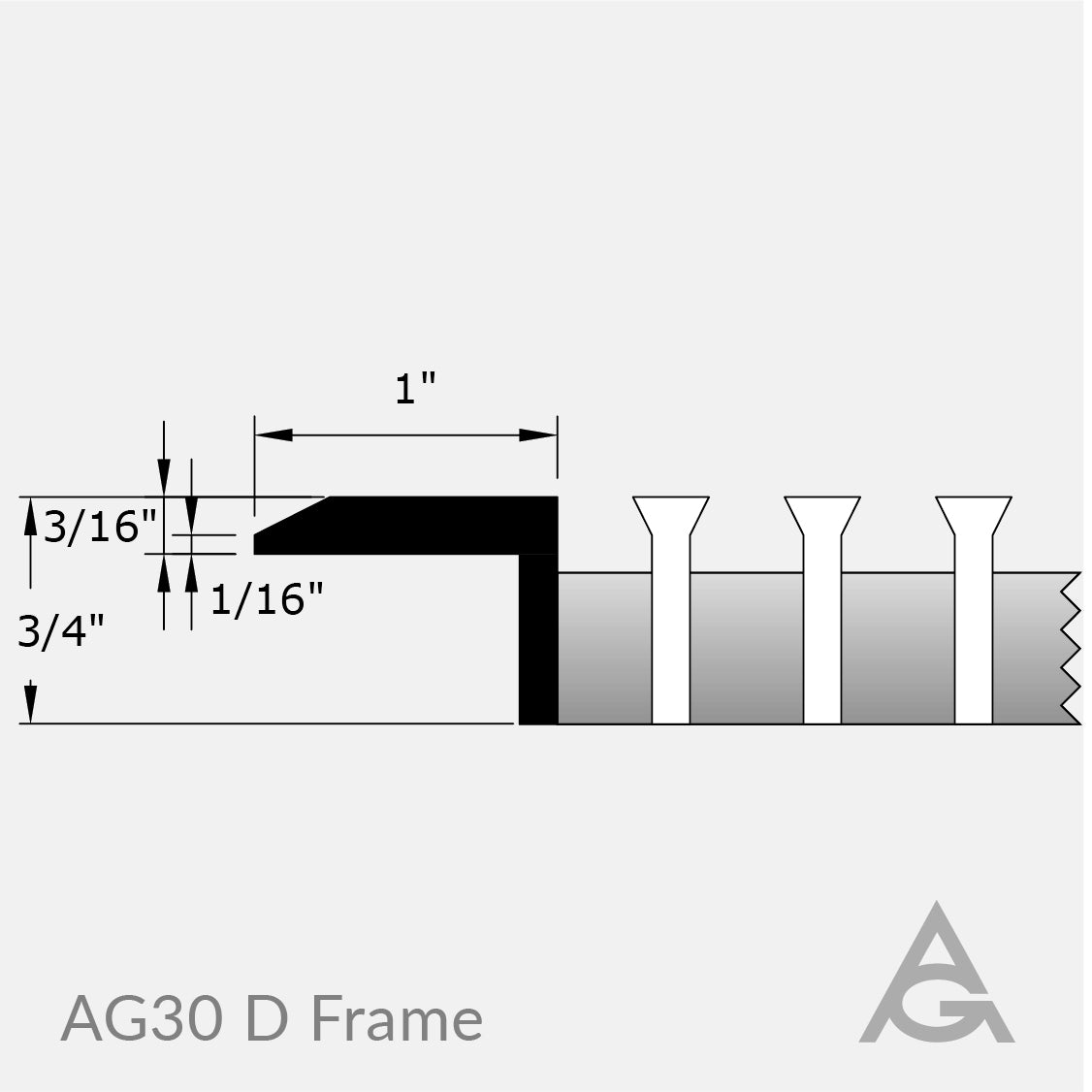

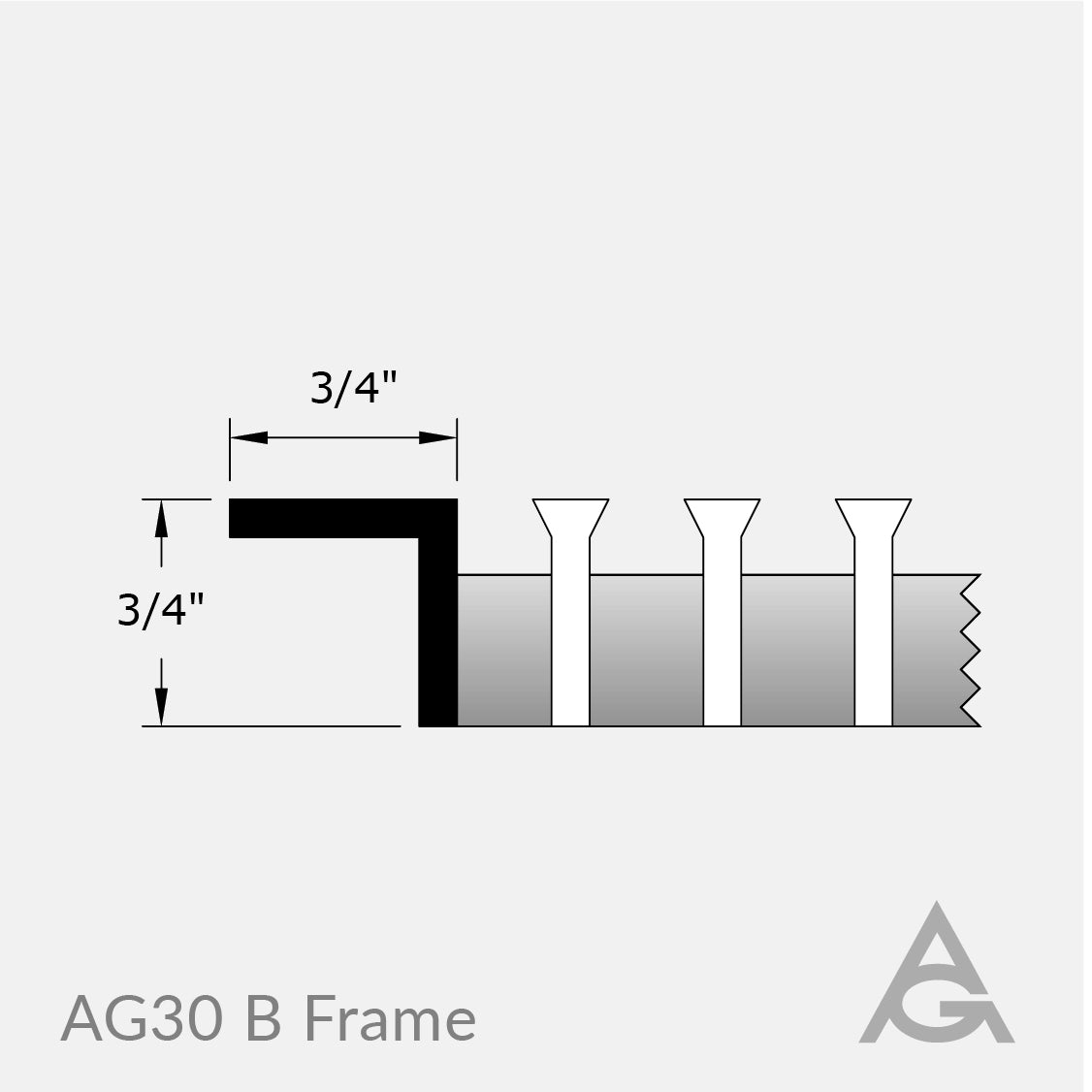

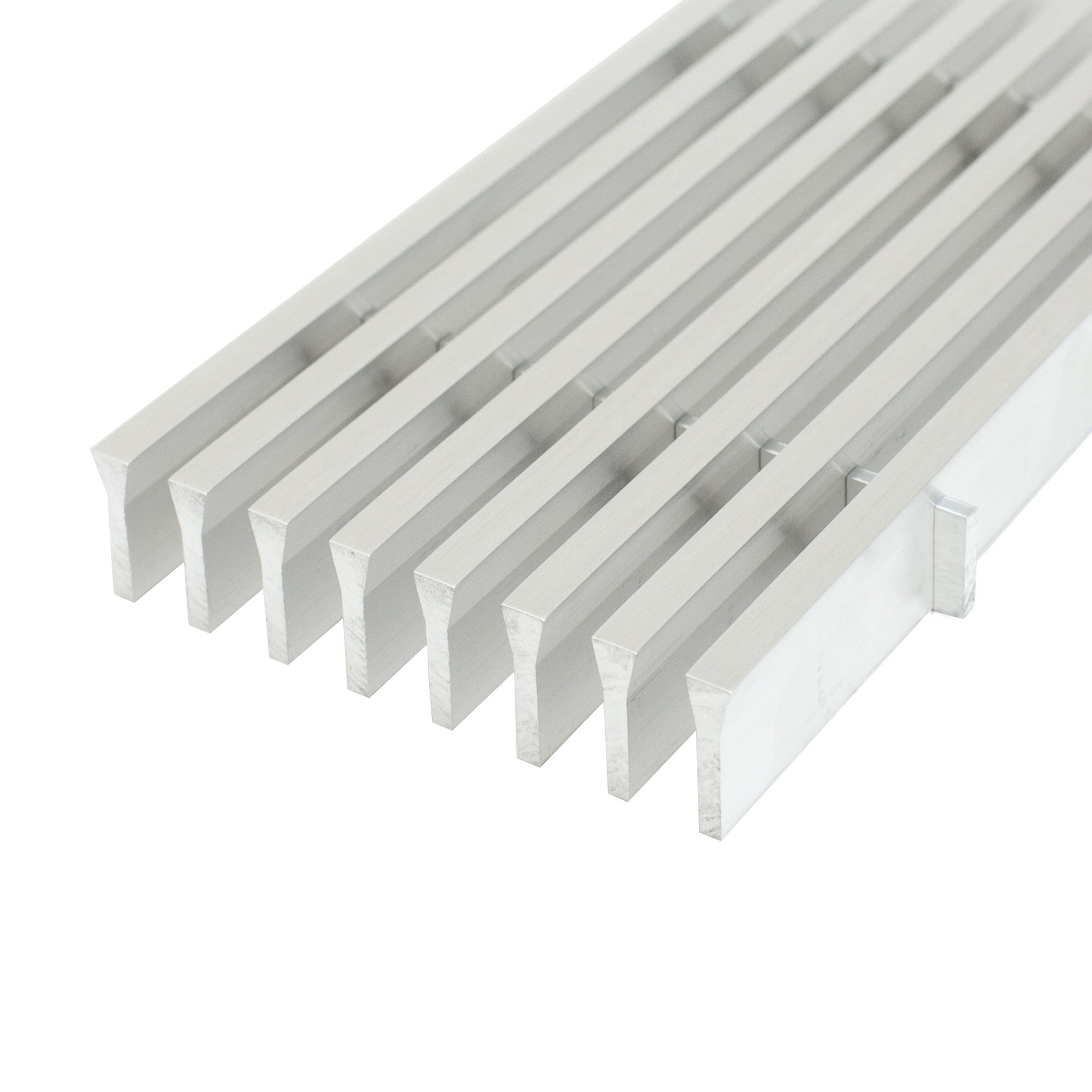

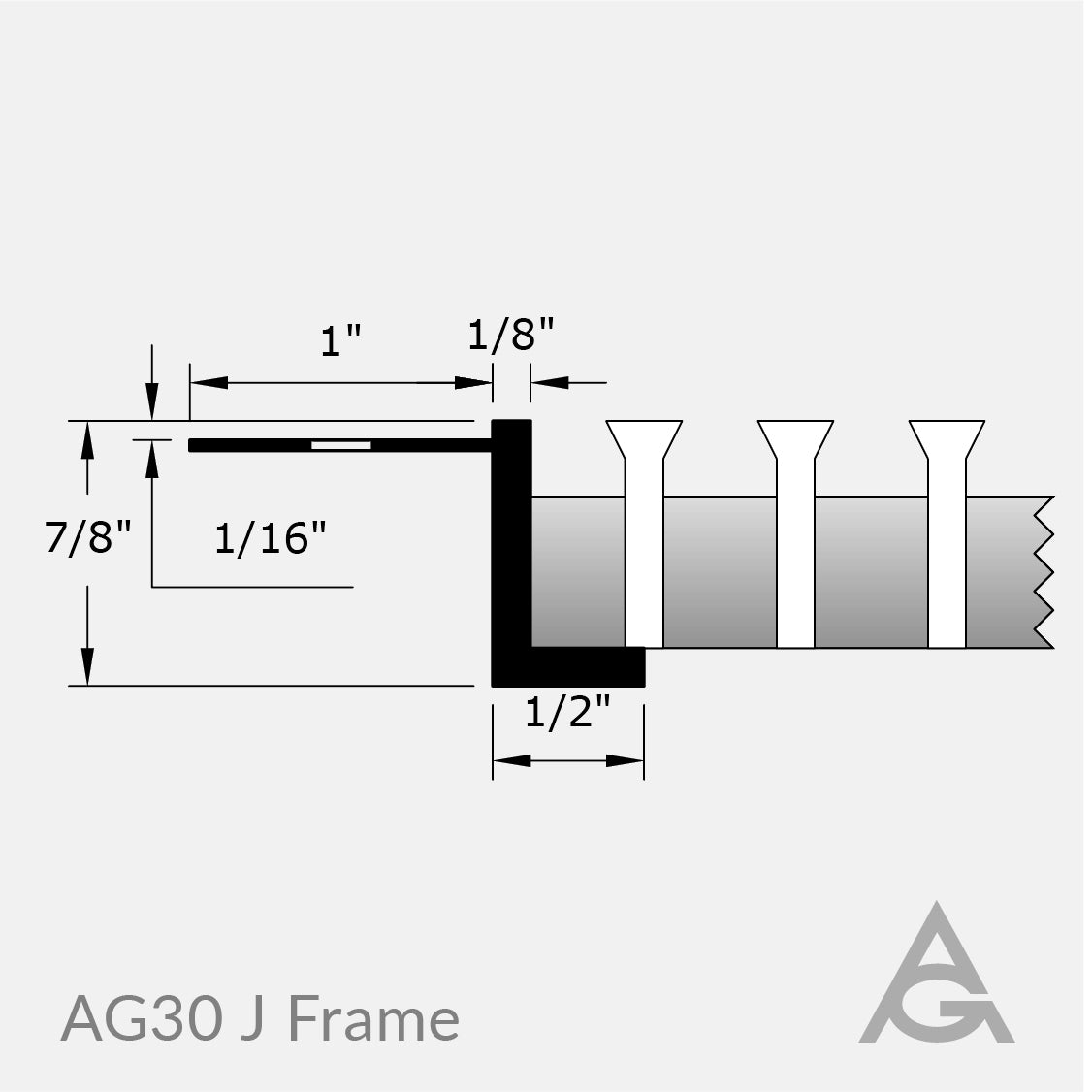

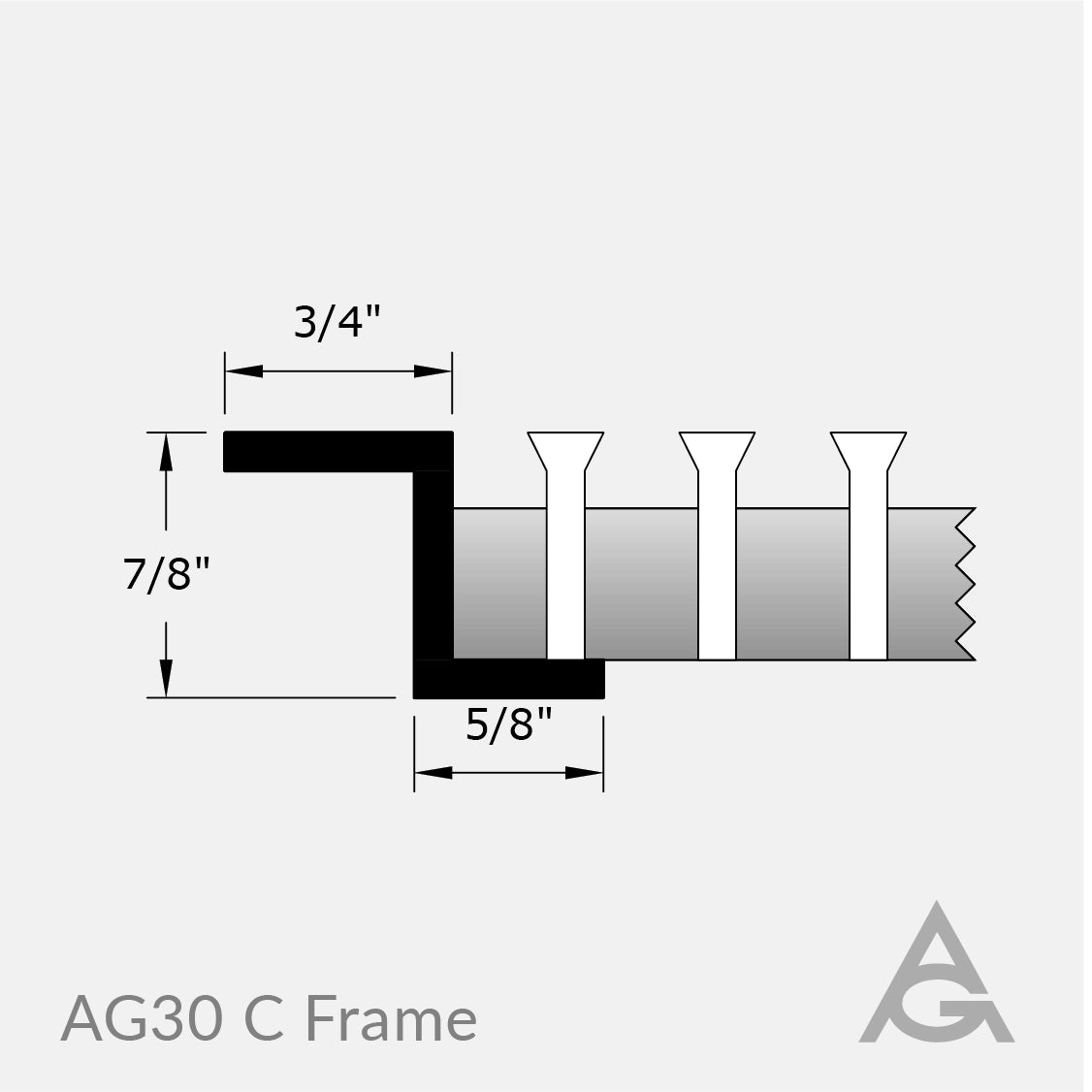

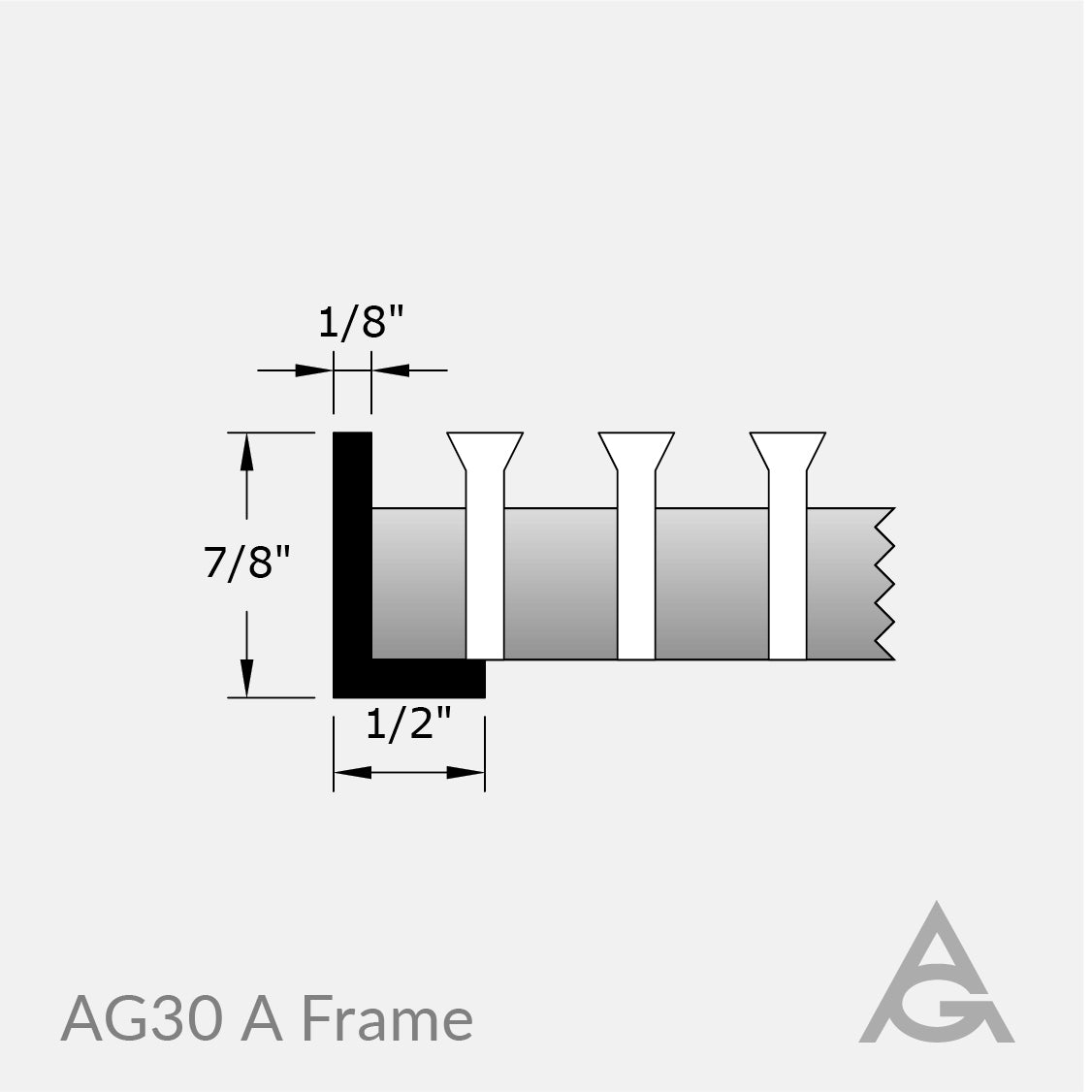

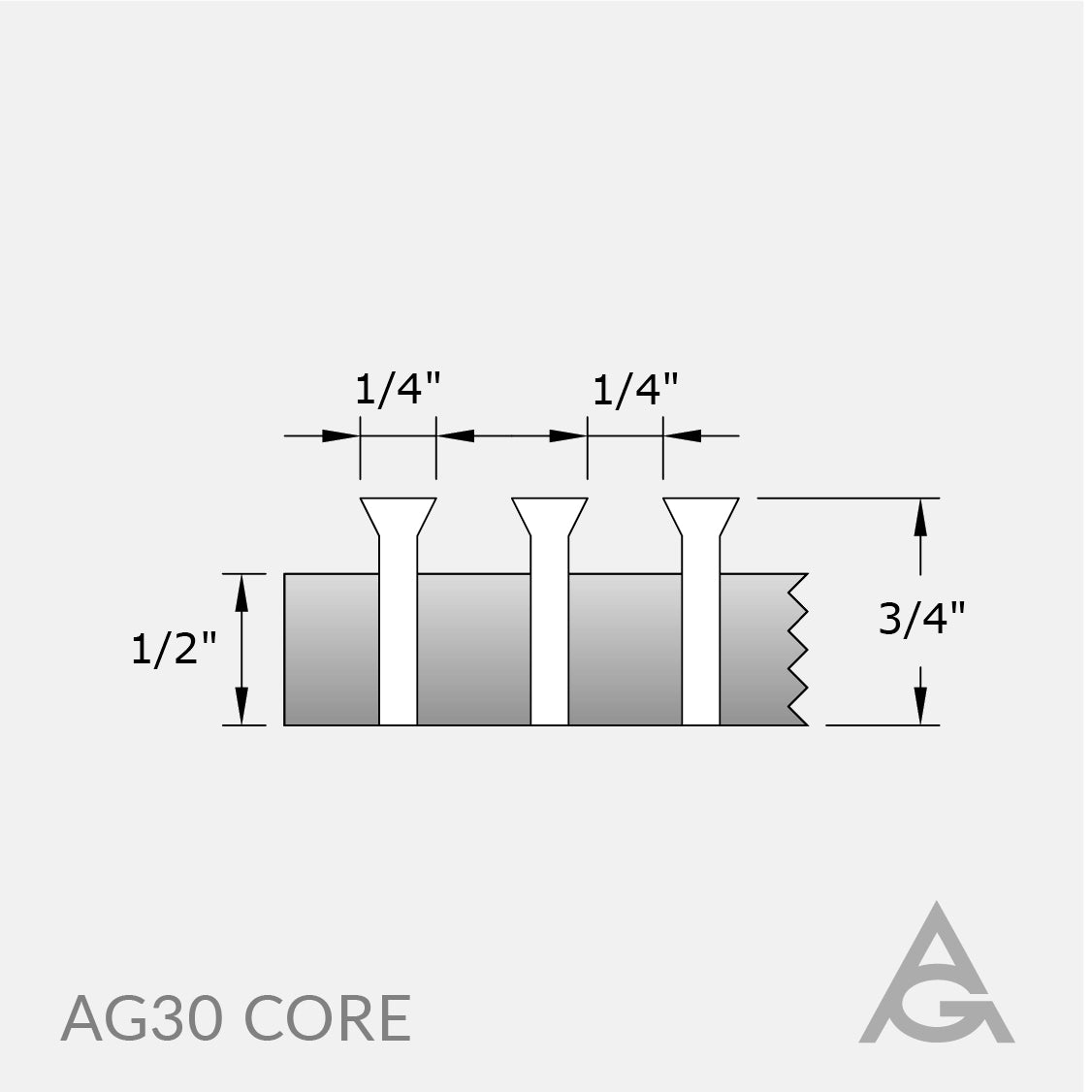

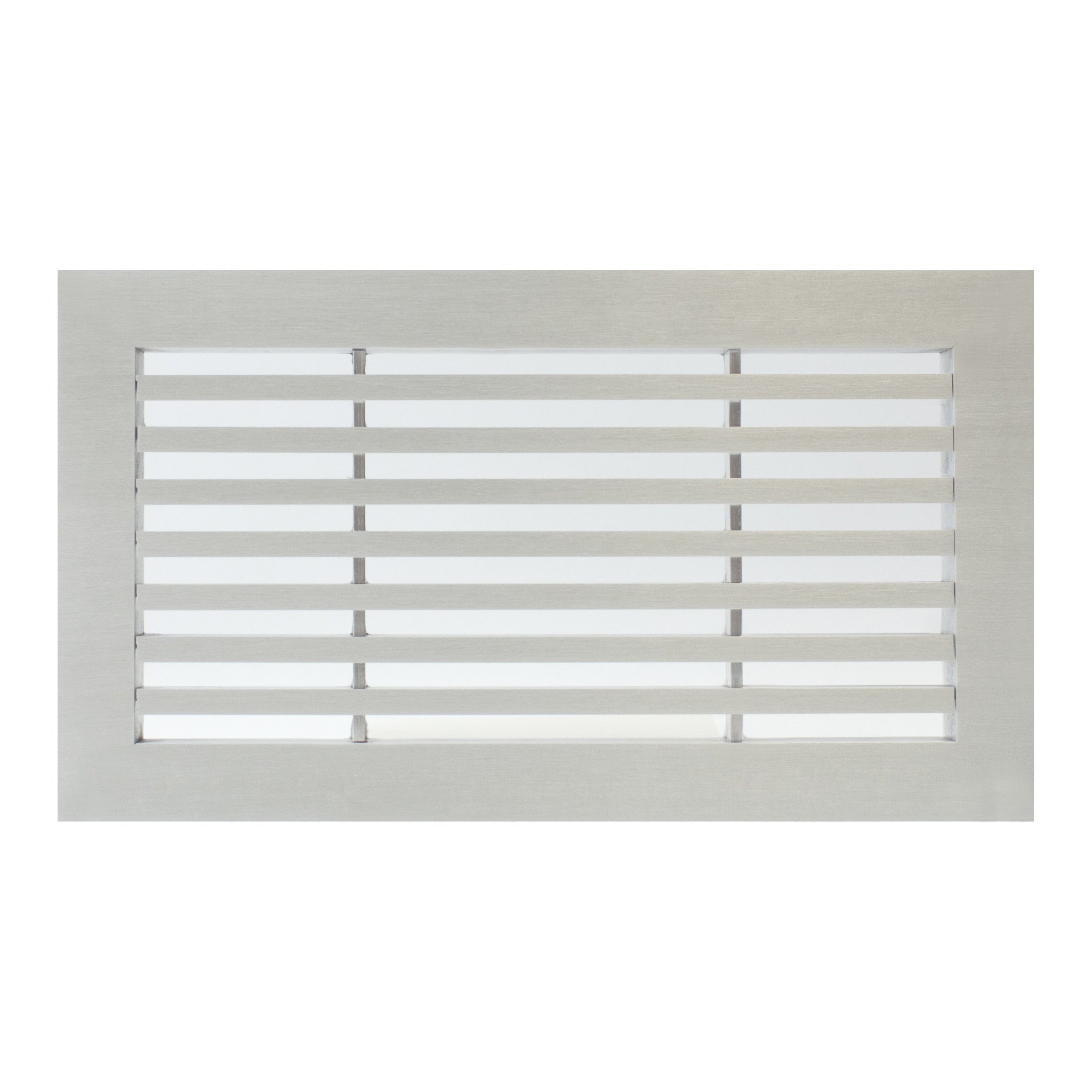

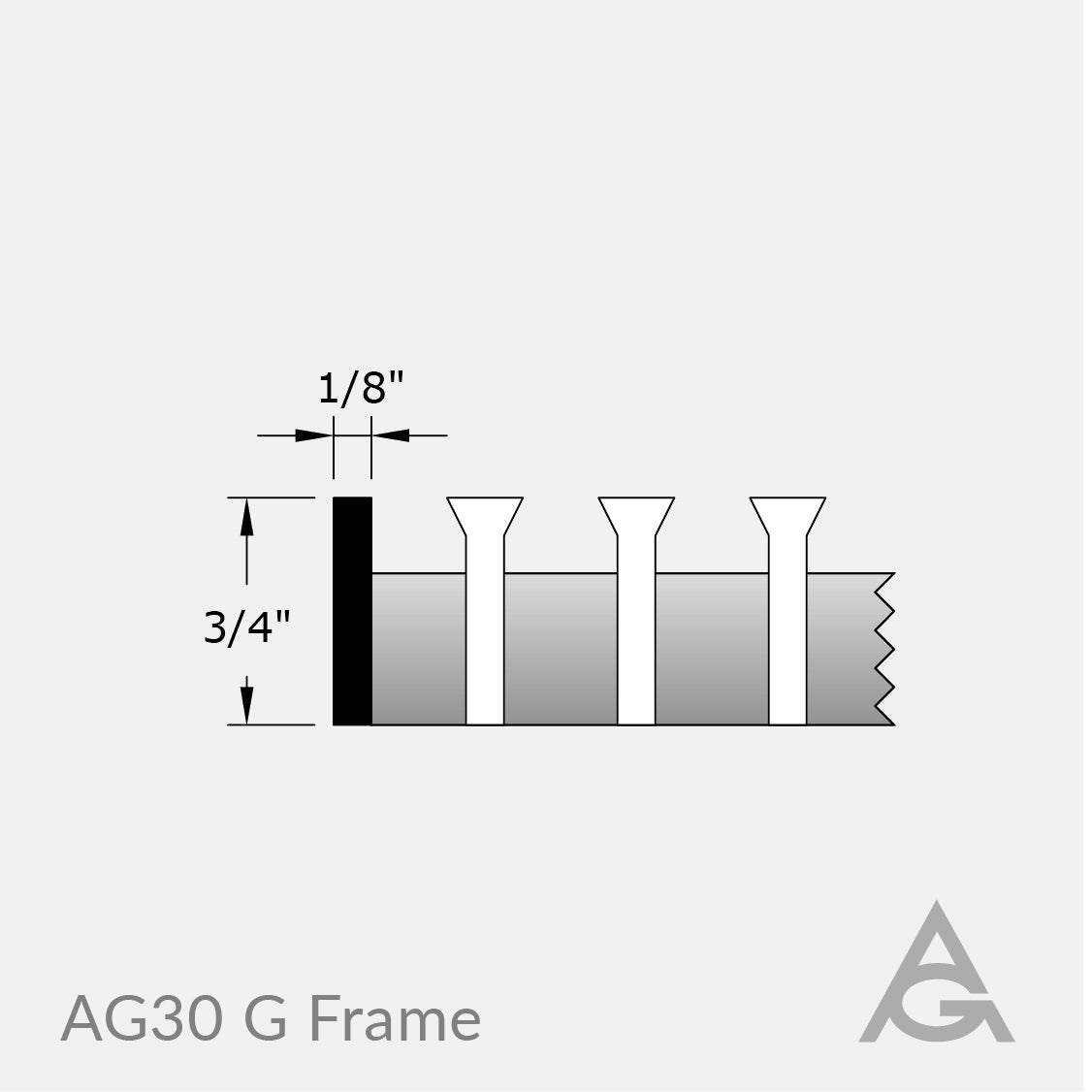

AG30 Bar Grille styles include: Core; A Frame; B Frame; C Frame; D Frame; E Frame; F Frame; G Frame; J Frame (see thumbnails for individual cross-section profiles)


Standard Features:

Material Finish
Aluminum Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors
Bronze Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Downloads:


Cutsheet PDF

Product Page
PDF

DWG Design Files

Resources:


Fastening & Mounting Methods

Measuring Instructions

Finishes & Colors
