Egg Crate Grilles


Pin It Houzz

The EC300 Egg Crate (Eggcrate) Grille is a specialized custom product manufactured by Architectural Grille on-site at our factory in Brooklyn, NY.

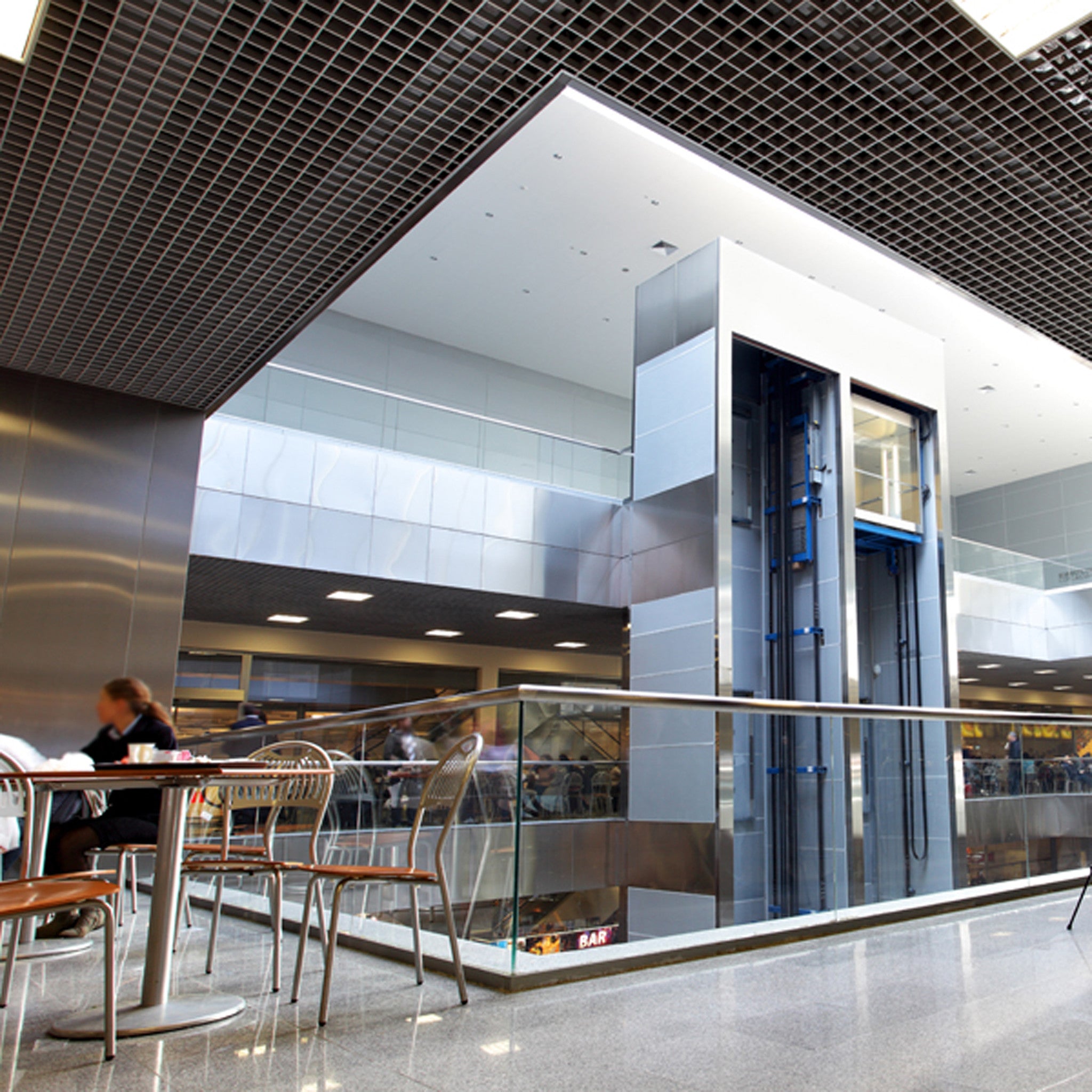

Consisting of linear bars that are machine cut and notched, then bonded together to form a horizontal and vertical grid structure, the EC300 model has uniform square openings with zero deflection for optimal air flow and distribution in any room. Ideal for ceiling and side wall HVAC applications in commercial and residential projects, the EC300 model is a high efficiency performance product that is also aesthetically pleasing.

The EC300 Egg Crate Grille is available in a variety of grid core sizes and heights (starting from ½”), frames, materials and finishes, and can also be customized to your needs and project standards.

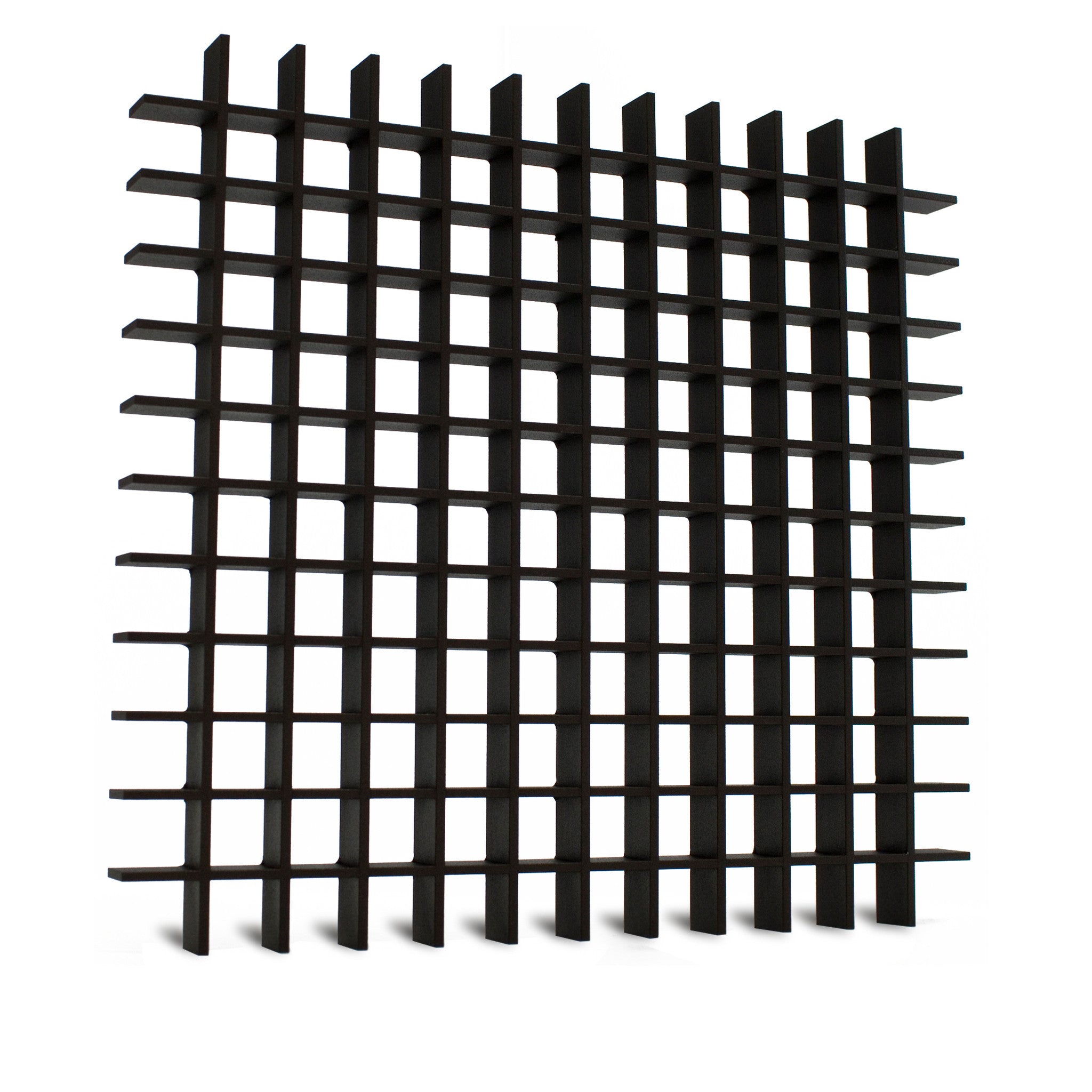

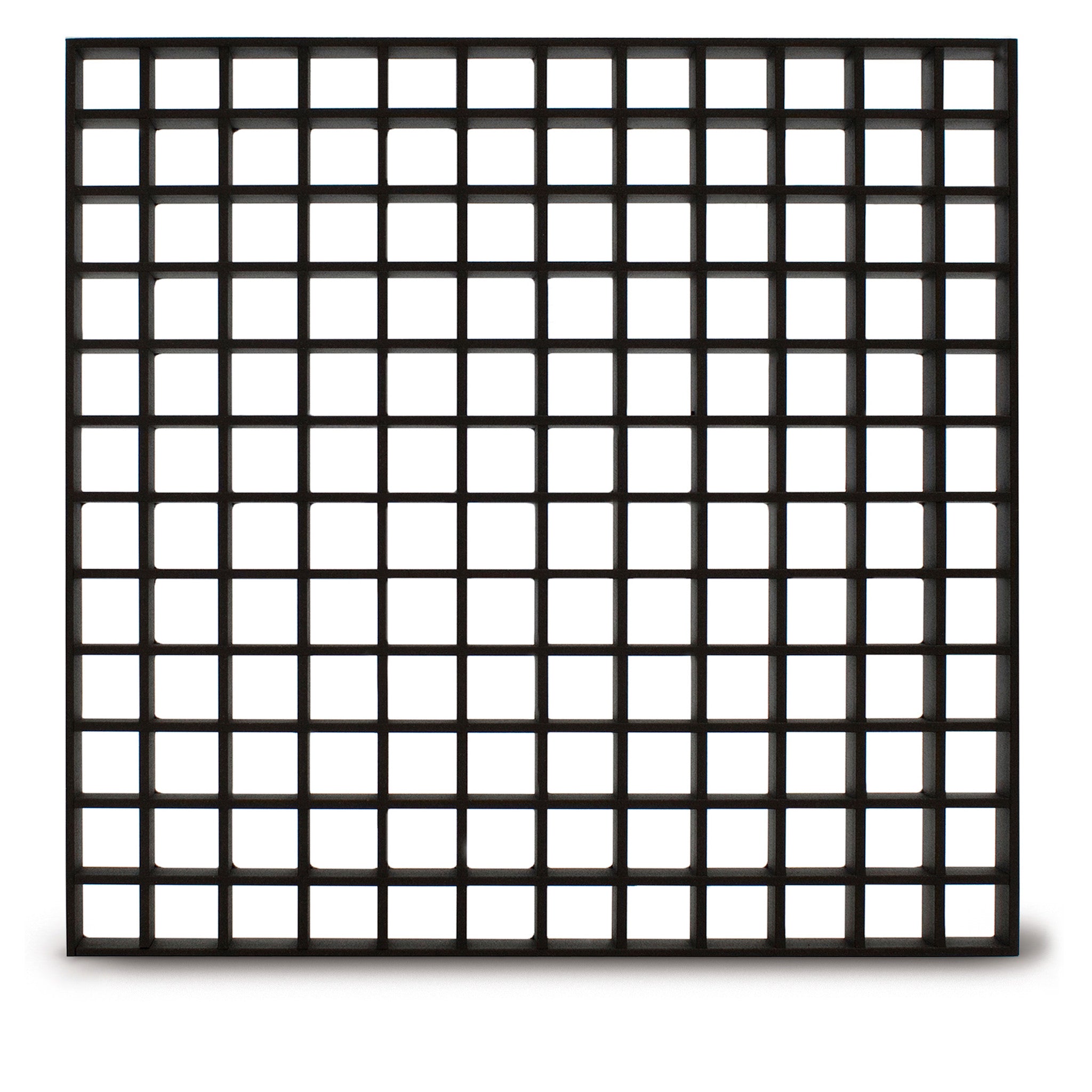

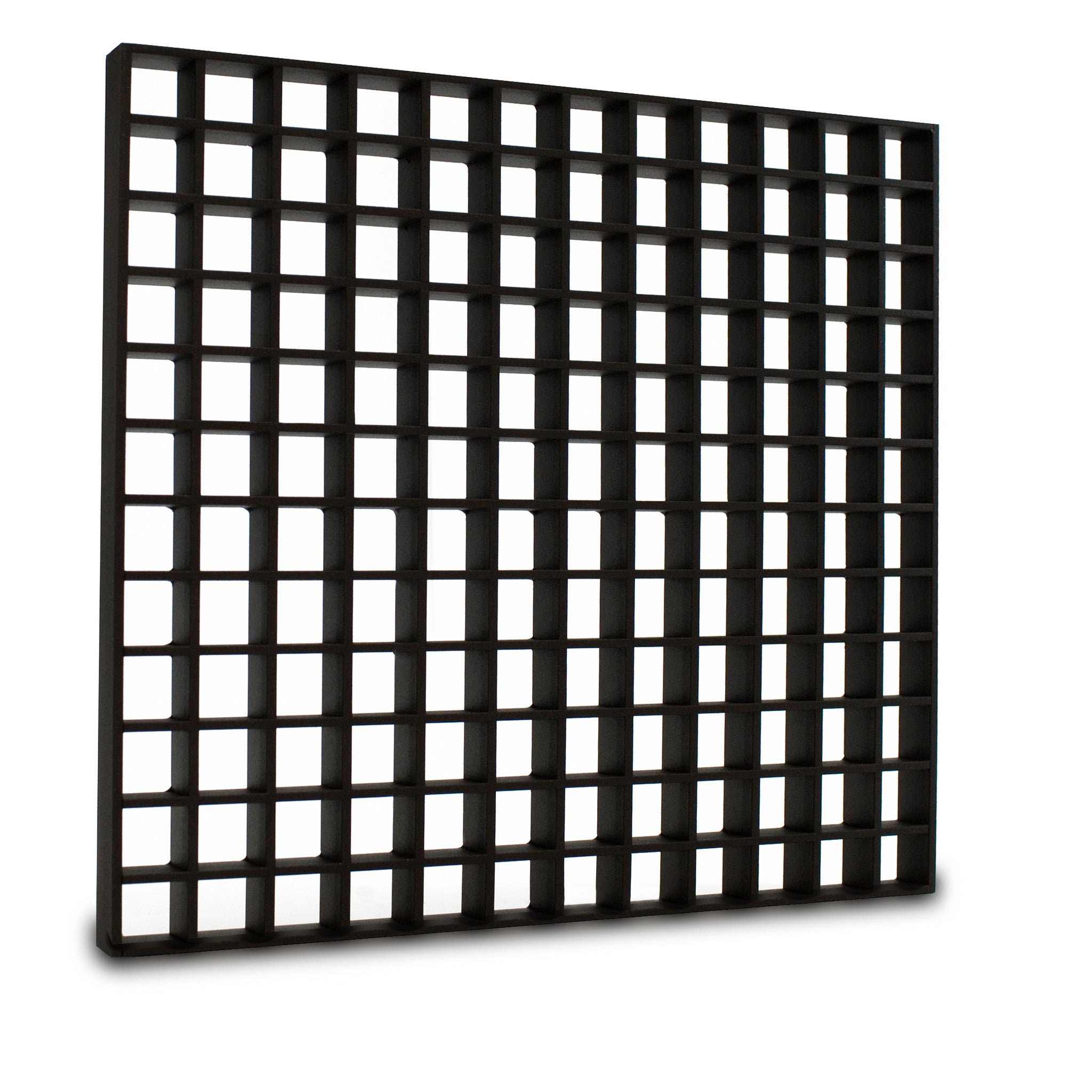

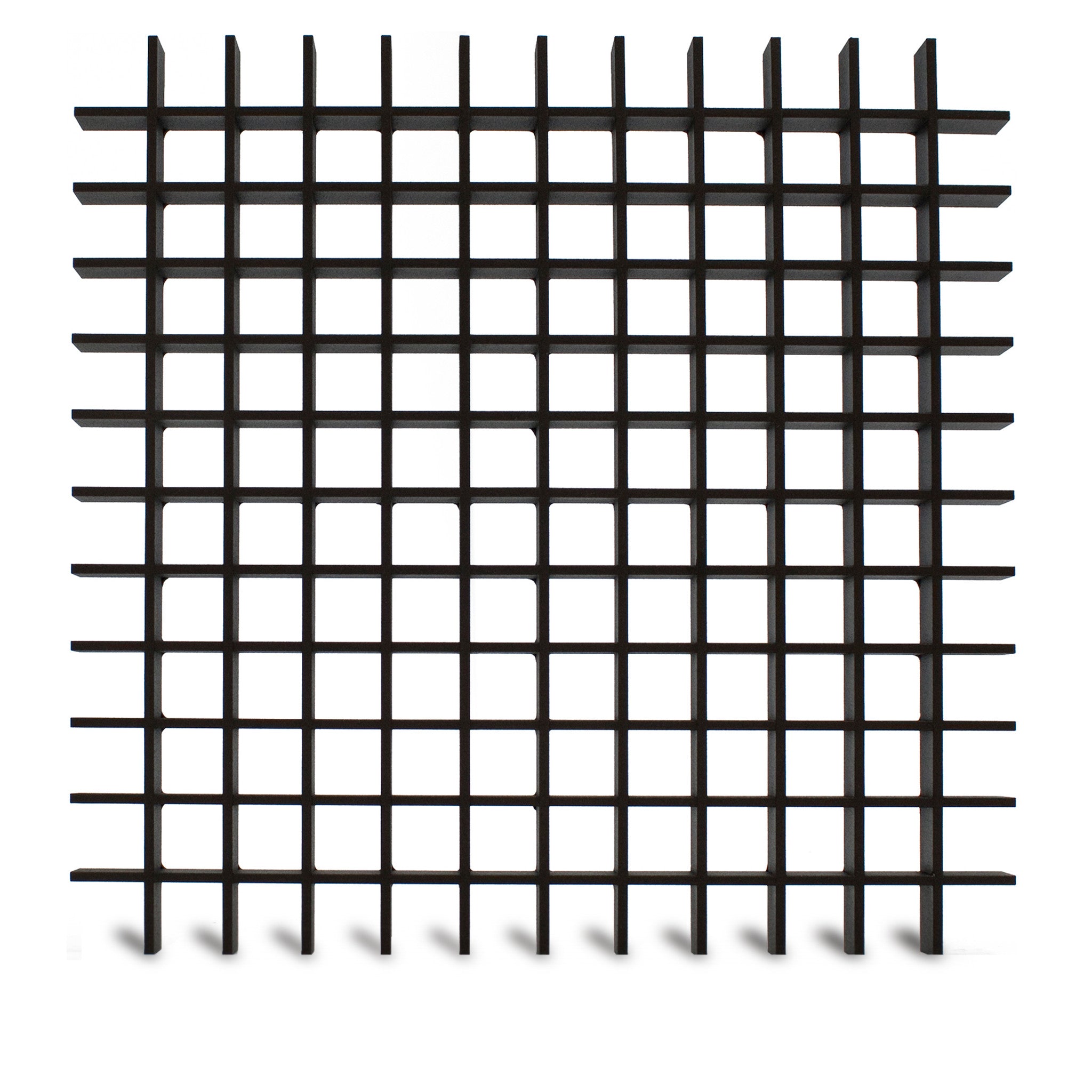

EC300 Egg Crate Grille styles include: Core; A Frame; B Frame; C Frame; D Frame; E Frame; F Frame; G Frame; J Frame (see thumbnails for individual cross-section profiles)

Standard Features:

  • 0° Deflection
  • Weld-Lock constructed for maximum durability
  • Standard material thickness is 1/8” (ask your estimator for other thickness options available)
  • Custom grid core sizes and heights available
  • Core can be loose or welded to A, C or J Frames
  • Beveled Edges available

Material

Finish

Aluminum

Satin, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors

Brass

Satin

Bronze

Satin

Stainless Steel

Satin

Wood

Natural, Stained, Lacquered, Primed, Painted

Downloads:


Cutsheet PDF

Product Page
PDF

DWG Design Files

Resources:


Fastening & Mounting Methods

Measuring Instructions

Finishes & Colors
