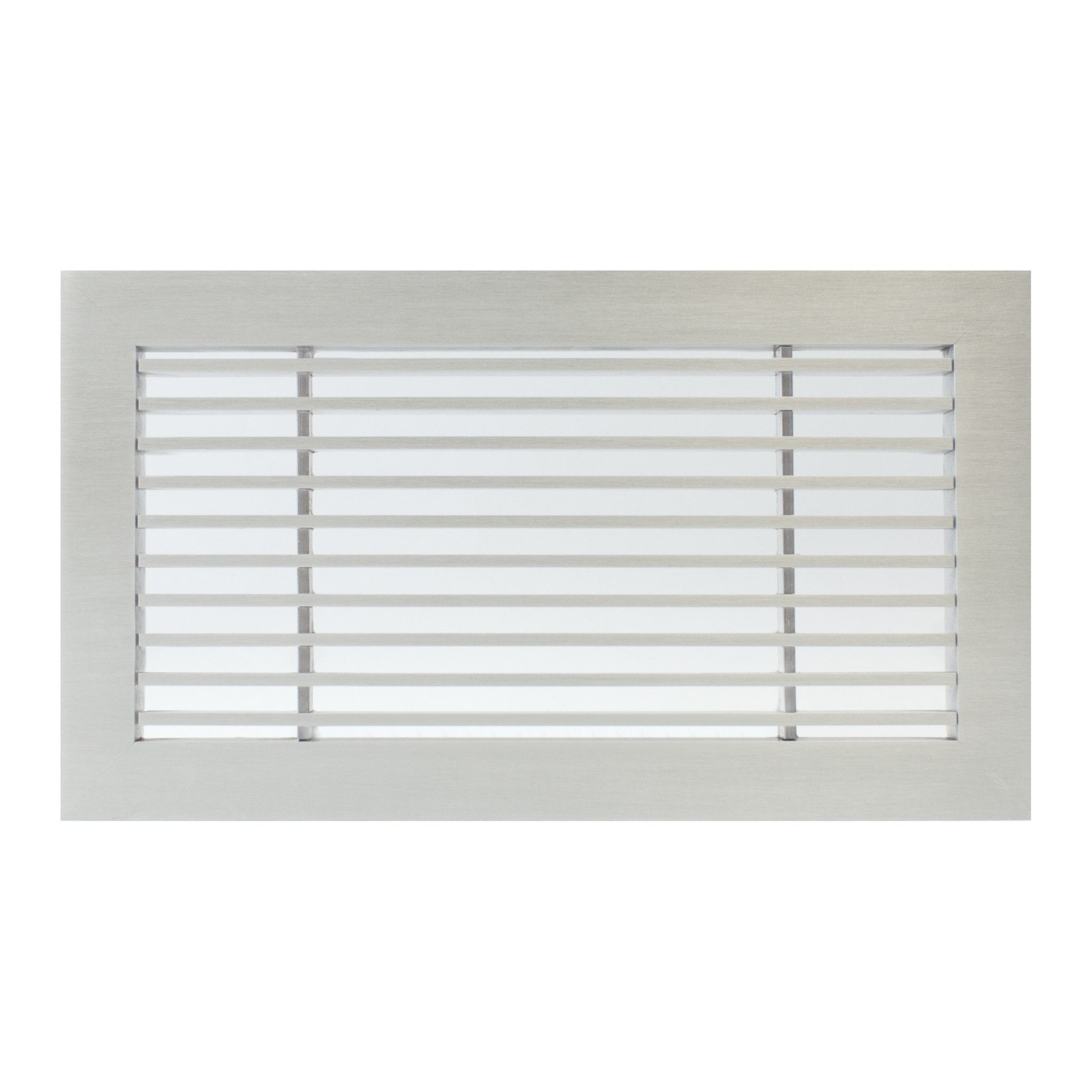

AG10 Green Bar Grille

Manufactured using post-consumer 94% recycled aluminum, the AG10 Green Bar Grille can help you achieve LEED™ credits and certification for your next “green” commercial or residential project.

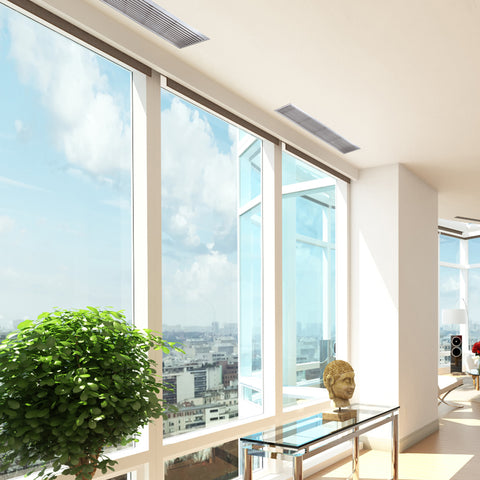

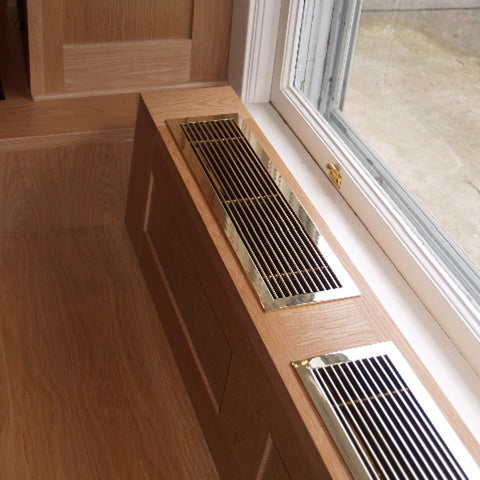

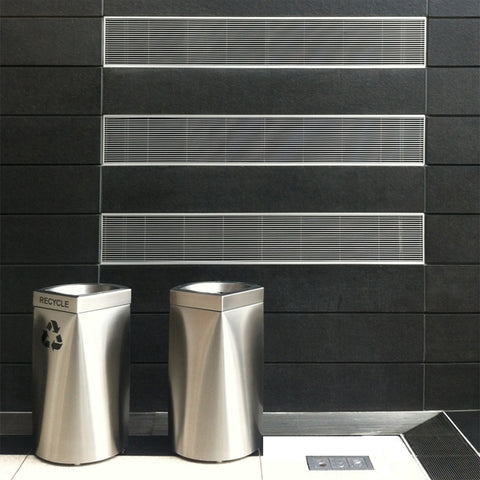

The AG10 linear bar grille is eco-friendly and has a fixed zero deflection that is suitable for floor, ceiling, wall, window sill and countertop applications. Featuring an aesthetically pleasing continuous length appearance, it surpasses architectural “wants” and engineering “needs” that require both design and high engineering performance. The AG10 Green Bar Grille is an advanced premium quality and sustainable product from Architectural Grille that is environmentally responsible.

The AG10 Green Bar Grille is available in a variety of stock sizes, materials and finishes, and can also be customized to your needs and project standards.

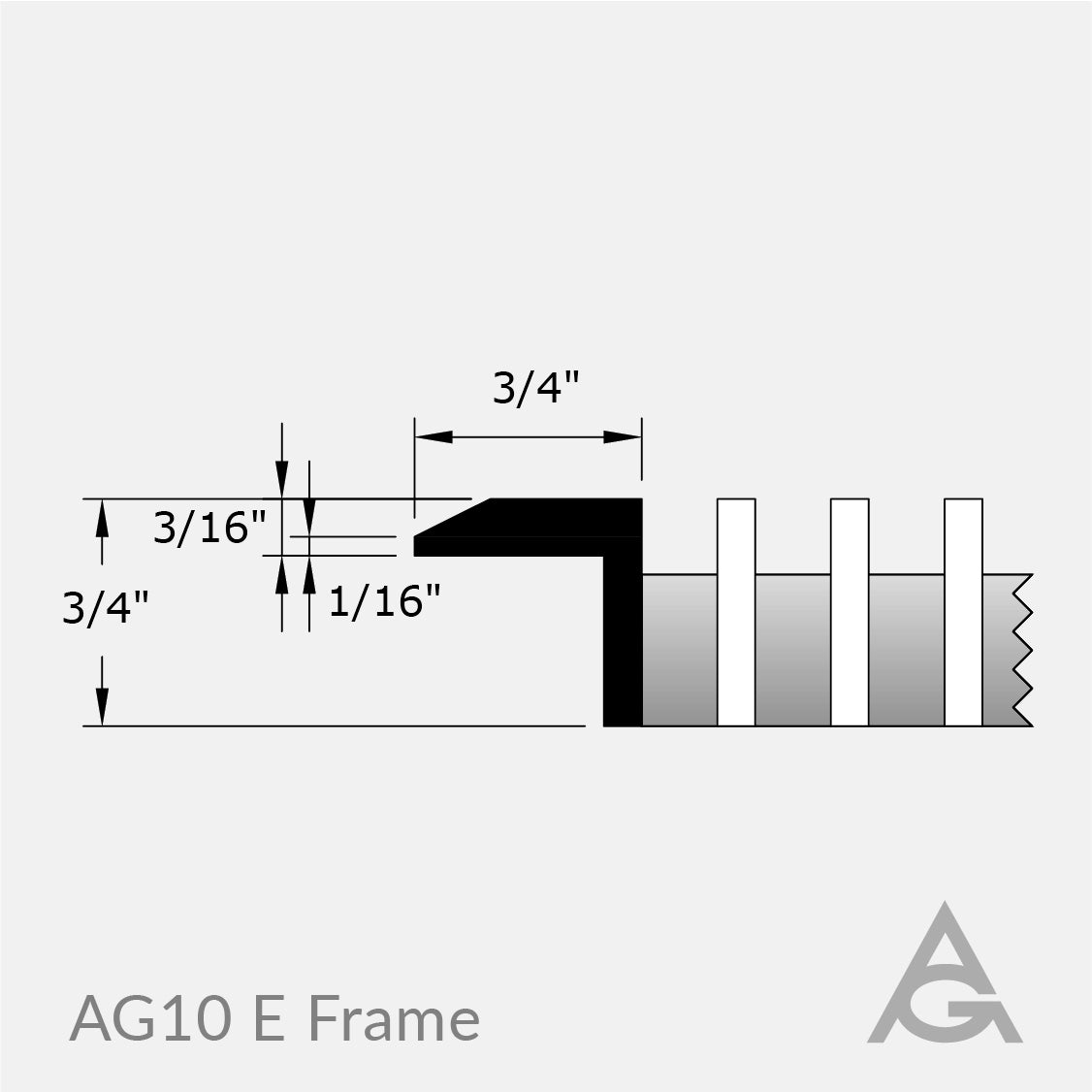

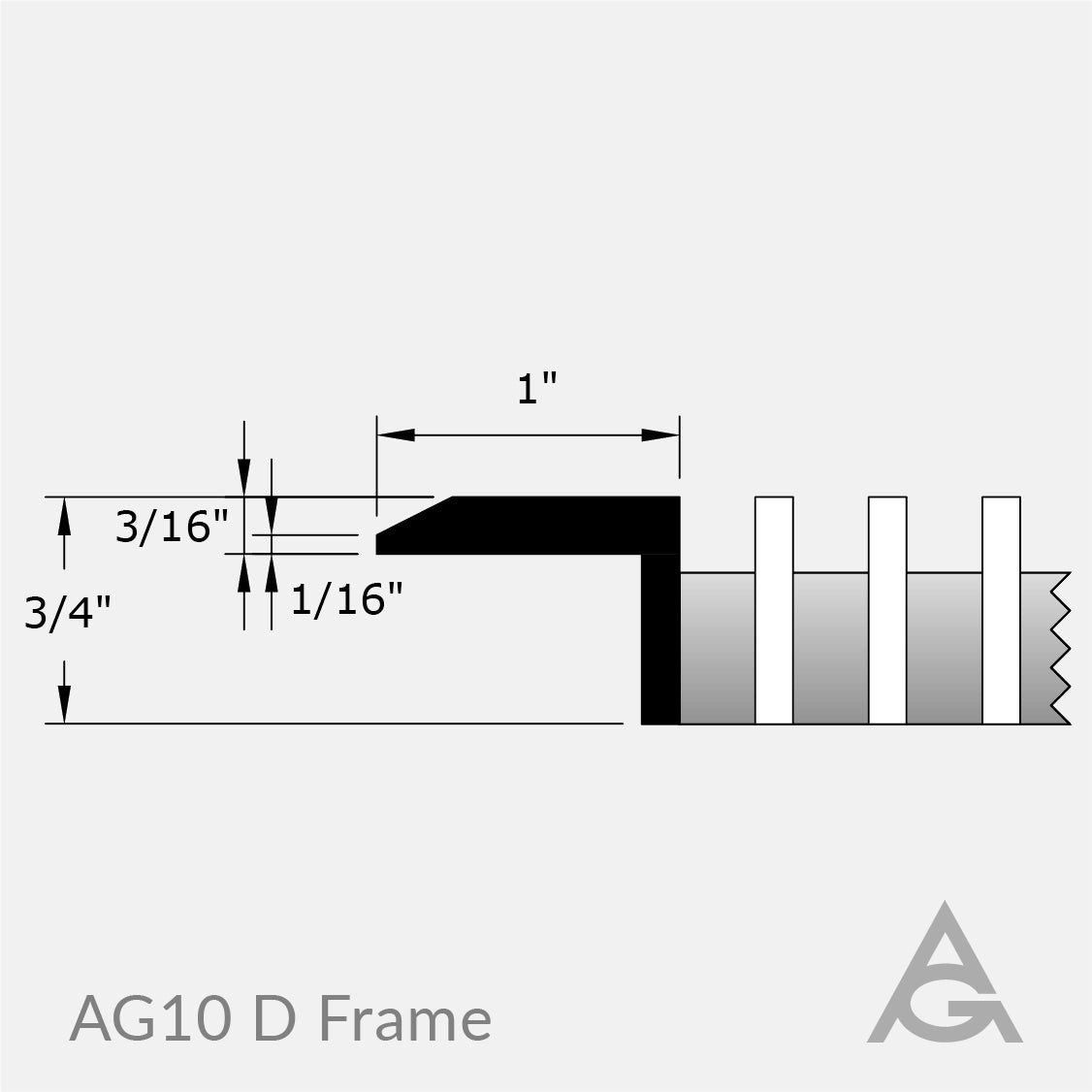

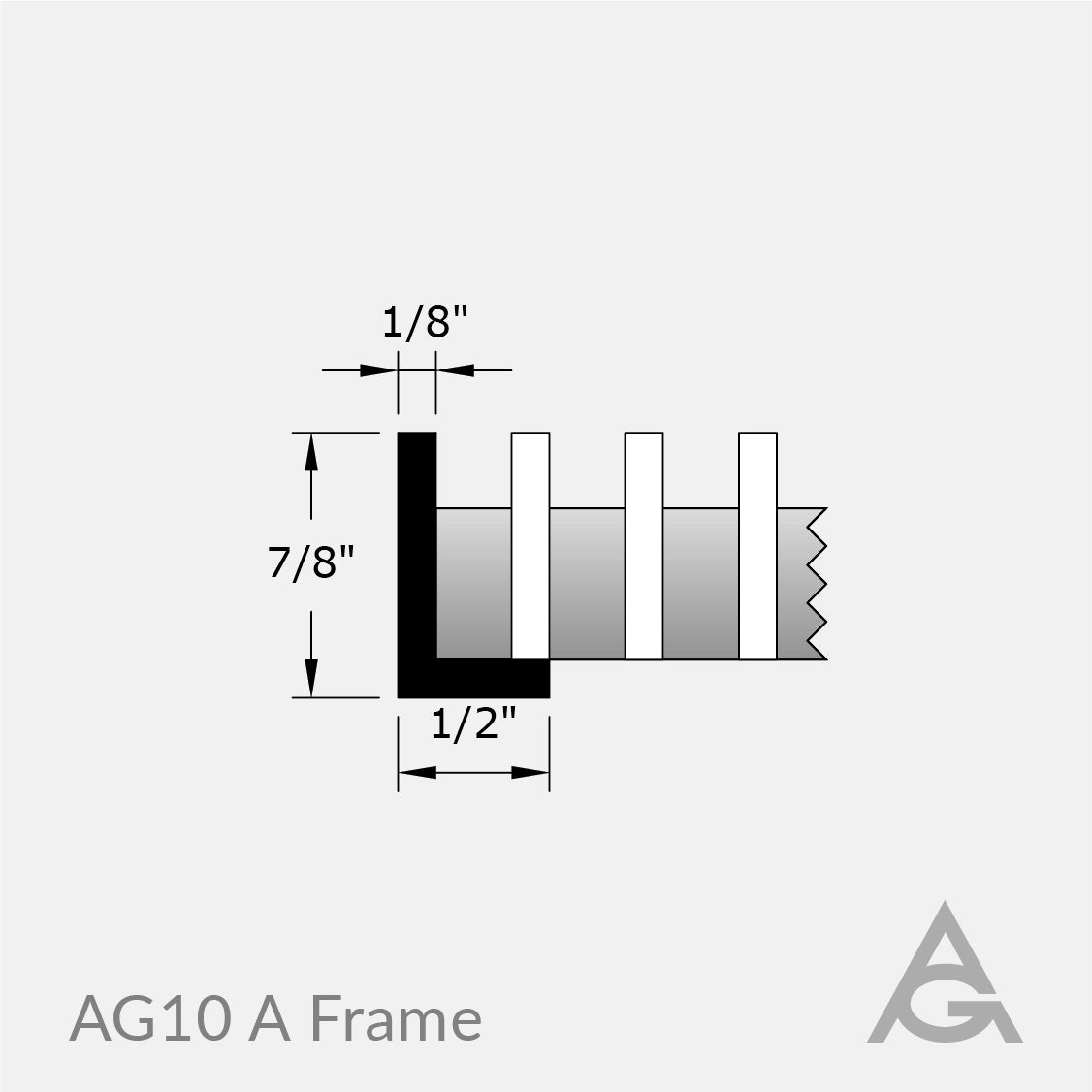

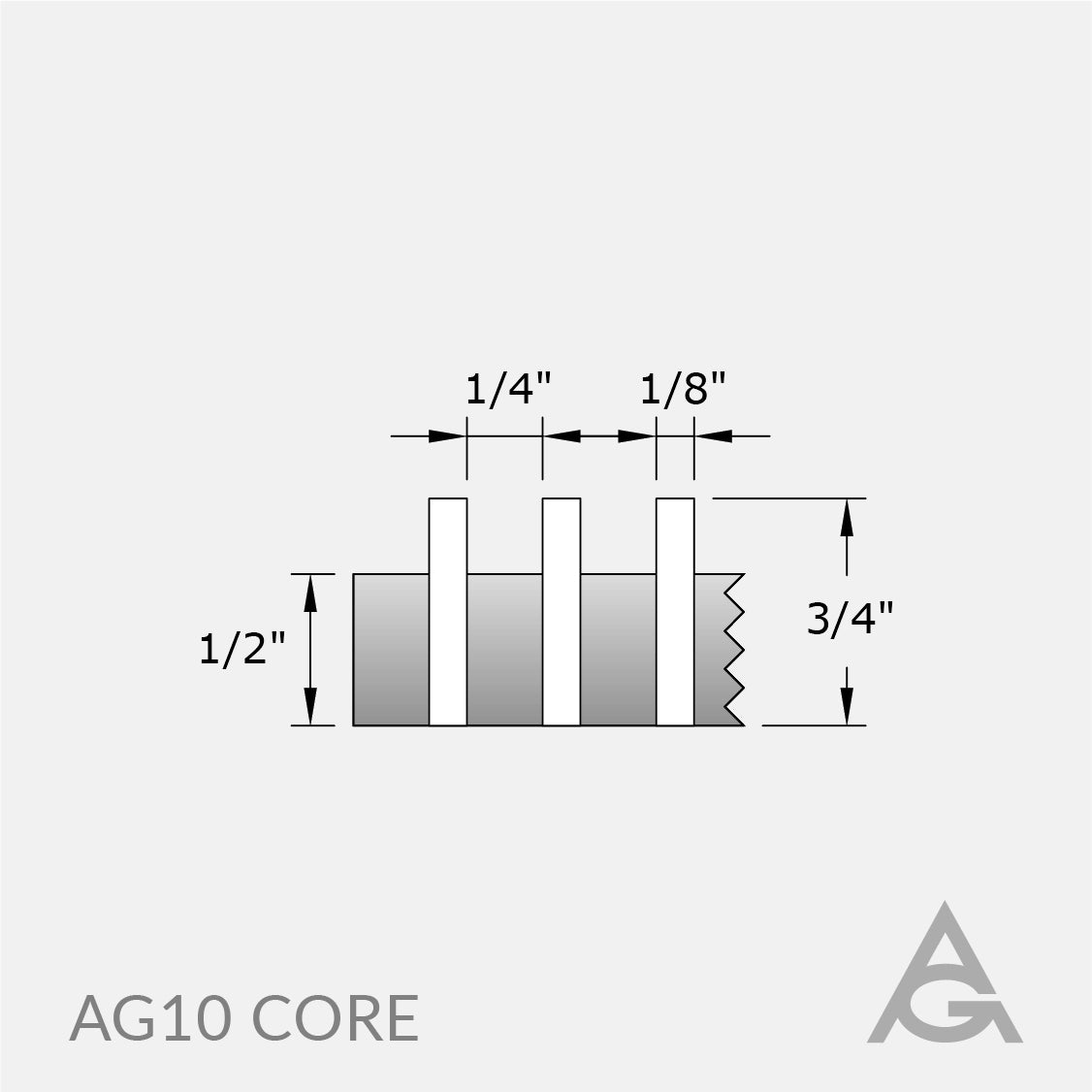

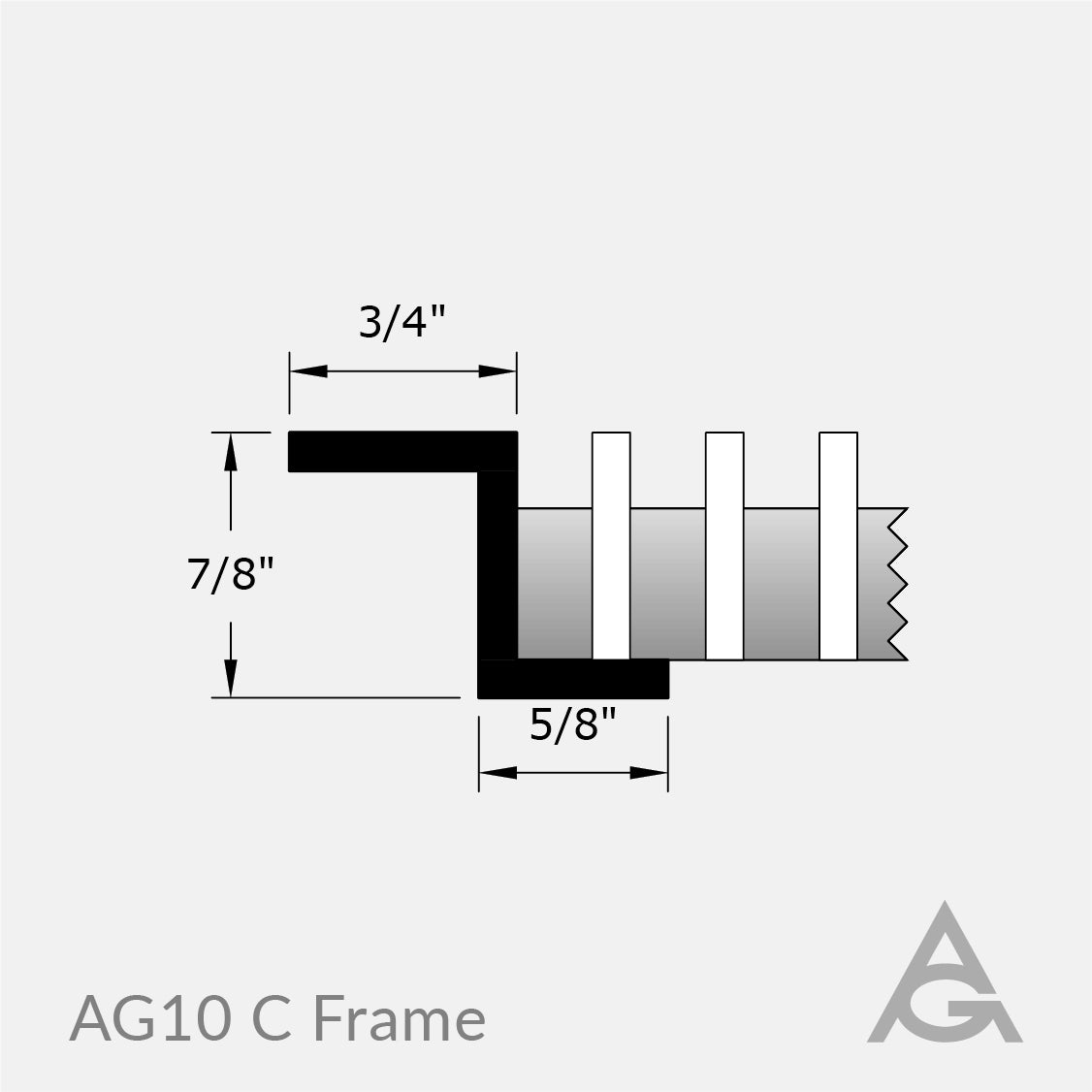

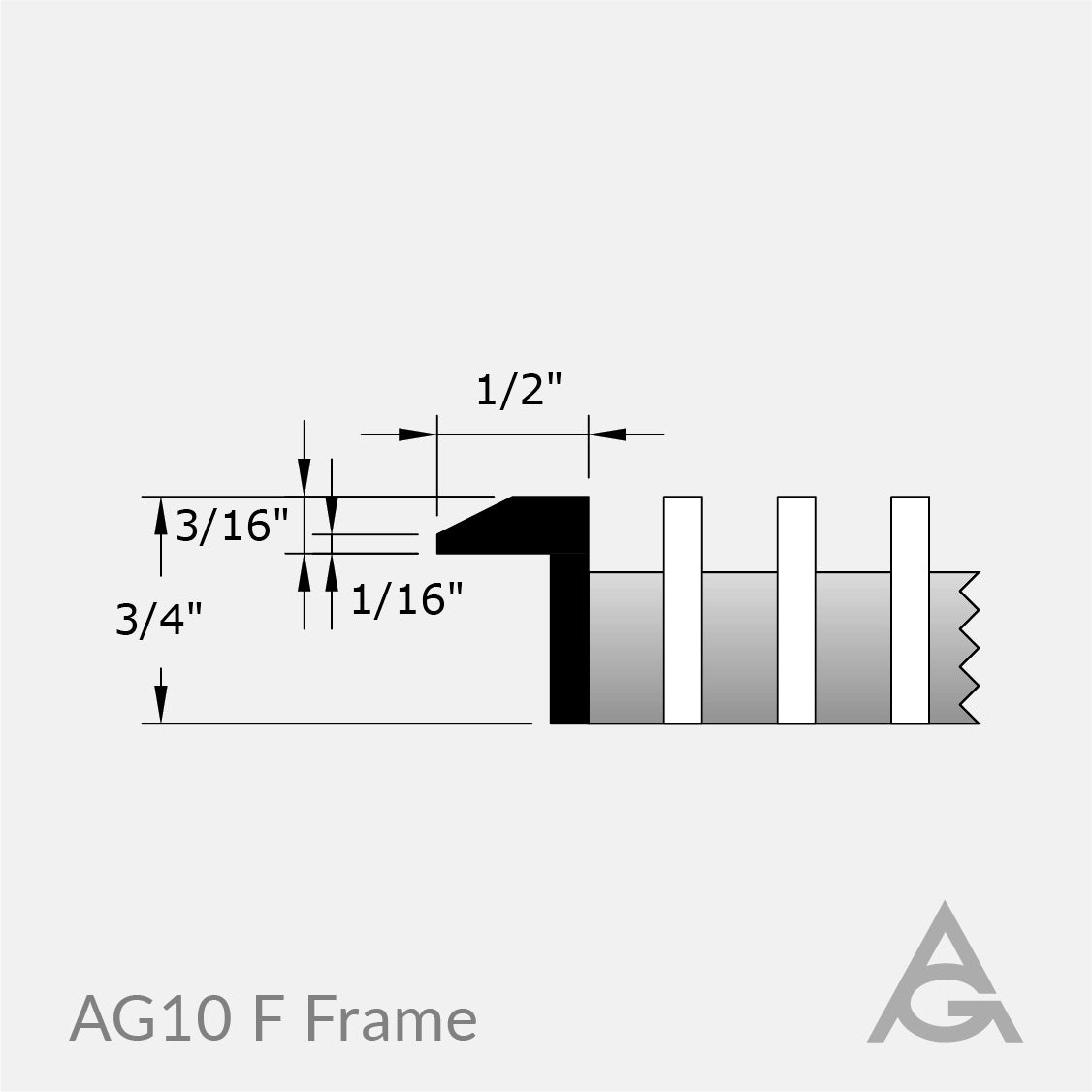

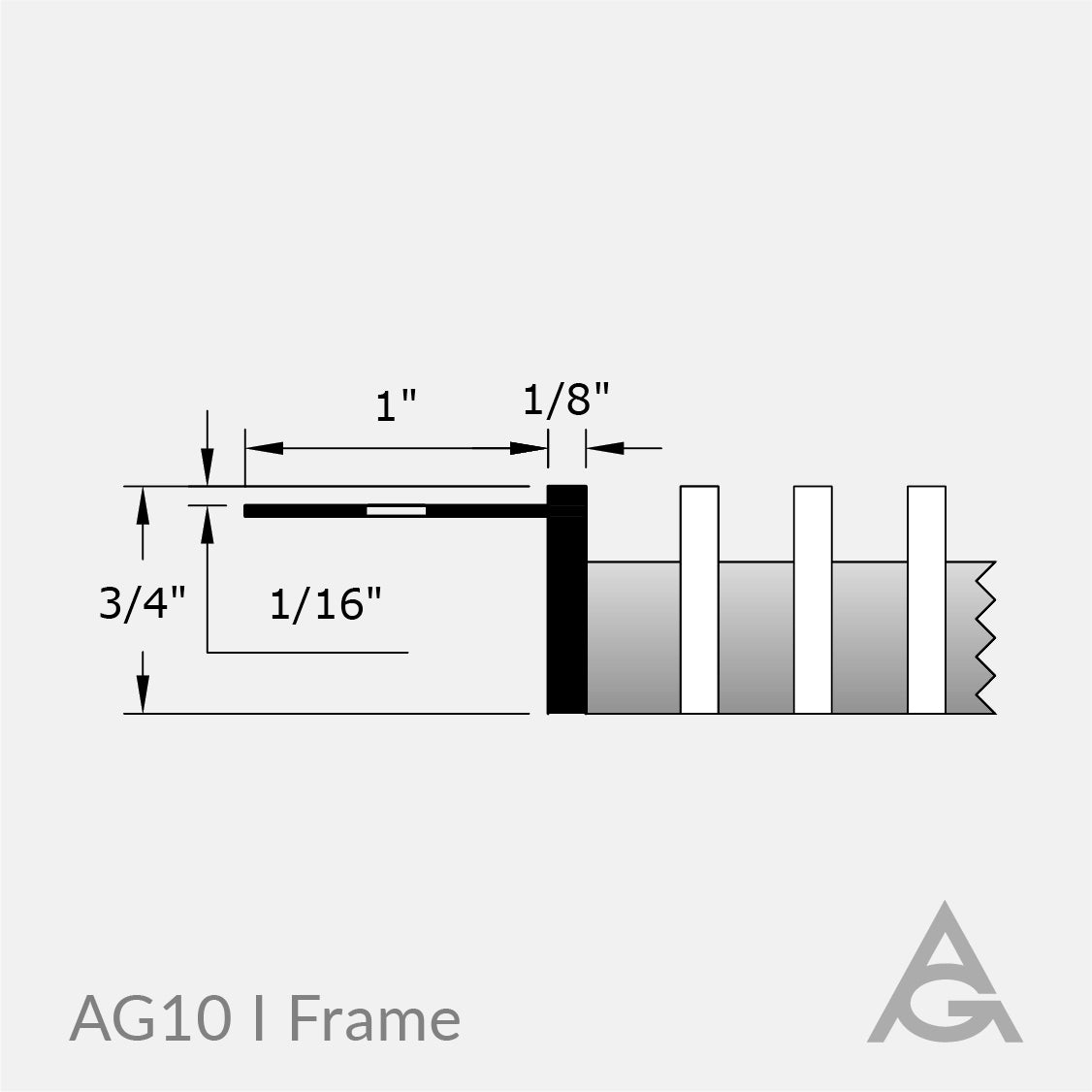

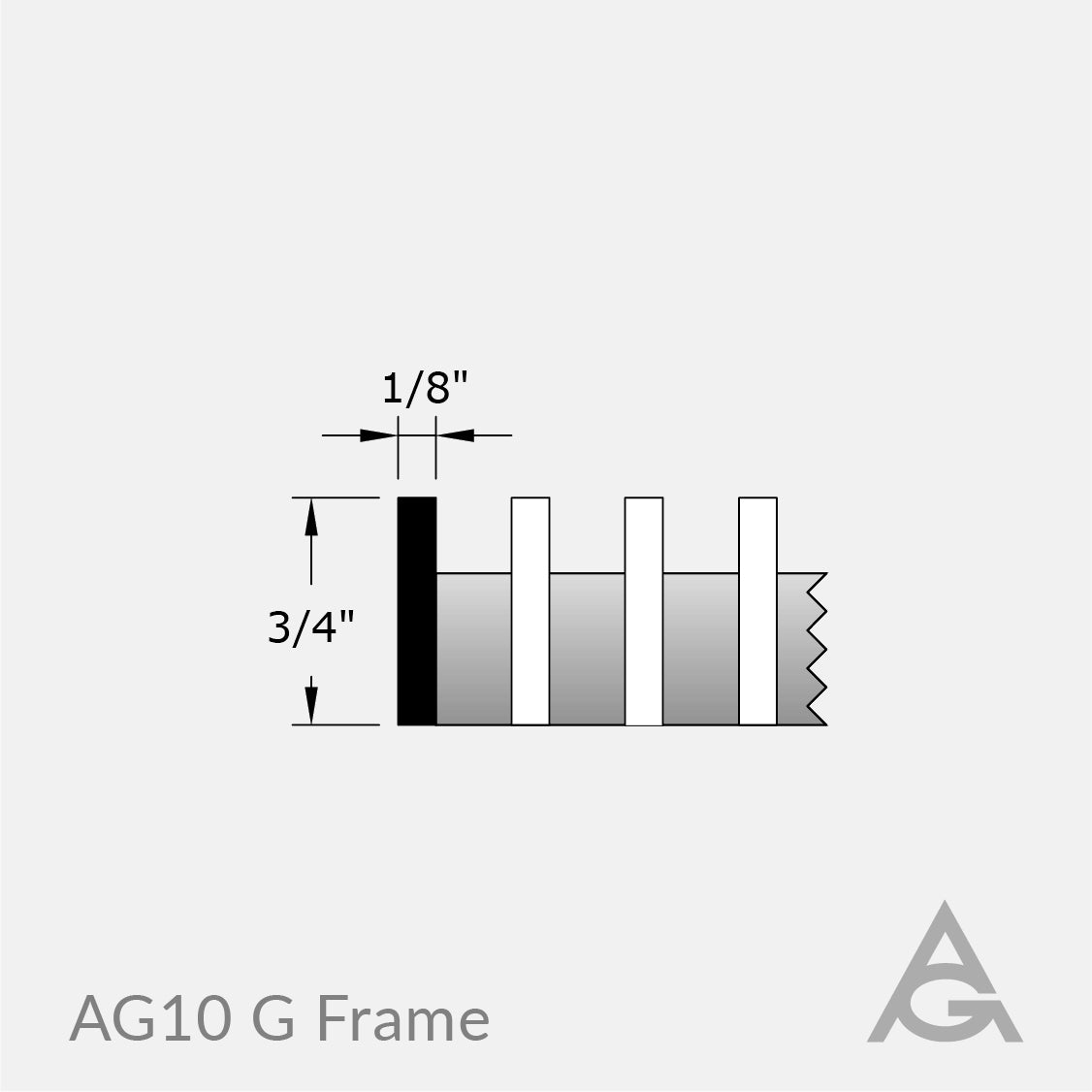

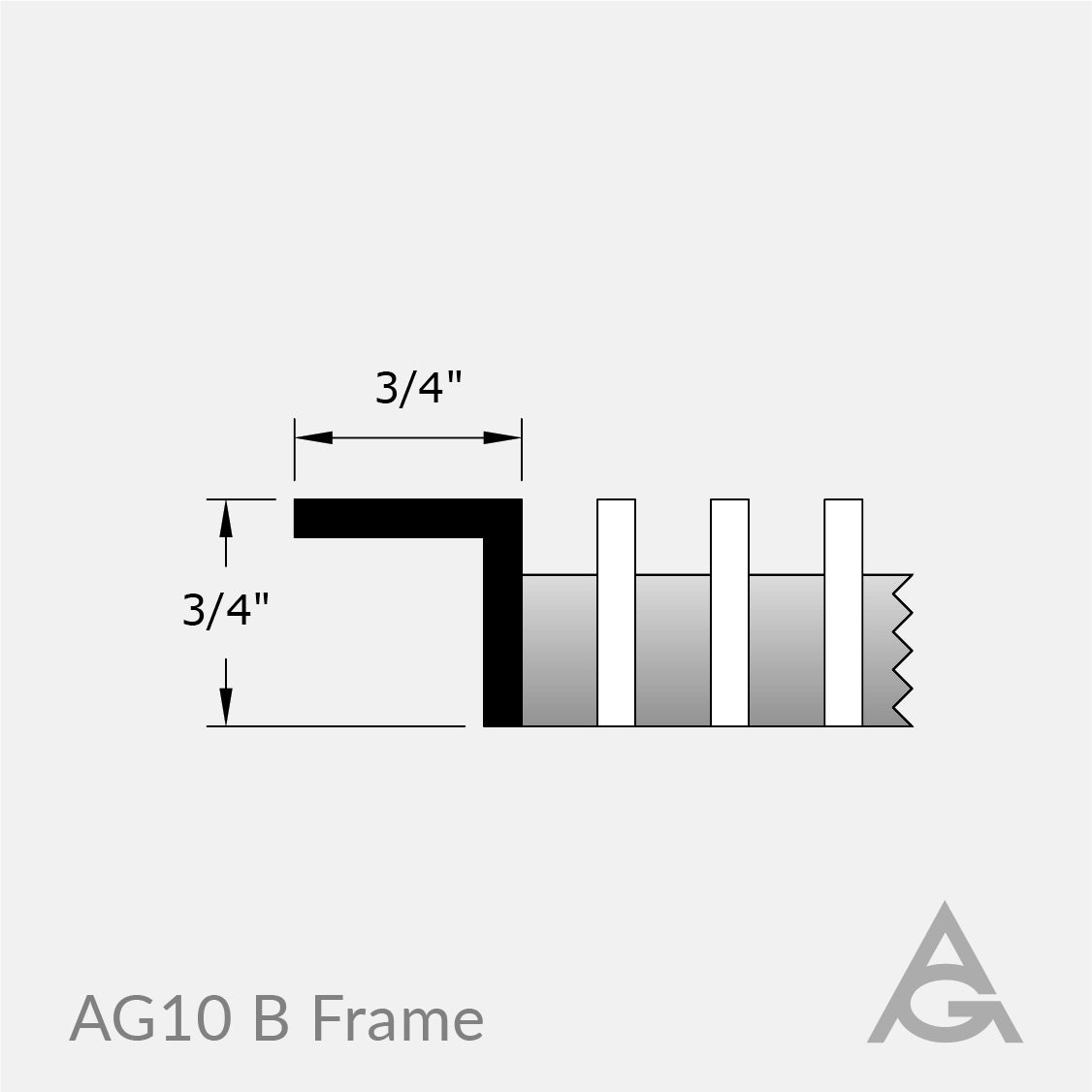

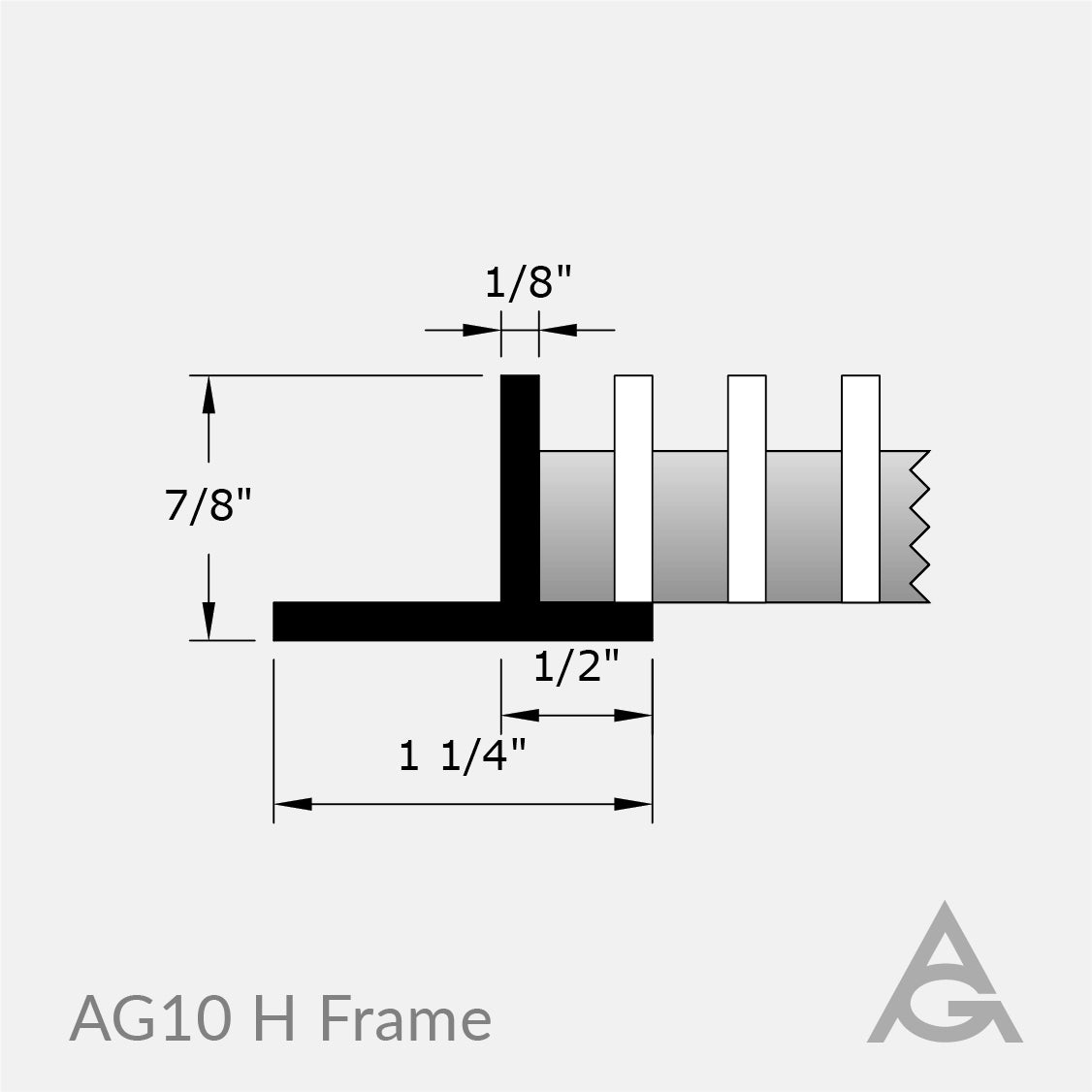

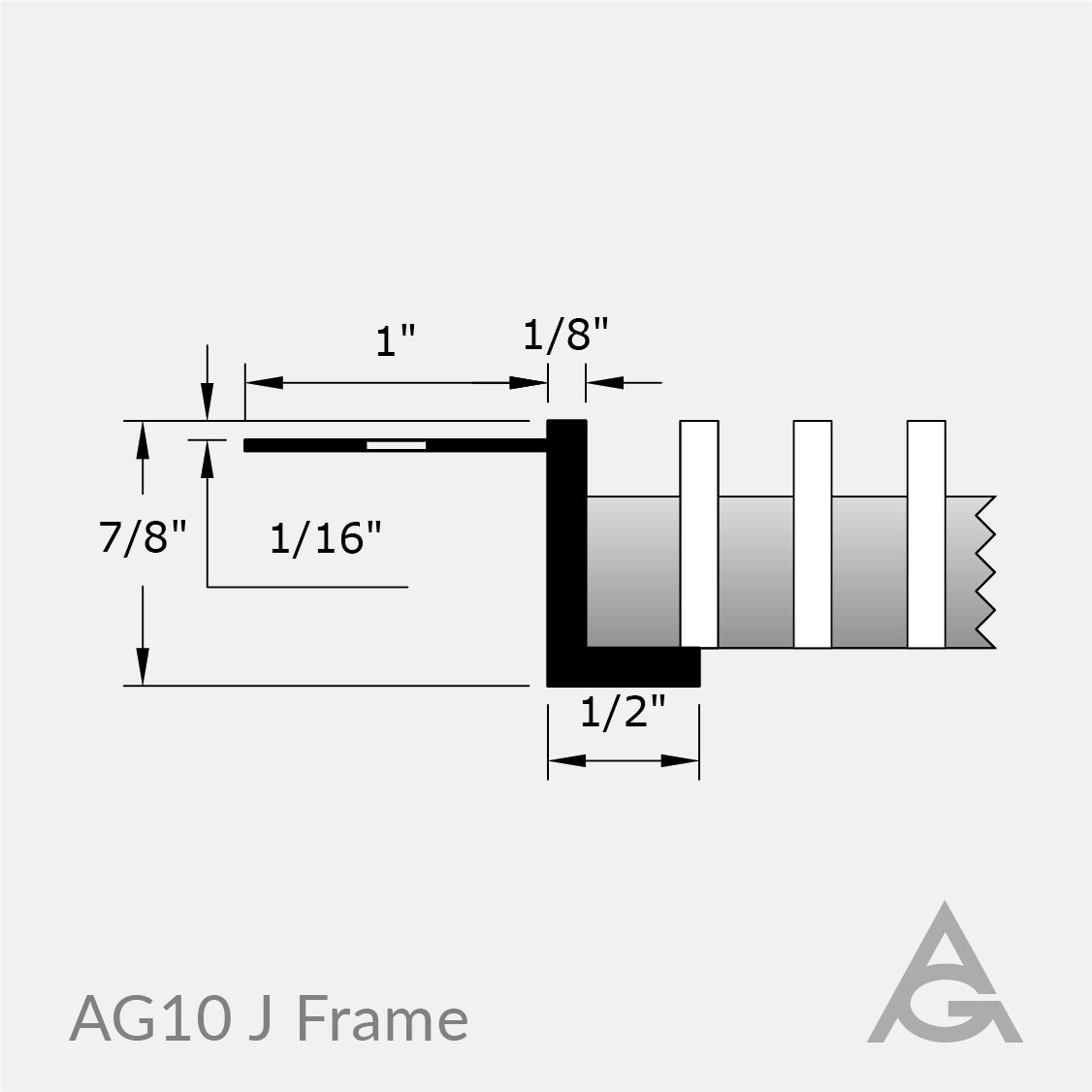

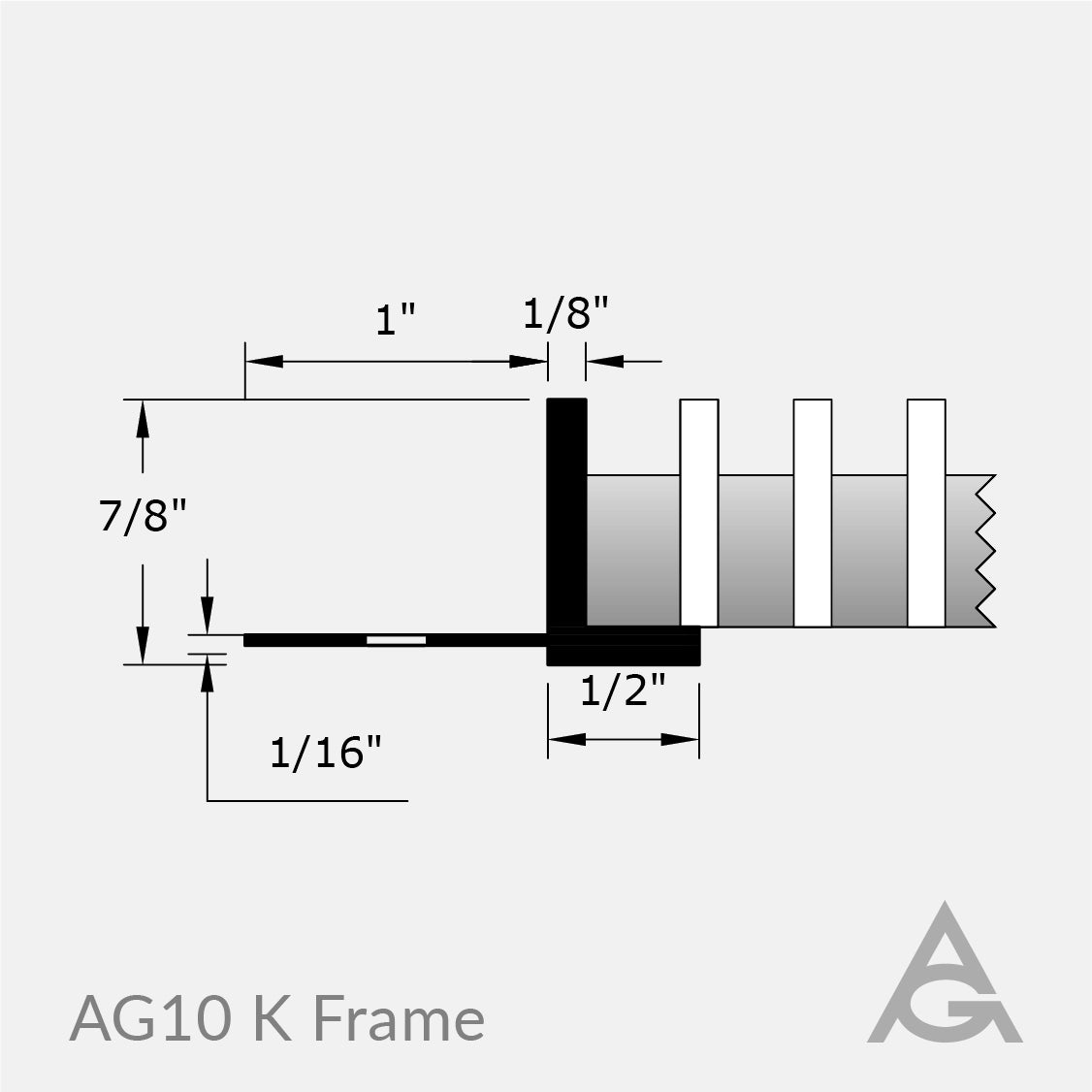

AG10 Green Bar Grille styles include: Core; A Frame; B Frame; C Frame; D Frame; E Frame; F Frame; G Frame; H Frame; I Frame; J Frame; K Frame (see thumbnails for individual cross-section profiles)

Standard Features:

• 0° Deflection

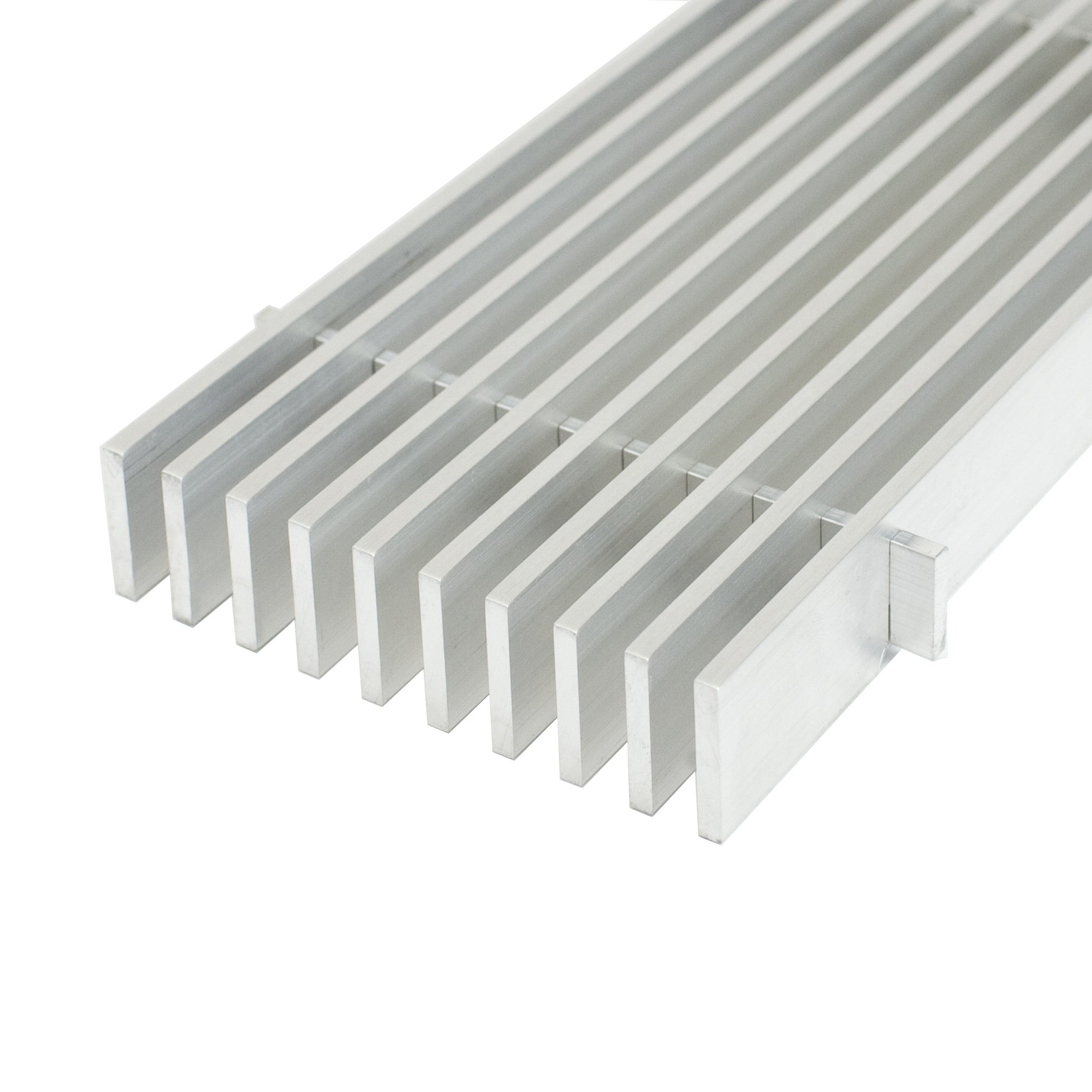

• Weld-Lock constructed for maximum durability
• Pencil Proof: ¼” spacing between bars
• Post-consumer 94% recycled aluminum
• Custom Spacing available
• Core can be loose or welded to A, C, H, J or K Frames
• Mitered Corners / Beveled Edges available
• Pivot Access Door(s) available
• Curved available: Concave, Convex or Flat Face
• Stock sizes available for sale online

*post-consumer 94% recycled aluminum

NOTE: Please be advised that Architectural Grille does not provide anodizing services onsite, as a result we cannot be responsible for additional lead time(s) incurred. If you would like to select a powder coat color similar to an anodized color we now have that option available - please ask your Estimator for further details.

Downloads:

Cutsheet PDF

Product Page PDF

DWG Design Files

Resources:

Fastening & Mounting Methods

Measuring Instructions

Finishes & Colors
