215 Brick Perforated Grille


Pin It Houzz

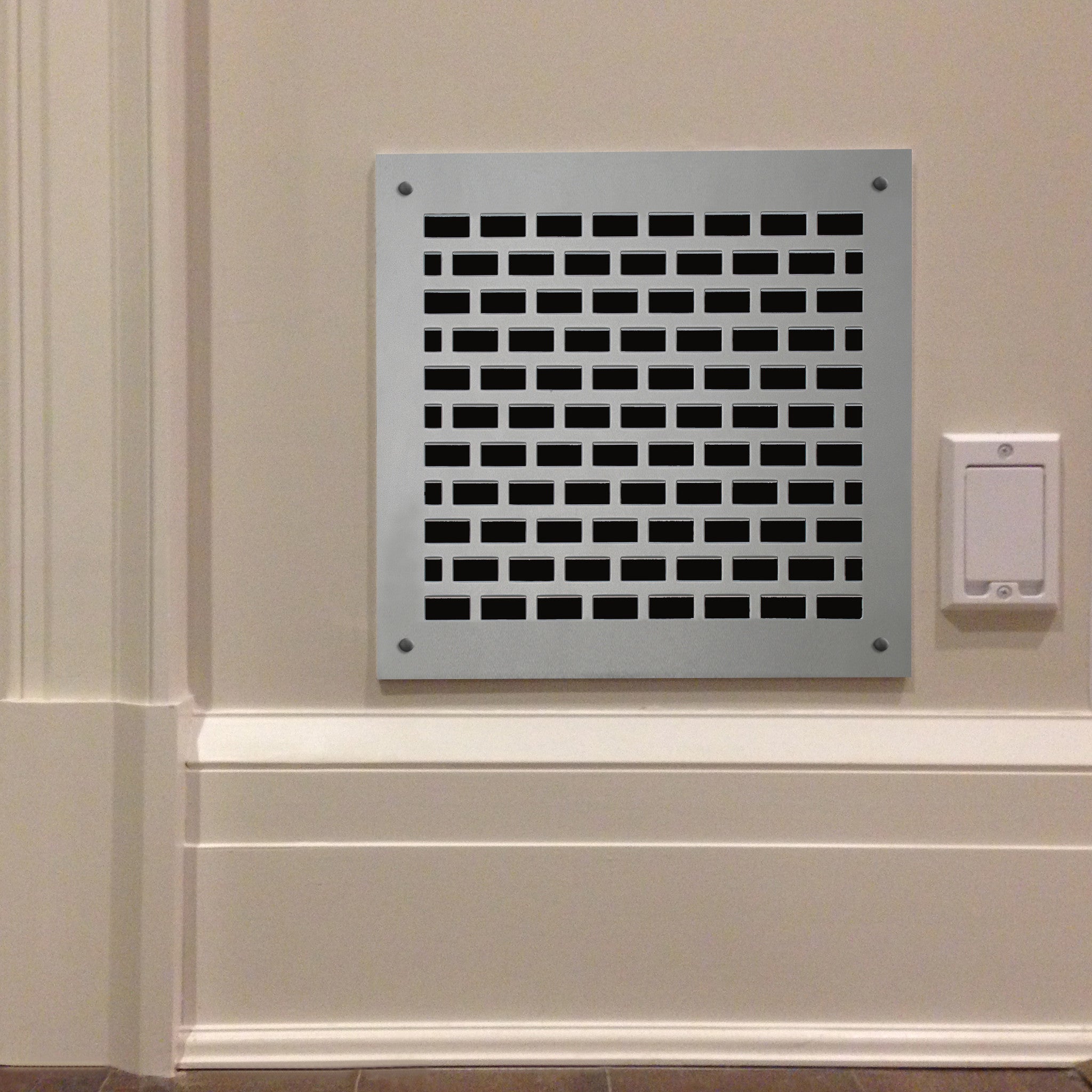

The #215 Brick Perforated Grille is a staggered version of the #210 School Slot Perforated Grille, bringing a greater structural strength to the overall slot perforation. This modern contemporary linear design is ideal for residential and commercial applications needing open area for ventilation in an aesthetically pleasing product.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern Dimensions:

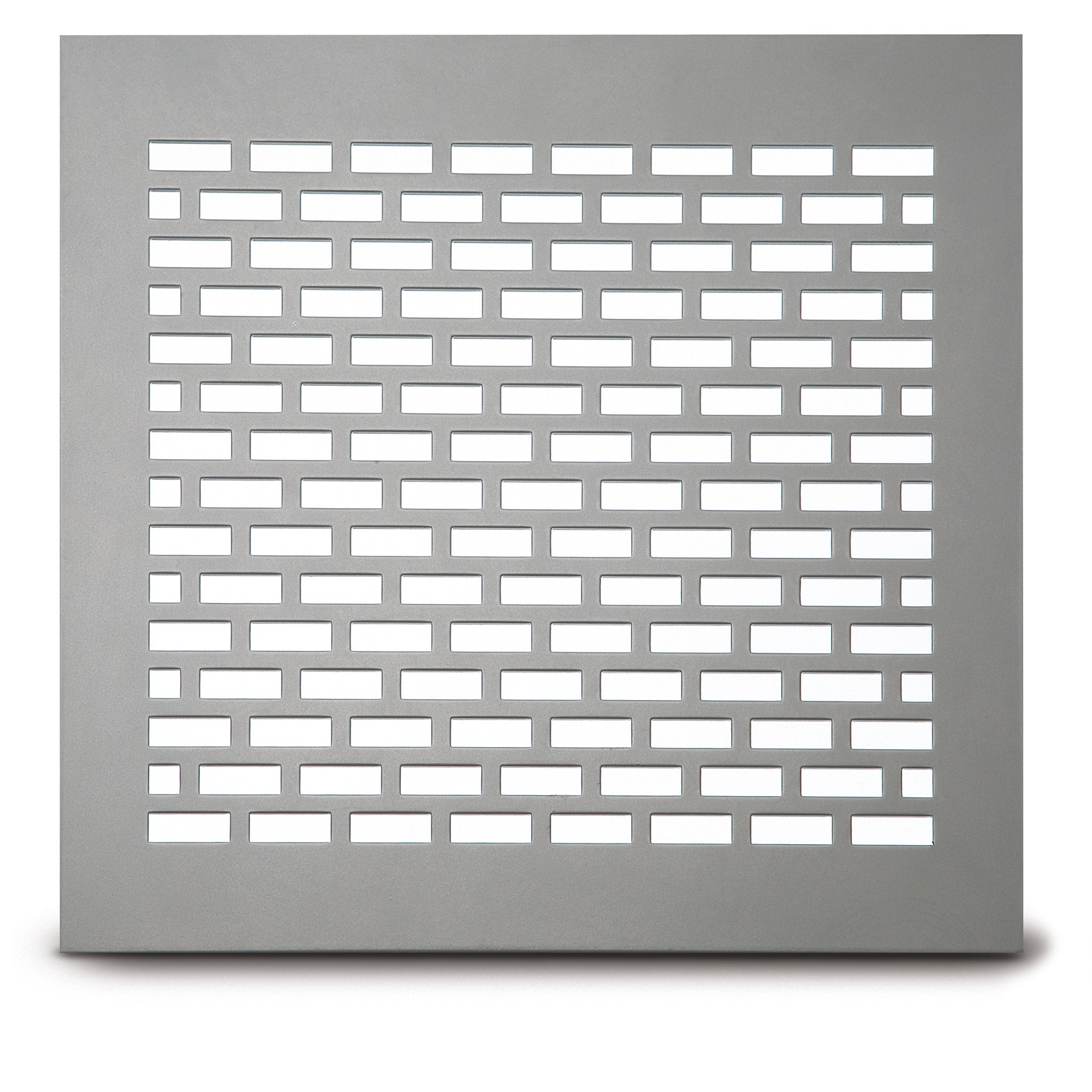

  • ¼” x 1” pattern - 35% Open

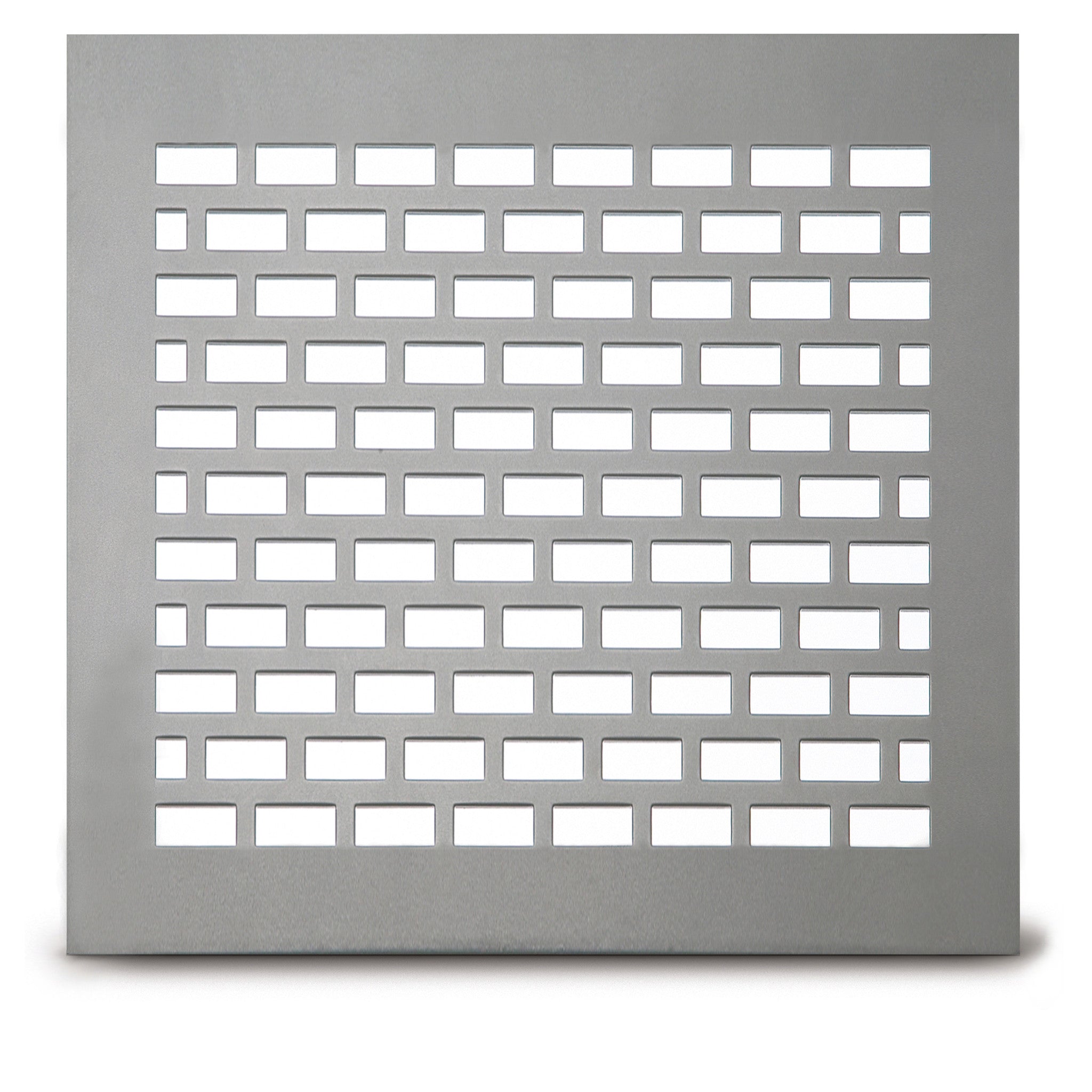

  • 3/8” x 1” pattern - 43% Open

MATERIAL

PUNCHED THICKNESS* (min-max)

FINISH

Aluminum

1/16” – 1/8”

Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors

Brass

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Bronze

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Stainless Steel

1/16” – 14 GA

Satin, Mirror Polish

Steel

1/16” – 1/8”

Raw, Primed, Powder Coating Colors

*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAILS

Downloads:


Cutsheet PDF

Product Page
PDF

DWG Design Files

Resources:


Fastening & Mounting Methods

Measuring Instructions

Finishes & Colors
