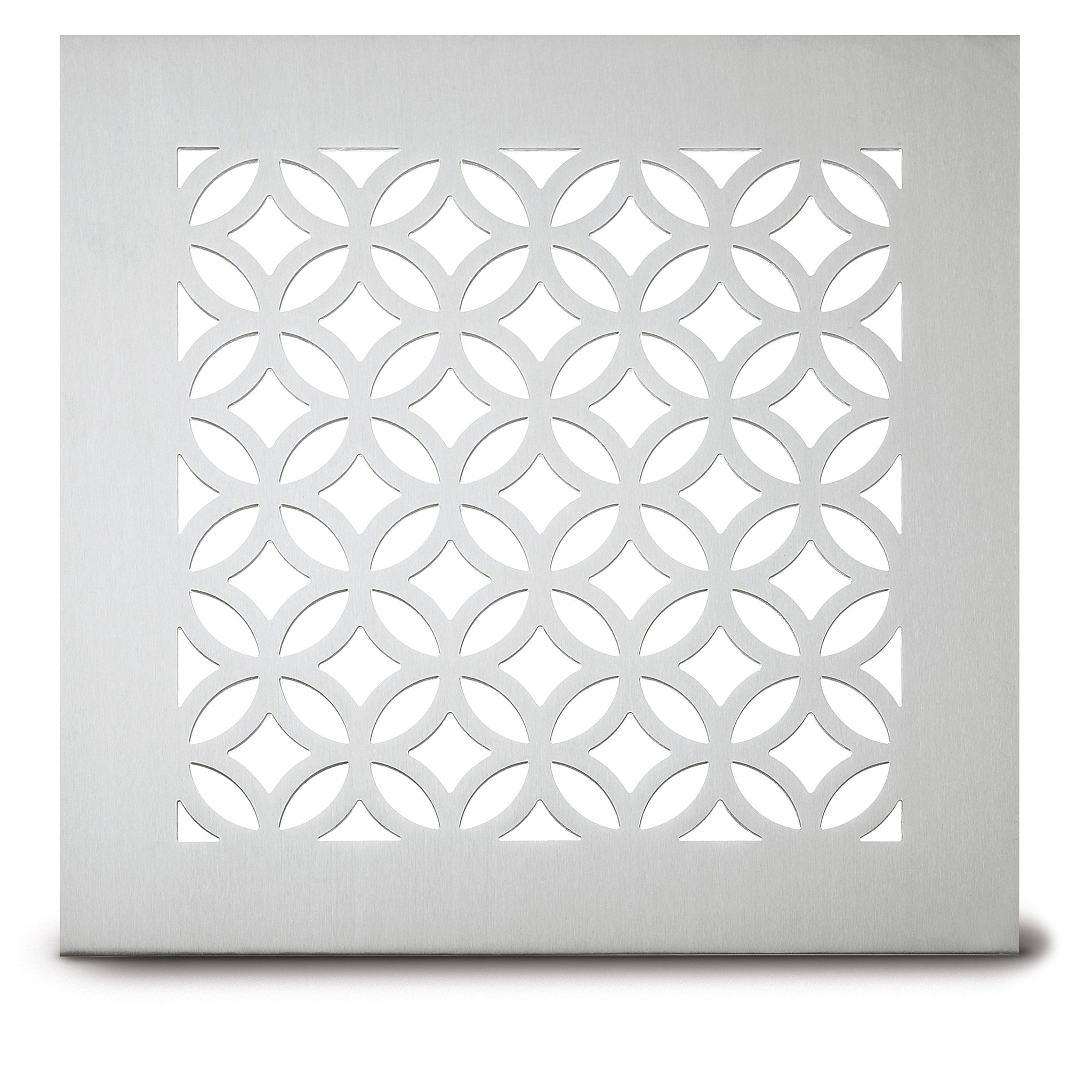

222 Circle Link Perforated Grille

Regular price $0.00 USD
Sale price $0.00 USD Regular price

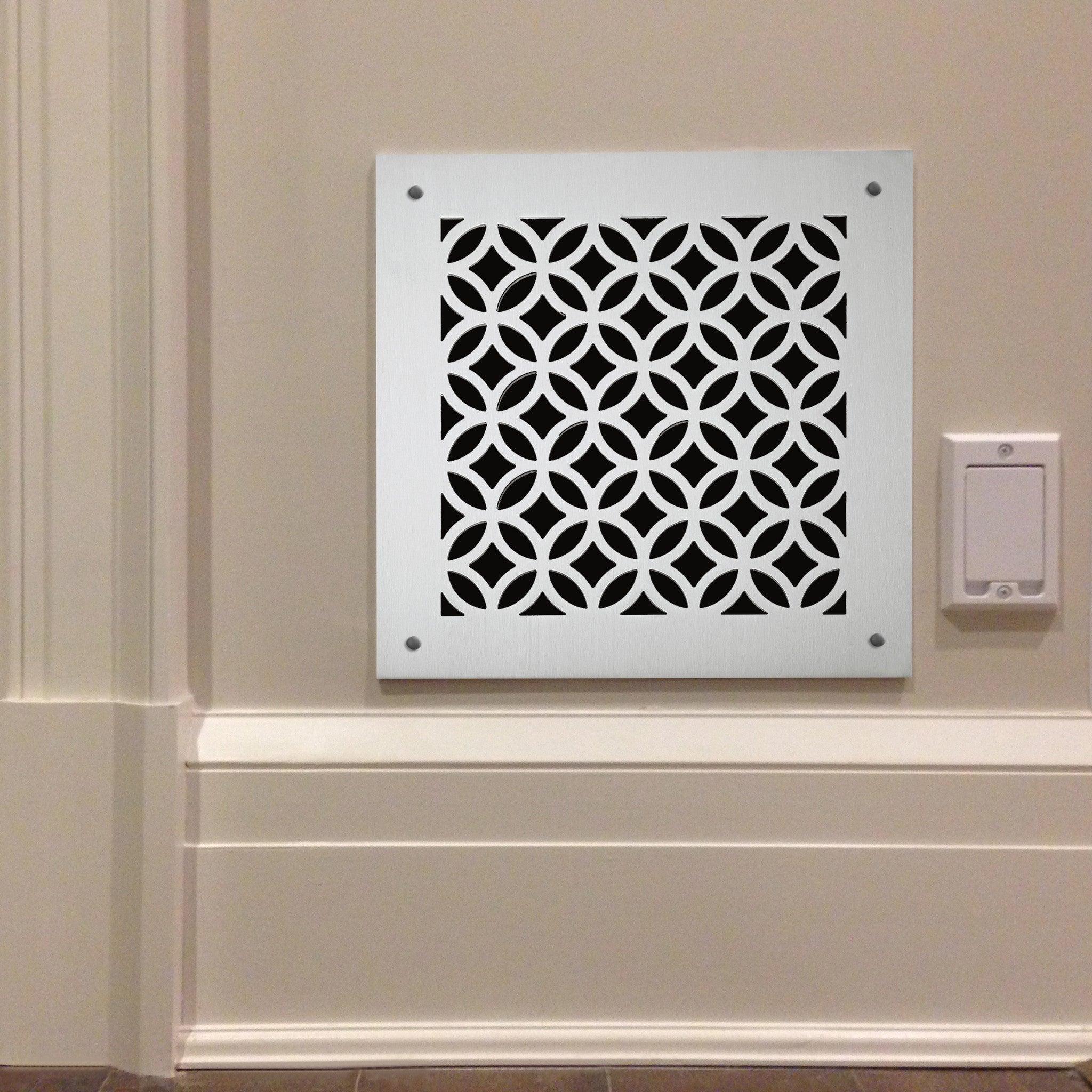

Combining modern and contemporary design with optimum air flow, the #222 Circle Link Perforated Grille features interlinked circle perforation patterns with diagonal diamond shapes inset. This stylish design is suitable for residential and commercial spaces, including new build construction.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern Dimensions:

  • 2” pattern - 65% open area
Register / Login to Access Cutsheets and CAD Details

MATERIAL

PUNCHED THICKNESS*

 (min-max)

FINISH

Aluminum

1/16” – 1/8”

Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors

Brass

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Bronze

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Stainless Steel

1/16” – 14 GA

Satin, Mirror Polish

Steel

1/16” – 1/8”

Raw, Primed, Powder Coating Colors

*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAILS

Resources: For Fastening + Mounting Methods - refer to "Perforated Grilles"
