208 Lattice Perforated Grille

Regular price $0.00 USD
Sale price $0.00 USD Regular price

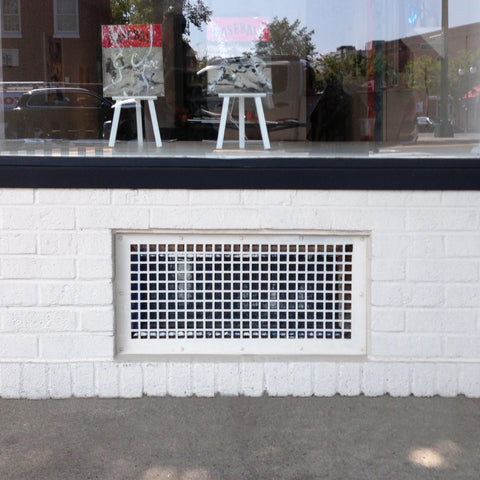

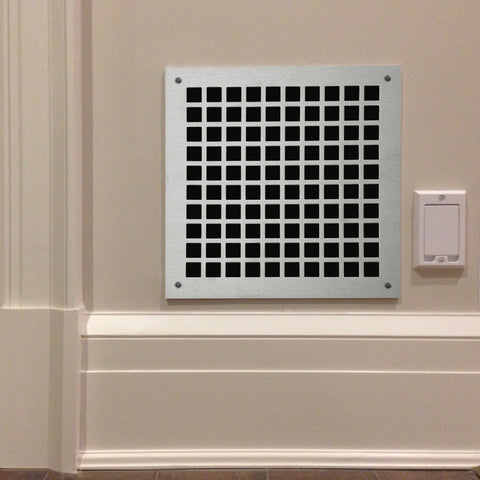

A simple and contemporary design, the #208 Lattice Perforated Grille is fabricated using post-consumer 94% recycled aluminum and has a brushed satin finish. This stock model is available in a wide range of industry standard sizes that will suit the desired air flow distribution needs in any residential or commercial application.

Pattern Dimensions:

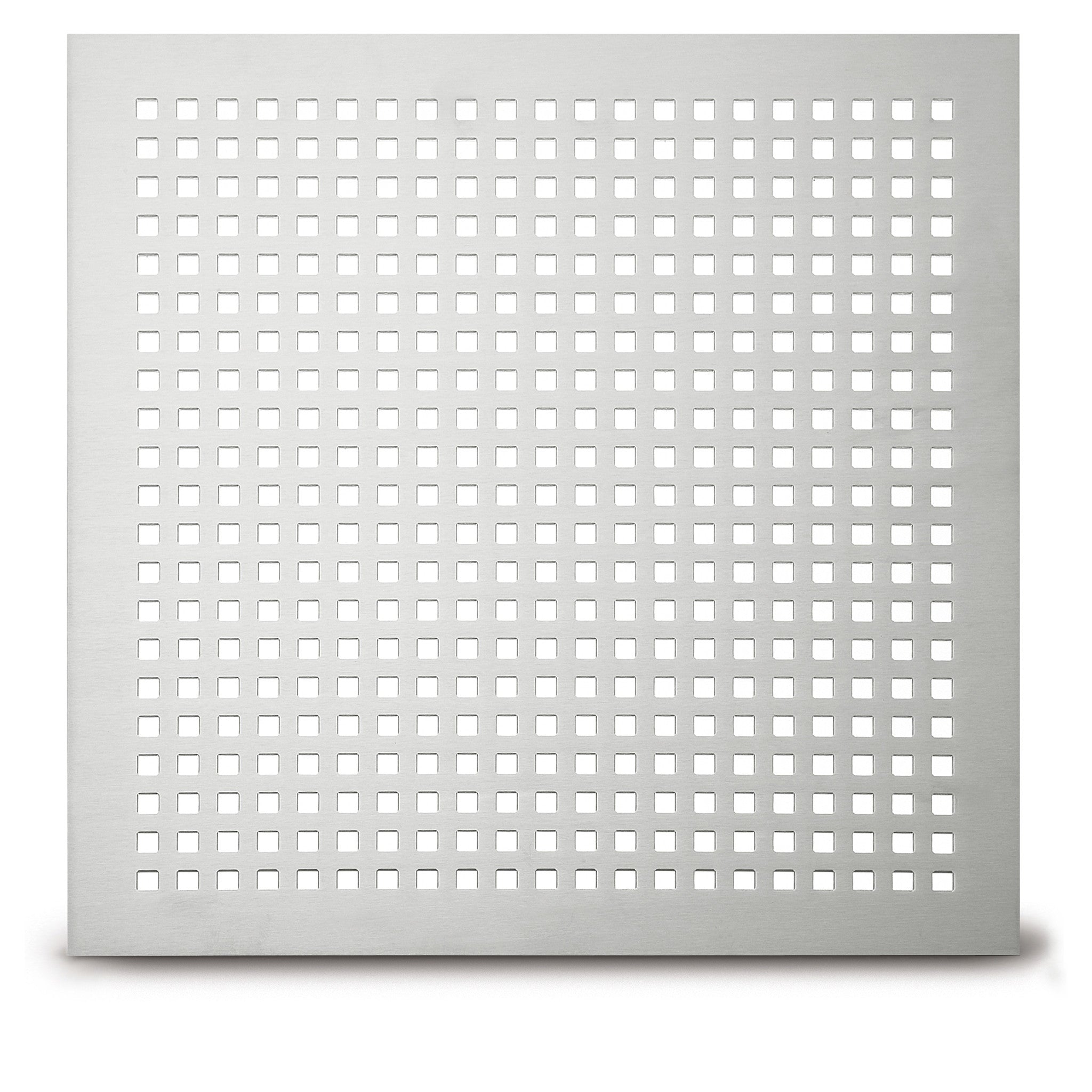

  • ¼” with ¼” bar - 25% open area

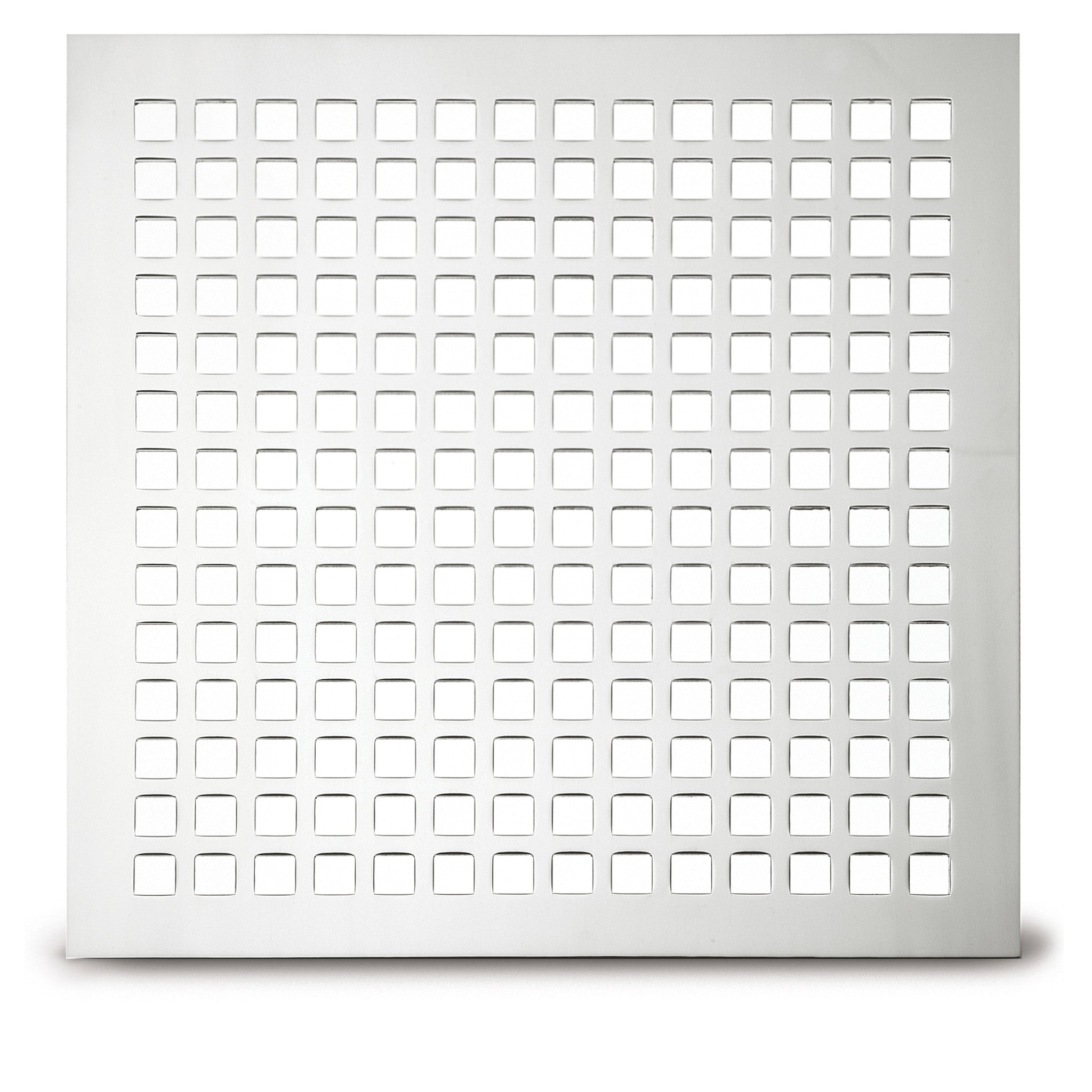

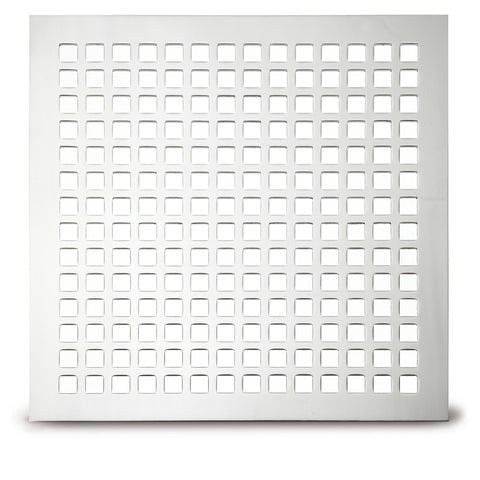

  • ½” with ¼” bar - 45% open area

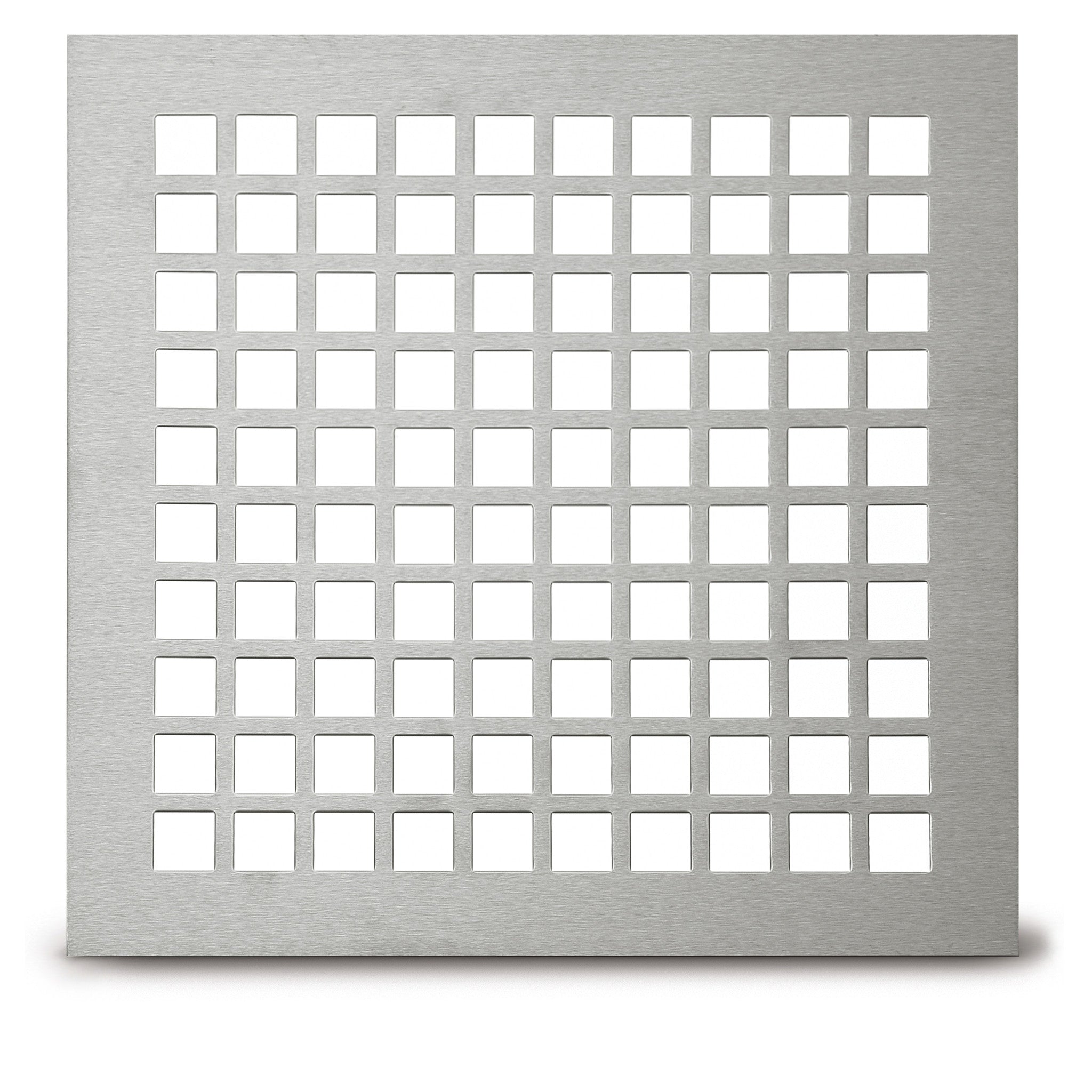

  • ¾” with ¼” bar - 56% open area

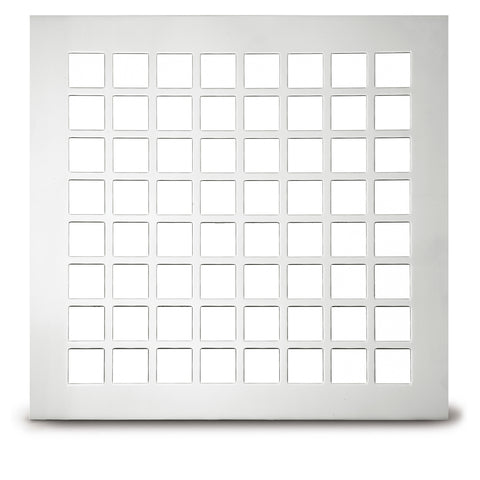

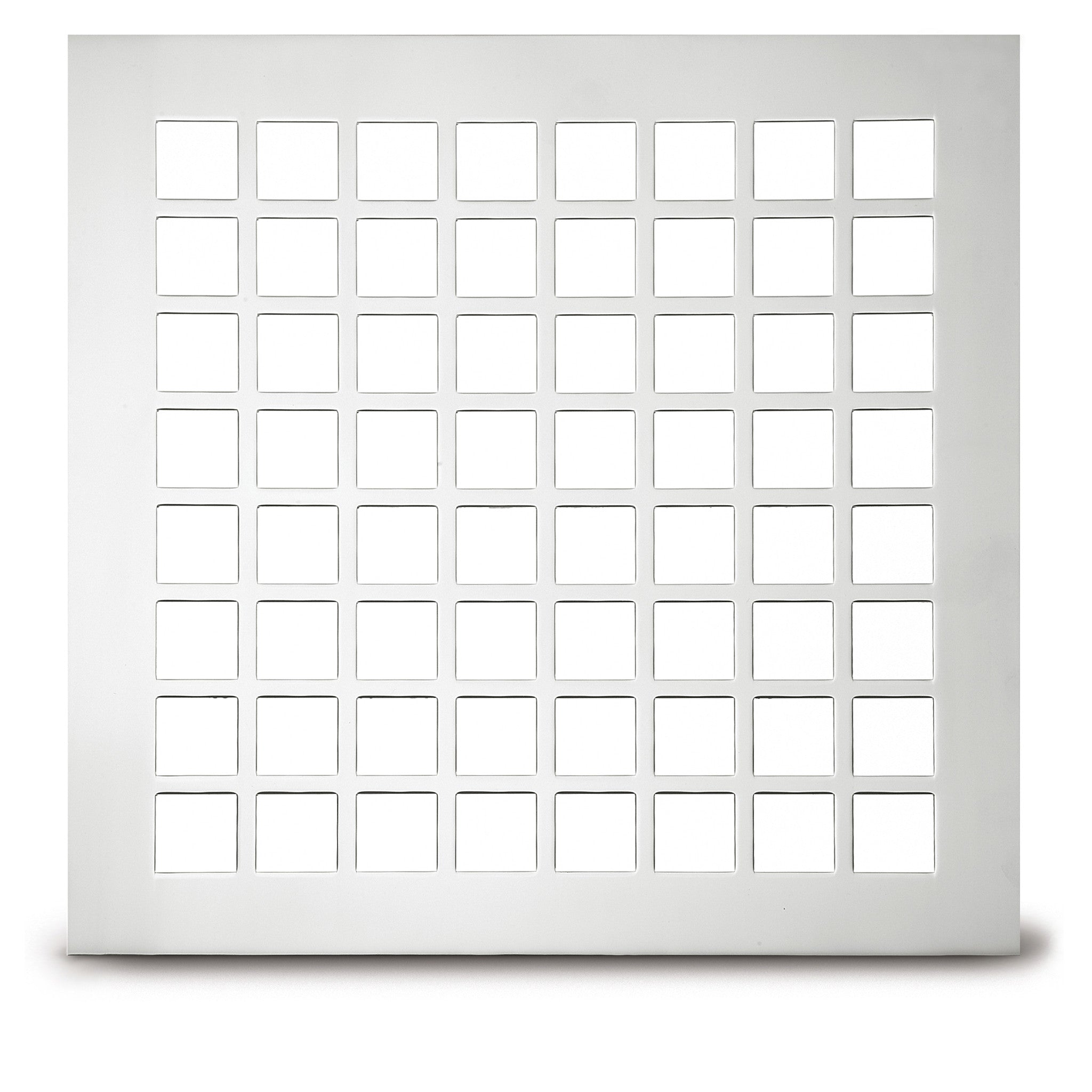

  • 1” with ¼”  bar - 64% open area

MATERIAL

PUNCHED THICKNESS*

 (min-max)

FINISH

Aluminum

1/16” – 1/8”

Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors

Brass

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Bronze

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Stainless Steel

1/16” – 14 GA

Satin, Mirror Polish

Steel

1/16” – 1/8”

Raw, Primed, Powder Coating & Colors

*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAILS

Register / Login to Access Cutsheets and CAD Details

Resources: For Fastening + Mounting Methods - refer to "Perforated Grilles"
