205 Diamond Perforated Grille

Regular price $0.00 USD
Sale price $0.00 USD Regular price

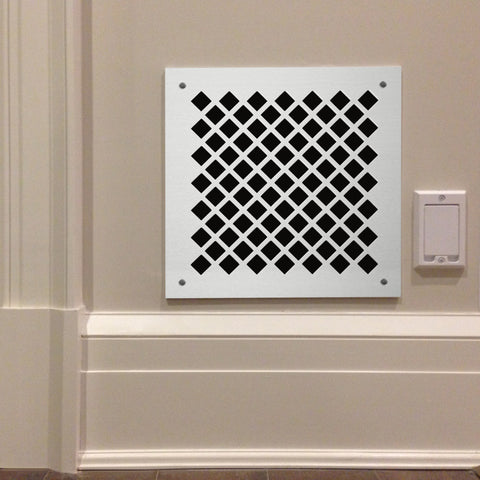

If you are looking for a modern contemporary diagonal design that has open area versatility for optimal air flow, the #205 Diamond Perforated Grille is the ideal grille for your residential or commercial project.

With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.

Pattern Dimensions:

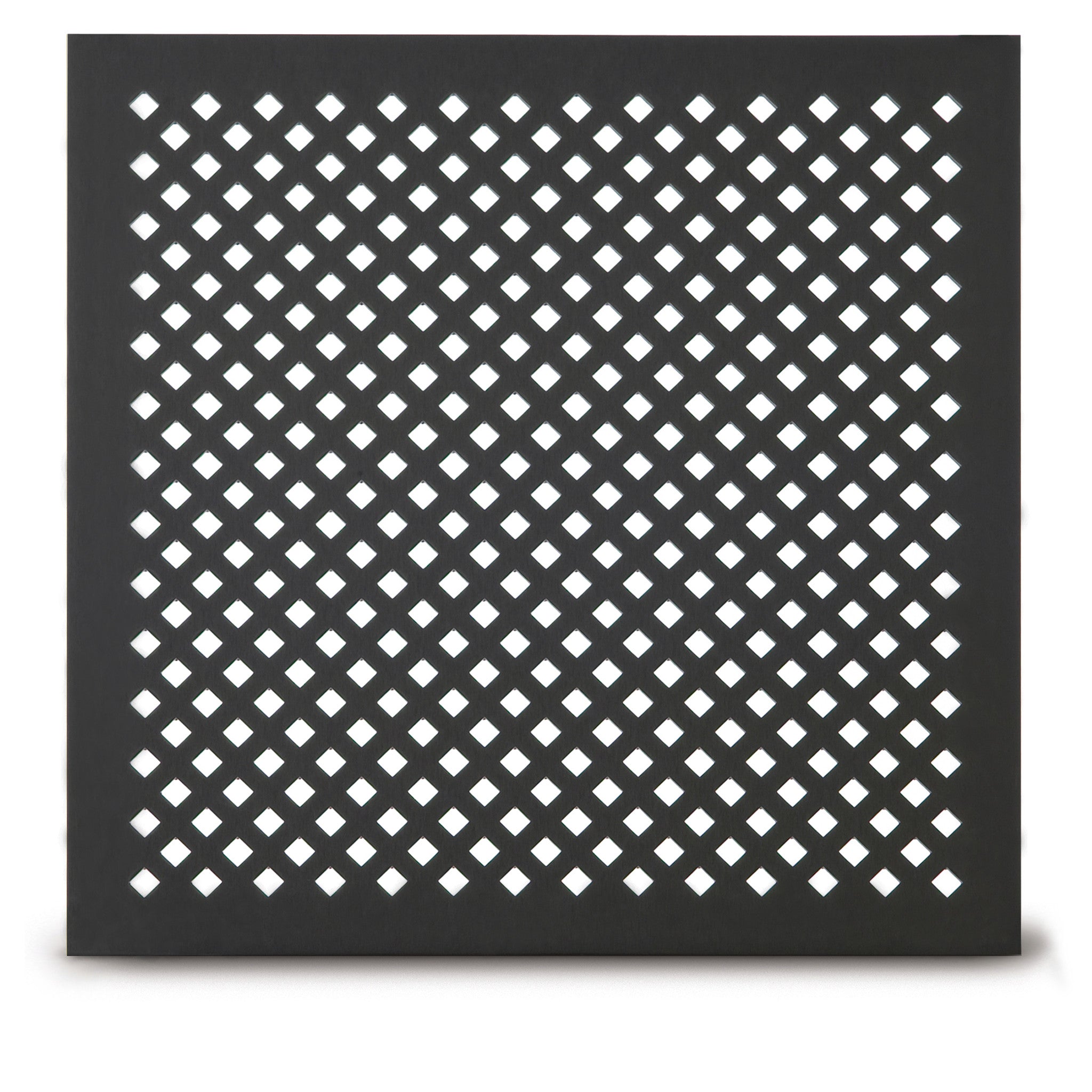

  • ¼” with ¼” bar - 25% open area

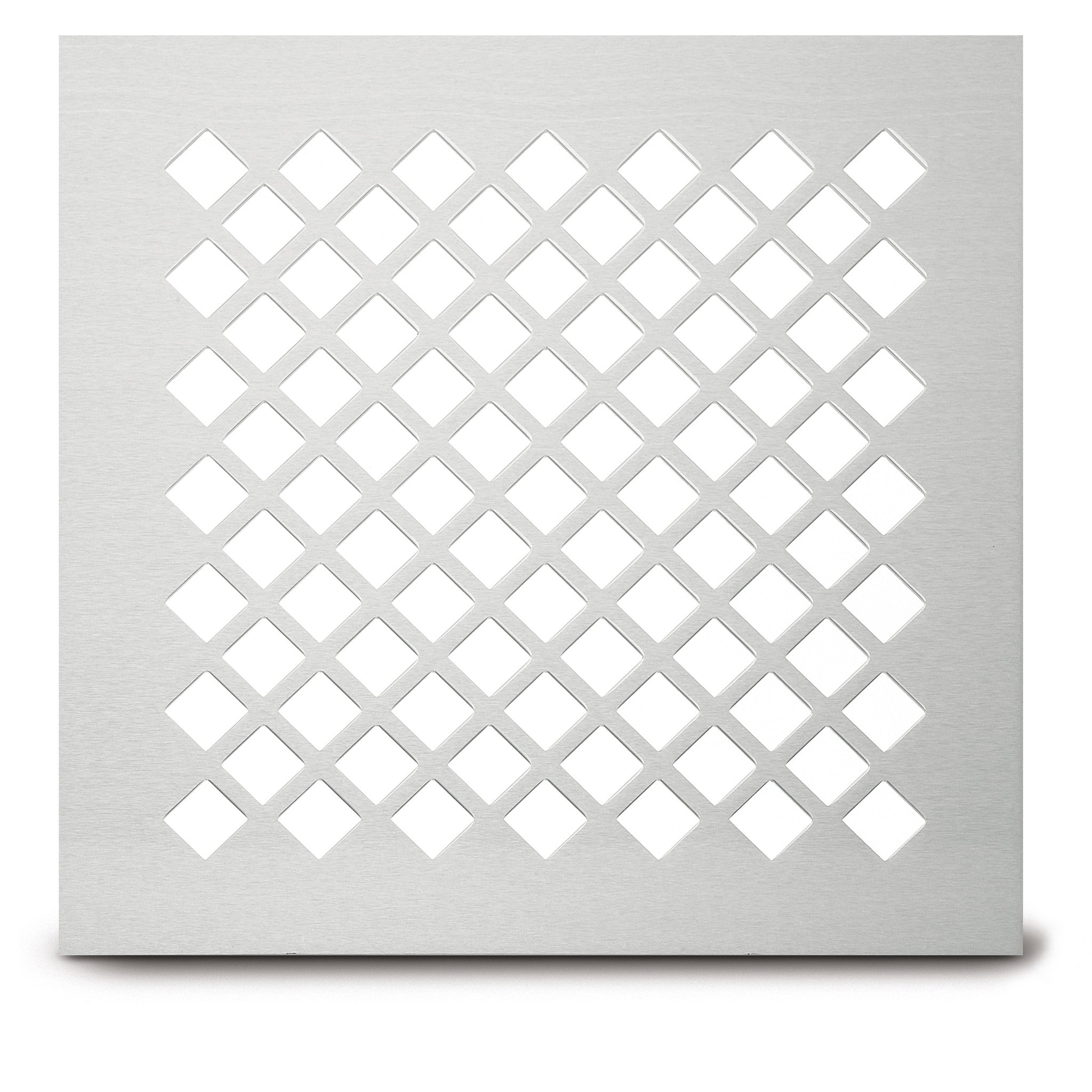

  • ½” with ¼” bar - 45% open area

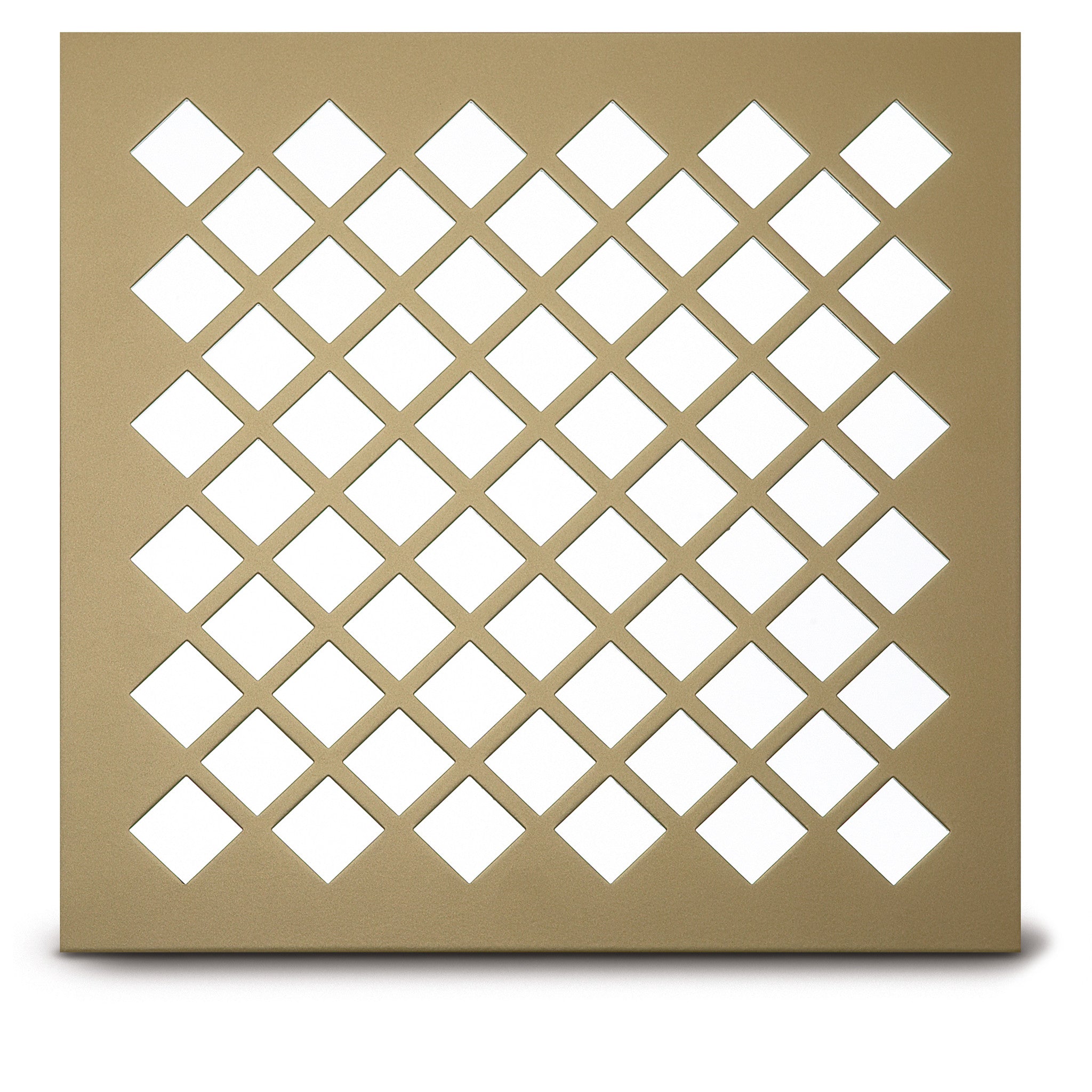

  • ¾” with ¼” bar - 56% open area

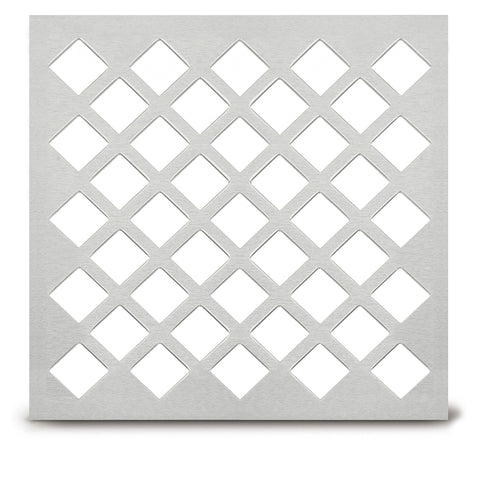

  • 1” with ¼” bar - 64% open area

MATERIAL

PUNCHED THICKNESS*

 (min-max)

FINISH

Aluminum

1/16” – 1/8”

Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors

Brass

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Bronze

1/16” – 1/8”

Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark

Stainless Steel

1/16” – 14 GA

Satin, Mirror Polish

Steel

1/16” – 1/8”

Raw, Primed, Powder Coating Colors

*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAILS

Register / Login to Access Cutsheets and CAD Details

Resources: For Fastening + Mounting Methods - refer to "Perforated Grilles"
